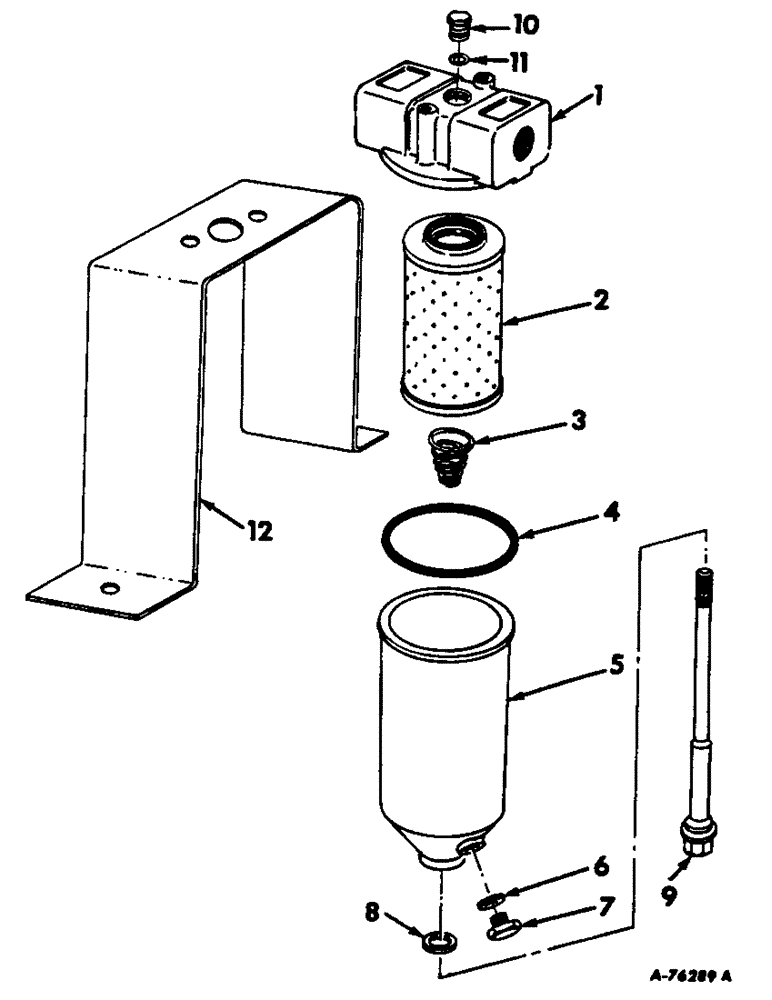

Запчасти Case IH 315 (F-26) - HYDRAULICS SYSTEM, OIL FILTER, FOR HYDROSTATIC GROUND DRIVE (07) - HYDRAULIC SYSTEM

156571C91

FILTER CARTRIDGE

FILTER ASSY, oil, For components see list of parts under details of oil filter assy, Consists of ref. nos. 1 thru 11

1шт.

1

VALVE AND BASE ASSY, Not serviced separately, Order filter assy 156571R91

1шт.

2

381256R91

ELEMENT

CARTRIDGE ASSY

1шт.

3

471633R1

SPRING

holddown

1шт.

4

381627R1

RUBBER WASHER

GASKET, base groove

1шт.

5

471634R1

BODY AND FITTING ASSY

1шт.

6

381618R1

COPPER WASHER

RING, gasket

1шт.

7

445078

PLUG

1шт.

8

381629R1

GASKET

1шт.

9

471632R1

BOLT, holddown

1шт.

10

9410359

PLUG

ASSY, 3/4 hex.

1шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

1шт.

12

156902C1

BRACE, oil filter support

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
