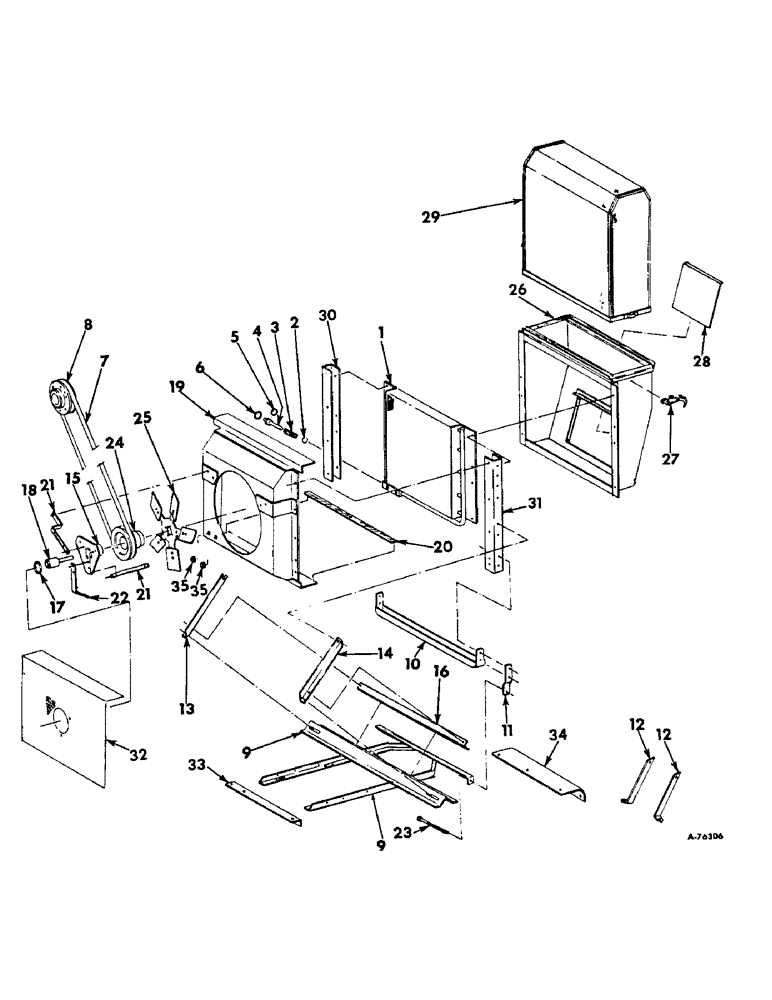

Запчасти Case IH 315 (F-24) - HYDRAULICS SYSTEM, OIL COOLER, FAN, FRAME, SCREEN AND SHROUD FOR HYDROSTATIC GROUND DRIVE (07) - HYDRAULIC SYSTEM

1

150947C91

COOLER ASSY, oil, Includes ref nos. 2, 3, 4, 5 and 6

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

3

324012R1

SPRING, check

1шт.

4

150647C91

PLUG ASSY

1шт.

5

298389R1

RING

O-RING, .614 x .070 x 1/16

1шт.

6

55163R1

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

7

150960C1

V-BELT,113.79" L

Oil Cooler Fan Drive 113.79" L

1шт.

8

150911C1

PULLEY, oil cooler fan drive

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

4шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

9

153606C91

FRAME ASSY, oil cooler support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga

8шт.

10

150928C91

SUPPORT ASSY, oil cooler

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

271501

SOCKET

NUT, C-Z hex

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

11

150930C1

STRAP, oil cooler tightener

1шт.

12

150931C1

STRIP, oil cooler support

2шт.

17447R1

BOLT

7/16 x 1-1/4 hex-hd mach

2шт.

271500

SOCKET

7/16 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

P010534

WASHER, 15/32 x 1-1/4 x 11 ga

2шт.

13

150932C1

ANGLE

oil cooler left tie

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

14

150933C1

ANGLE, oil cooler right tie

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

15

150936C91

HUB ASSY, oil cooler fan

1шт.

16

150935C1

ANGLE, oil cooler tie rail

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, oil cooler fan hub snap

1шт.

18

ST634

BEARING ASSY

BEARING, oil cooler fan hub ball

1шт.

19

150939C91

SHROUD ASSY, oil cooler fan

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

8шт.

362662R91

NUT

5/16-24 speed grip

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

20

387958R1

STRIP, sta-foam sealing

1шт.

21

150945C1

STRAP, oil cooler fan hub upper

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

5шт.

120376

NUT,5/16"-18, G5

5шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16 x 5/8 C-Z hex-hd cap

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

668569R1

WASHER

11/32 x 1-1/2 x 11 ga C-Z

4шт.

22

150946C1

STRIP, oil cooler fan hub lower

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

3шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16 x 5/8 C-Z hex-hd cap

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

668569R1

WASHER

11/32 x 1-1/2 x 11 ga C-Z

2шт.

23

150978C1

BOLT, oil cooler fan drive draw

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

3шт.

24

372724R1

PULLEY

oil cooler fan driven

1шт.

25

267450R91

BLADE ASSY, oil cooler fan, five blade, Optional for blade assy 371633R91

1шт.

25

371633R91

FAN

BLADE ASSY, oil cooler fan, five blade, Optional for blade assy 267450R91

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4 x 5/8 C-Z hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

26

318289R91

CHUTE ASSY, oil cooler fan, Includes ref. no. 27

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 C-Z hex-hd cap

8шт.

362662R91

NUT

5/16-24 speed grip

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

27

353443R91

LATCH ASSY.

LATCH ASSY, air chute

2шт.

113356

RIVET,Tr Hd, 3/16" x 3/8"

3/16 x 3/8 ov-hd tubular

4шт.

28

274733R1

DOOR, oil cooler fan chute

1шт.

29

274734R91

SCREEN ASSY, oil cooler fan chute

1шт.

30

318284R2

CHANNEL, oil cooler fan chute left

1шт.

31

318285R3

CHANNEL, oil cooler fan chute right

1шт.

32

151002C1

SIEVE, oil cooler fan drive shield

1шт.

33

156008C1

ANGLE, support frame reinforcement

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

34

159828C1

ANGLE, hood

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

35

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

7/8 rubber plain

2шт.
