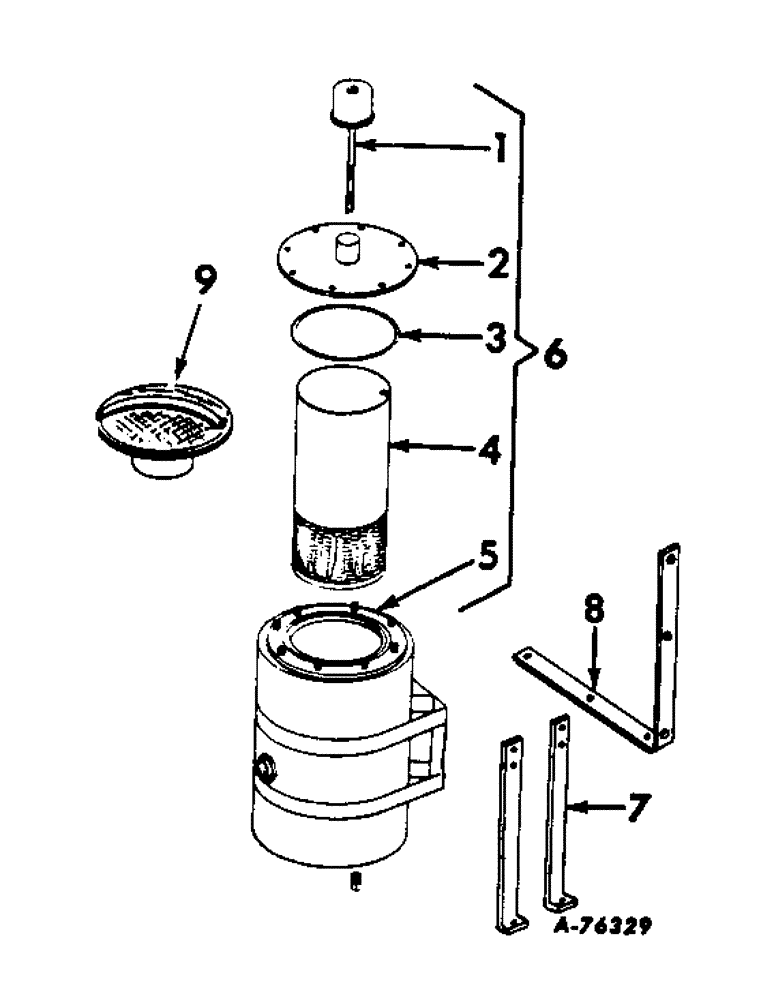

Запчасти Case IH 315 (F-23) - HYDRAULICS SYSTEM, HYDRAULIC RESERVOIR, BELT DRIVE TRANSMISSION (07) - HYDRAULIC SYSTEM

1

567521R91

CAP

BREATHER CAP AND DIPSTICK

1шт.

2

COVER ASSY, Not serviced separately order reservoir assy 156395C91

1шт.

3

588375R1

RING

O-RING

1шт.

4

386120R91

FILTER CARTRIDGE

CARTRIDGE ASSY

1шт.

5

BODY ASSY, Not serviced separately order reservoir assy 156395C91

1шт.

6

156395C91

RESERVOIR

ASSY, hydraulic oil

1шт.

20617R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

SCREW, 5/16 x 1 C-Z cap

2шт.

120376

NUT,5/16"-18, G5

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

8шт.

7

154321C1

BRACE, hyd oil reservoir support

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

8

154322C1

BRACE, hyd oil reservoir support

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

9

386121R92

VALVE

ASSY, reservoir

1шт.
