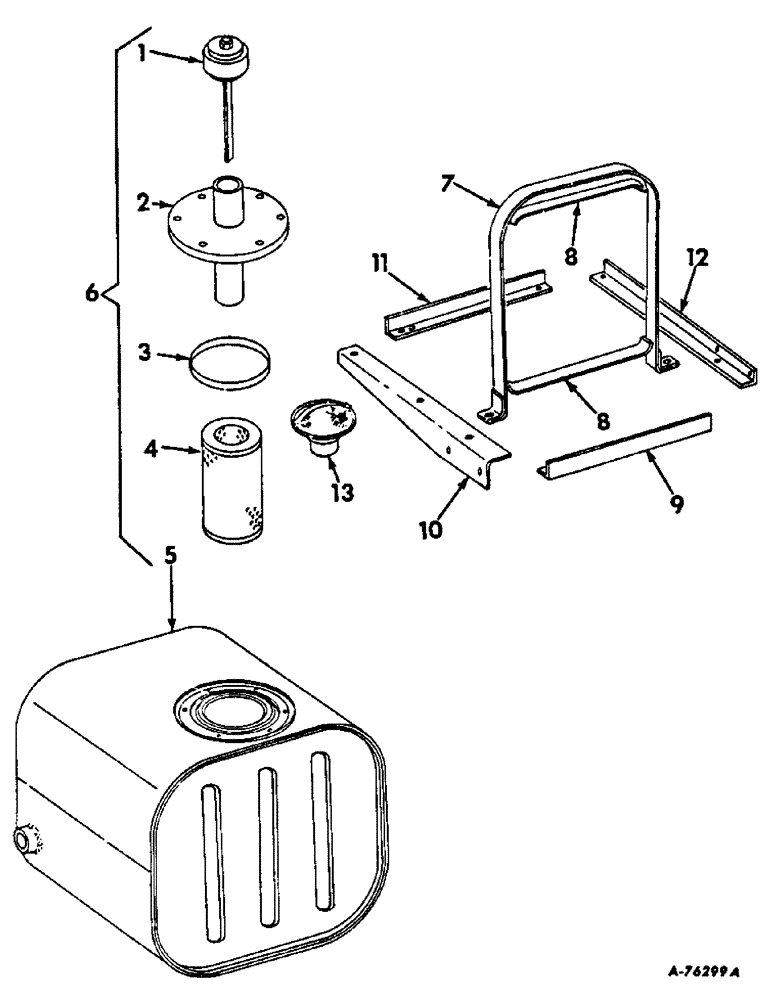

Запчасти Case IH 315 (F-22) - HYDRAULICS SYSTEM, HYDRAULIC RESERVOIR, FOR HYDROSTATIC GROUND DRIVE (07) - HYDRAULIC SYSTEM

1

159857C91

BREATHER CAP AND DIPSTICK

1шт.

2

163647C91

COVER ASSY

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

3

22760R1

O-RING,6.725" ID x 7.275" OD x 0.275"

seal for hyd reservoir

1шт.

4

386120R91

FILTER CARTRIDGE

CARTRIDGE ASSY, filter

1шт.

5

BODY ASSY, Not serviced separately order reservoir assy 158734C92

1шт.

6

158734C92

RESERVOIR ASSY, hydraulic oil

1шт.

7

150747C1

STRAP, reservoir hold down

2шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

PAD, reservoir hold down strap, Order cotton webbing 1/8 x 1 x 17-1/2 in. long

2шт.

9

156917C1

ANGLE, reservoir tie RH

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

156914C1

ANGLE, reservoir support LH

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

156916C1

ANGLE, reservoir tie LH

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

156915C1

ANGLE, reservoir support RH

1шт.

19420R1

BOLT, 7/16 x 3/4 C-Z hex-hd mach

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

13

386121R92

VALVE

ASSY, hydraulic reservoir

1шт.
