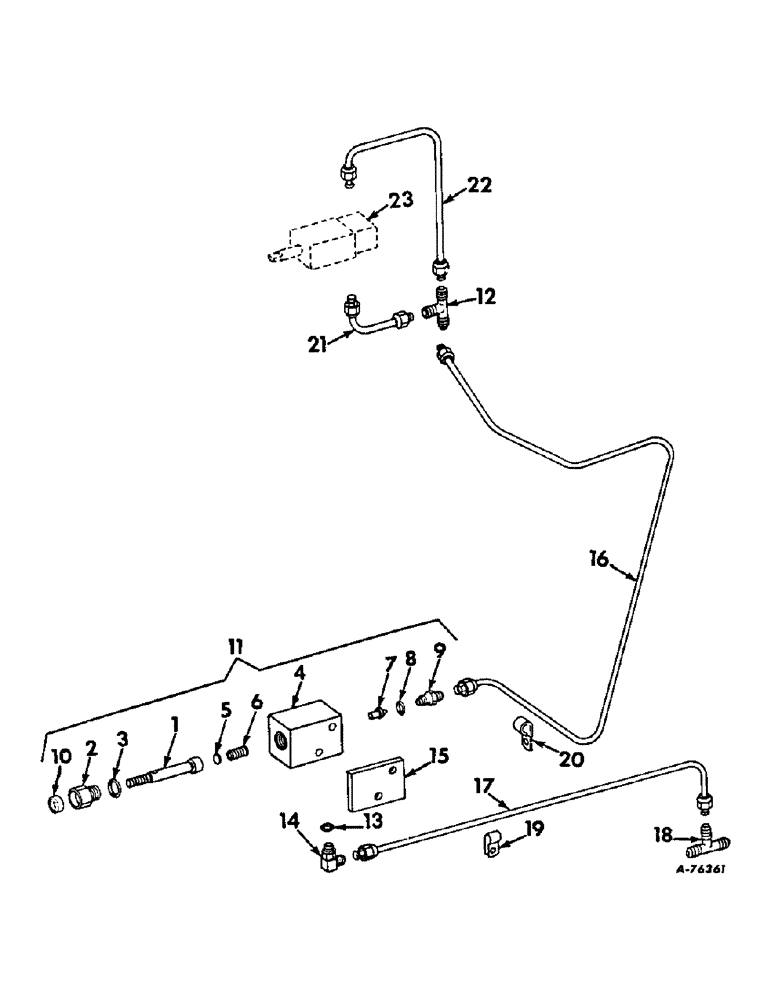

Запчасти Case IH 315 (F-09) - HYDRAULICS SYSTEM, FOOT-N-INCH HYDRAULIC PARTS (07) - HYDRAULIC SYSTEM

1

398708R1

STOP

valve

1шт.

2

398707R11

GUIDE

ASSY, valve spring stop

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube guide assy

1шт.

4

398706R1

BODY, valve

1шт.

5

401297R91

PACKAGE, relief valve shim, Consists of

1шт.

SHIM .042

1шт.

SHIM .020

1шт.

SHIM .007

1шт.

SHIM .005

1шт.

6

403434R1

SPRING

valve

1шт.

7

398710R1

VALVE POPPET

VALVE, poppet

1шт.

8

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Valve seat

1шт.

9

398709R1

SEAT

poppet valve

1шт.

10

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil

1шт.

11

403347R91

LOCK VALVE

VALVE ASSY, foot-n-inch, Consists of ref. nos. 1 thur 10

1шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

9402979

TEE,7/16"-20, 37 Degree

37 degree hyd flared for 1/4 tube

1шт.

13

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.

14

164596C1

ELBOW

1шт.

15

164532C1

STRIP, foot-n-inch control valve mounting

1шт.

16

164594C91

TUBE ASSY, foot-n-inch control

1шт.

17

164595C91

TUBE ASSY, foot-n-inch return

1шт.

18

9411130

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Run

9/16 37 degree hyd flared tube adj str std 90 degree

1шт.

19

573674R1

CLIP

foot-n-inch control upper tube

1шт.

20

589980R2

CLIP

foot-n-inch control tube

1шт.

21

164406C92

TUBE

ASSY, foot-n-inch valve lower front

1шт.

22

164407C92

TUBE

ASSY, foot-n-inch valve lower rear

1шт.

23

MOTOR ASSY, cover drive, Refer to hydraulic drive pump for listing

1шт.
