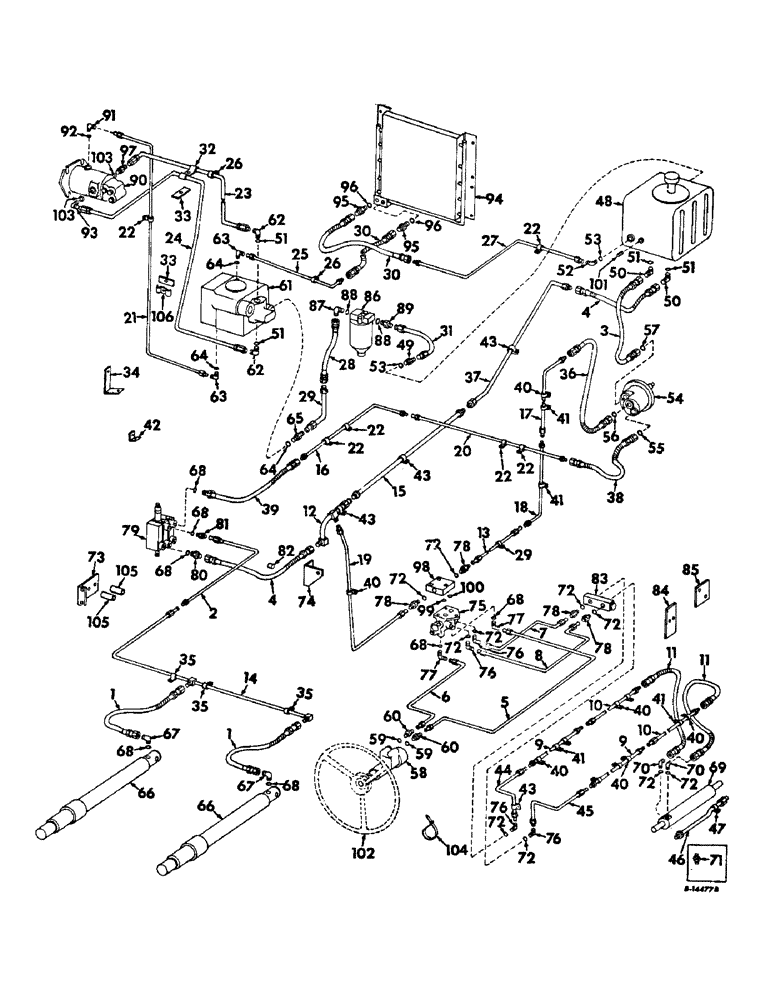

Запчасти Case IH 315 (F-05) - HYDRAULICS SYSTEM, HYDRAULIC SYSTEM, HYDROSTATIC DRIVE (07) - HYDRAULIC SYSTEM

1

156339C91

HOSE

ASSY, platform lift cyl

2шт.

2

153408C91

TUBE ASSY, platform lift upper, Serial no. 700 and below

1шт.

2

164448C91

TUBE ASSY, platform lift upper, Serial no. 701 and above

1шт.

3

628438R92

HOSE ASSY, lift pump suction

1шт.

4

63301R91

HOSE ASSY, Serial Range: valve-reservoir

2шт.

5

155748C91

TUBE ASSY, steering pump to valve LH

1шт.

6

155749C91

TUBE ASSY, steering pump to valve RH

1шт.

7

153396C91

TUBE ASSY, steering valve to lock LH

1шт.

8

153395C91

TUBE ASSY, steering valve to lock RH

1шт.

9

153399C91

TUBE ASSY, steering valve to cyl center

2шт.

10

153397C91

TUBE ASSY, steering valve to cyl rear, Serial no. 700 and below

2шт.

10

163652C91

TUBE ASSY, steering valve to cylinder, w/narrow guide wheel axle, Serial no. 701 and above

1шт.

10

156258C91

TUBE ASSY, steering valve to cyl rear, w/wide guide wheel axle

2шт.

11

632455R91

HOSE

ASSY, steering cyl

2шт.

12

153393C91

TUBE ASSY, return front, Serial no. 700 and below

1шт.

12

164447C91

TUBE ASSY, return front, Serial no. 701 and above

1шт.

13

153394C91

TUBE ASSY, hyd valve block pressure

1шт.

14

153398C91

TUBE ASSY, platform lift lower

1шт.

15

153400C91

TUBE ASSY, return center

1шт.

16

153401C91

TUBE ASSY, platform lift pressure front

1шт.

17

153402C91

TUBE ASSY, rear pump to hyd steering block, Serial no., Serial Range: 501-2297

1шт.

17

168967C1

TUBE ASSY, rear pump to hydraulic steering block, Serial no. 2298 and above

1шт.

18

153403C91

TUBE ASSY, steering pressure center

1шт.

19

153404C91

TUBE ASSY, steering return, Serial no. 700 and below

1шт.

19

164449C91

TUBE ASSY, steering return, Serial no. 701 and above

1шт.

20

153407C91

TUBE ASSY, platform lift pressure rear

1шт.

21

158732C91

TUBE ASSY, ground drive motor to ground drive pump bleed

1шт.

22

567895R2

CLIP

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

153649C91

TUBE ASSY, ground drive forward pressure

1шт.

24

153648C91

TUBE ASSY, ground drive rearward pressure

1шт.

25

158731C91

TUBE ASSY, ground drive pump to oil cooler hose

1шт.

26

587503R1

CLIP

1шт.

27

158730C91

TUBE ASSY, oil cooler, Serial Range: hose-reservoir

1шт.

28

150785C91

HOSE ASSY, filter to ground drive pump tube, 19 in

1шт.

29

158727C91

TUBE ASSY, filter, Serial Range: hose-pump

1шт.

30

155225C91

HOSE ASSY.

HOSE ASSY, oil cooler, 29 in

2шт.

31

158726C91

TUBE ASSY, Serial Range: reservoir-filter

1шт.

32

158578C1

CLAMP, ground drive pressure tubes

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 C-Z hex-hd mach

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

33

157679C1

SEAL, clamp

1шт.

33

157783C1

SEAL, strip

1шт.

34

161107C1

ANGLE, hyd tube support

1шт.

35

587501R2

CLAMP

CLIP, tube

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

36

156255C91

HOSE ASSY, steering pressure

1шт.

37

158729C91

TUBE ASSY, return rear

1шт.

38

468880R91

HOSE ASSY, platform pressure upper

1шт.

39

631163R91

HOSE ASSY.

HOSE ASSY, platform pressure lower

1шт.

40

589980R2

CLIP

tube

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

41

935765R1

CLAMP, tube

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

42

564563R1

BRACKET

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 3/8 x1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

43

573099R2

CLIP

tube

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

155441C91

TUBE ASSY, steering lock to cyl upper LH

1шт.

45

155442C91

TUBE ASSY, steering lock to cyl upper RH

1шт.

46

159488C91

TUBE ASSY, steering cyl, For use w/cyl 397689R91, w/wide guide wheel axle

1шт.

47

702093C1

CABLE TIE

CLAMP, steering cyl tube, For use w/cyl 397689R91, w/wide guide wheel axle

1шт.

48

RESERVOIR ASSY, hydroulic oil, See list of parts under details of hydraulic oil reservoir

1шт.

49

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 1-1/16-12 37 degree hyd flared

1шт.

50

150776C91

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1-1/16-12 and 1-5/16-12 37 degree hyd flare tube 90 degree

2шт.

51

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 in. OD tube

4шт.

52

633460R91

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

cooler tube

1шт.

53

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 0D tube

2шт.

54

PUMP ASSY, hydraulic lift, See list of parts under details of hydraulic pump

1шт.

55

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, in hyd pump valve pressure port

1шт.

56

264839R1

O-RING, 3/8 OD tube

1шт.

57

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

58

PUMP ASSY, steering, See list of parts under detail of steering pump

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

59

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

60

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4 37 degree hyd flared tube

2шт.

61

PUMP ASSY, ground drive, For use w/wide guide wheel axle, For components see list of detail parts under ground drive pump

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8 x 2-1/4 C-Z hex-hd cap

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

62

595408R1

90 ELBOW

1-5/16-12 special, for use w/wide guide wheel axle

2шт.

63

7410978

ELBOW, 7/8-14, 90 degree, For use w/wide guide wheel axle

2шт.

64

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, For use w/wide guide wheel axle

3шт.

65

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 1-1/16-12 x 7/8-14, 37 degree hyd flared tube, For use w/wide guide wheel axle

1шт.

66

CYLINDER ASSY, platform lift, See list of parts under details of platform lift cylinder

2шт.

67

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 degree hyd flared tube 90 degree

2шт.

68

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

6шт.

69

CYLINDER ASSY, steering, See list of parts under details of steering cylinder, Optional for 654631R91 cyl, Requires 159488C91 steering cyl tube and 702093C1 stereing cyl tube clamp for use w/wide guide wheel axle

1шт.

69

CYLINDER ASSY, steering, See list of parts under details of steering cylinder, Optional for 397689R91 cyl

1шт.

70

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 degree hyd flared tube

2шт.

71

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 degree hyd flared tube, narrow guide wheel axle

1шт.

72

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

10шт.

73

152750C1

SUPPORT, hydraulic valve LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

74

159286C1

ANGLE, hyd valve RH support, Serial no. 700 and below

1шт.

74

164418C1

SUPPORT, hyd valve RH, Serial no. 701 and above

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8 x 5/8 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

75

VALVE ASSY, steering, See list of parts under details of steering valve

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

76

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 degree hyd flared tube

4шт.

77

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 90 degree

2шт.

78

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 degree hyd flared tube

2шт.

79

VALVE ASSY, hydraulic control, For components see list of detail parts under hydraulic control valve

1шт.

80

587577R1

CONNECTION,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, return tube, w/wide guide wheel

1шт.

81

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 degree hyd flared tube platform lift, w/wide guide wheel axle

1шт.

82

607706R1

SPACER,3/8" Pipe x 1 5/8"

platform lift valve RH support, w/wide guide wheel axle

1шт.

83

VALVE ASSY, steering check, For components see list of detail parts under hyd steering check valve

1шт.

84

161148C1

STRAP, steering hyd check valve, For use w/wide guide wheel axle

1шт.

85

161149C1

STRAP, steering valve, For use w/wide guide wheel axle

1шт.

86

156571C91

FILTER CARTRIDGE

FILTER ASSY, oil, See list of parts under details of oil filter

1шт.

87

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 90 degree

1шт.

88

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

2шт.

89

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 1-1/16-12 inlet port

1шт.

90

MOTOR ASSY, ground drive, For use w/foot-n-inch control, See list pf parts under detail of ground drive motor

1шт.

90

MOTOR ASSY, ground drive, Not for use w/foot-n-inch control

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2 x 1-3/4 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

16038R1

WASHER

17/32 x 1 x 11 ga

4шт.

91

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 90 degree

1шт.

92

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

93

595408R1

90 ELBOW

ASSY, 1-15/16-12 special

1шт.

94

150947C91

COOLER ASSY, oil

1шт.

95

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 degree hyd flared tube

2шт.

96

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

97

163915C1

FITTING

CONNECTOR

1шт.

98

633383R1

BLOCK, steering valve mounting

1шт.

99

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

100

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

1шт.

101

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 auto-sq-hd pipe

1шт.

102

WHEEL, steering, refer to steering cover and wheel unit for listing

1шт.

103

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

2шт.

104

702093C1

CABLE TIE

CLAMP, Serial no. 701 and above

1шт.

105

K11064

SPACER,3/8" Pipe x 1 1/4"

valve support LH, Serial no. 701 and above

1шт.

106

157678C1

CLAMP

bleed and rear pressure tubes

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

3/8 C-Z hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
