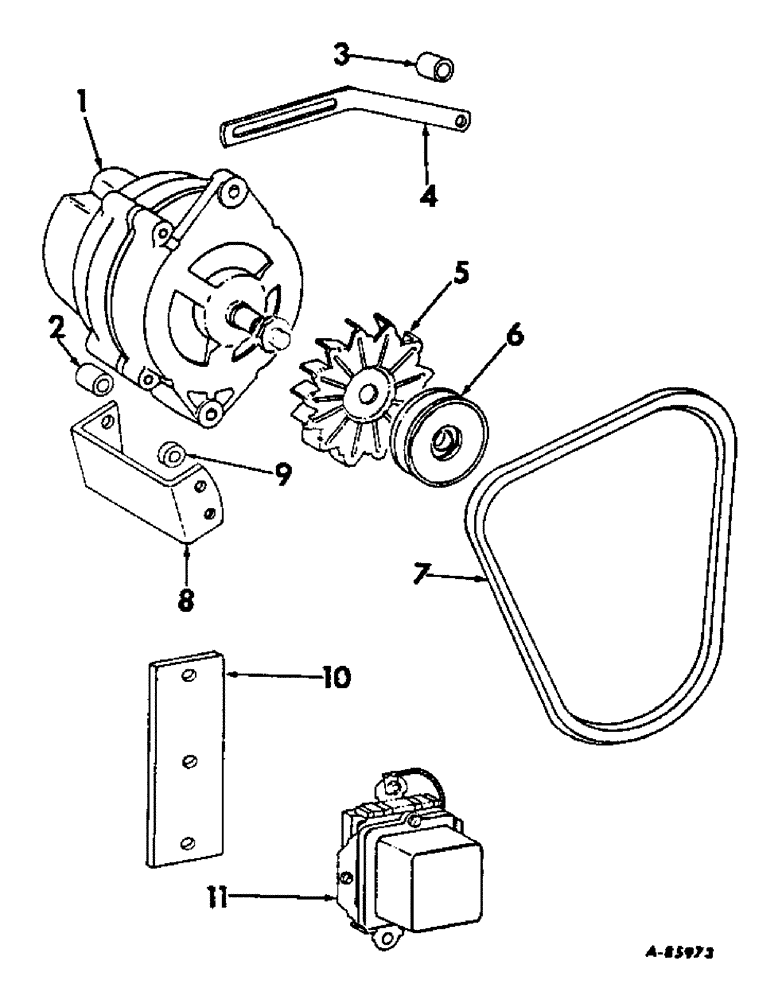

Запчасти Case IH 315 (G-09) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR, VOLTAGE REGULATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

1100791

GENERATOR

ALTERNATOR GENERATOR ASSY, 397091R91, For components see list of parts under details of alternator generator

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex. mach screw

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

557264R1

WASHER

SPACER, alternator-generator

1шт.

2

384993R1

SPACER

SPACER, alternator generator mounting bracket, long

1шт.

3

SPACER, alternator brace, Refer to Eng-2 parts catalog

1шт.

4

BRACE, alternator generator, Refer to Eng-2 parts catalog

1шт.

4

371107R2

SUPPORT

BRACE, alternator generator, Serial no. & above

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

1шт.

259207R1

WASHER

WASHER, 3/8 med lock

1шт.

5

1940994

FAN

FAN, alternator generator, 221425R1

1шт.

6

1961291

PULLEY

PULLEY, alternator generator, 393821R1

1шт.

7

393415R1

BELT

BELT, Alternator & water pump drive

1шт.

8

BRACKET, alternator generator mounting, Refer to Eng-2 parts catalog

1шт.

9

SPACER, alternator generator mounting bracket, short, Refer to Eng-2 parts catalog

1шт.

10

393841R1

SPARE PART BRACKET, voltage regulator mounting

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16-18 whiz lock

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

BOLT, 5/16 x 1 C-Z hex-hd cap

1шт.

173127

SPARE PART WASHER, 5/16 int-ext tooth lock Ext-Int Tooth, 5/16"

1шт.

11

1119513

VOLTAGE REGULATOR

REGULATOR ASSY, voltage, 336410R91, Composed of

1шт.

1958151

COVER

1шт.

1962733

SCREW

SCREW, cover

2шт.

1119507

GOVERNOR

REGULATOR

1шт.

1962629

BRACKET

SHOCK BRACKET PACKAGE

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, 1/4-20 whiz lock

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.
