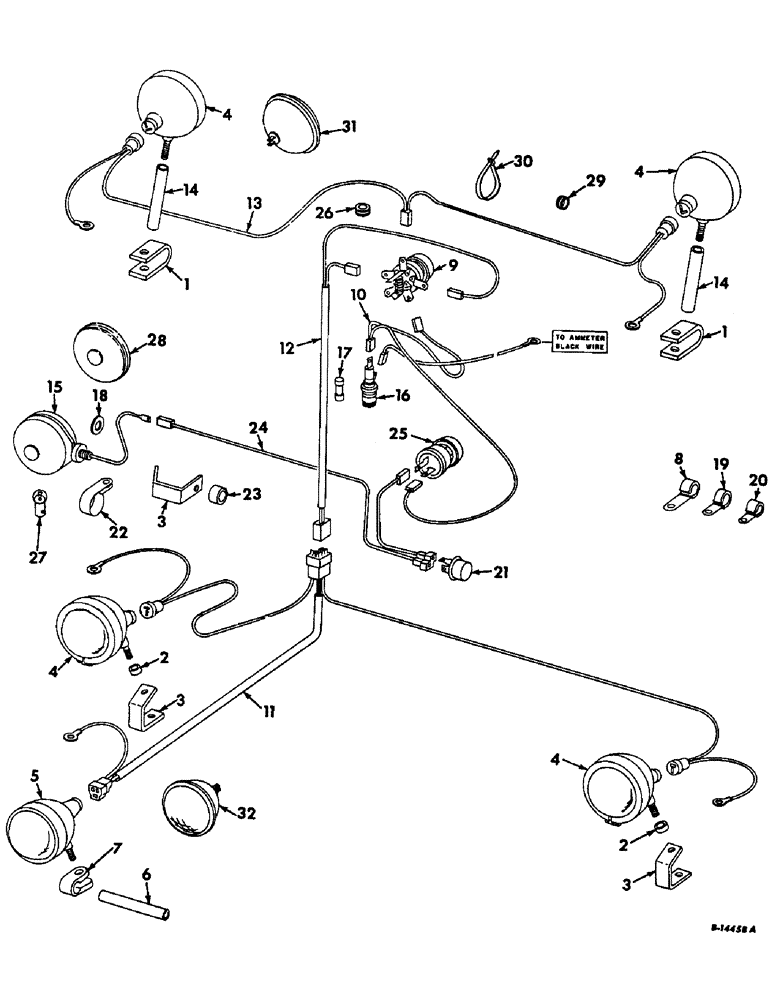

Запчасти Case IH 315 (G-06) - ELECTRICAL SYSTEM, LIGHTING DIAGRAM (06) - ELECTRICAL SYSTEMS

1

561916R1

CLAMP, head light mounting, Not operators cab

2шт.

1

350920R1

CLAMP

headlight w/operators cab

2шт.

2

49069D

SPACER

grain hopper light

2шт.

3

561915R1

BRACKET

light

3шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

3шт.

475954R1

NUT

3/8 C-Z whiz flange lock

3шт.

4

376849R91

HEADLIGHT

LIGHT ASSY, head and grain hopper

4шт.

5

377102R91

NO LONGER SERVICED

LIGHT ASSY, tail

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 C-Z hex. jam

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

6

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

PIPE, tail light pivot

1шт.

18790R1

BOLT

3/8 x 5-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

7

350920R1

CLAMP

tail light, Not operators cab

1шт.

8

362123R1

CLIP

cable

10шт.

9

376851R91

LIGHT SWITCH

SWITCH ASSY

1шт.

10

156340C91

CABLE ASSY, fuse holder to flasher switch and light switch

1шт.

11

155924C91

HARNESS ASSY, tail & grain hopper light

1шт.

12

155925C91

HARNESS ASSY, light front

1шт.

13

155926C92

CABLE ASSY, headlight, Not operators cab

1шт.

13

155927C92

CABLE ASSY, headlight, w/operators cab

1шт.

14

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

PIPE, head light pivot, w/operators cab

2шт.

18790R1

BOLT

3/8 x 5-1/2 C-Z hex-hd mach

2шт.

20584R1

BOLT, 3/8 x 6-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

15

394129R91

LIGHT

ASSY, flasher

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

16

376852R91

HOUSING

ASSY, fuse

1шт.

17

223-31

FUSE,10 Amp, Type 3AG

30-amp

1шт.

18

394262R1

WASHER

flasher light

1шт.

19

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

20

362127R1

CLIP

cable

3шт.

21

394132R91

FLASHER UNIT

FLASHER ASSY

1шт.

22

394133R1

FASTENER

CLAMP, flasher mounting

1шт.

23

3940134R1

HOSE, flasher mounting absorber

1шт.

24

394473R91

CABLE ASSY, flasher light jumper

1шт.

25

394771R91

IGNITION SWITCH

SWITCH ASSY, flasher light

1шт.

26

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

in steering column

1шт.

27

947866

LAMP, no. 1156

1шт.

28

396858R1

LENSE, warning light, amber

1шт.

28

397442R1

LENSE, warning light, red

1шт.

29

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

headlight wire, Not operators cab

1шт.

30

702093C1

CABLE TIE

TIE STRAP, Not operators cab

1шт.

31

373662R91

LAMP

UNIT ASSY, sealed beam

4шт.

32

371461R91

LENS

UNIT ASSY, sealed beam

1шт.
