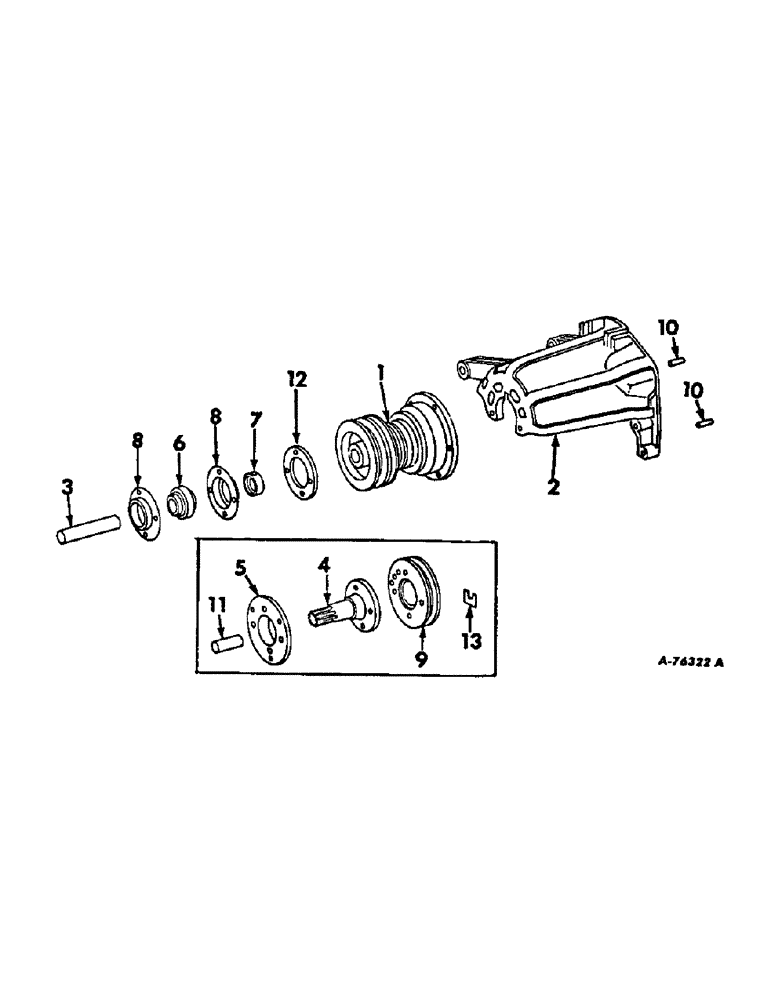

Запчасти Case IH 315 (B-12) - POWER TRAIN, POWER TAKE-OFF (03) - POWER TRAIN

1

151728C1

PULLEY, separator drive, belt drive transmission, 8-5/32 OD, 1-1/2 bore

1шт.

1

153499C1

PULLEY, separator drive, hydrostatic ground drive, 8-1/4 OD, 3-1/2 bore

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

152135C1

HOUSING, main drive pulley, gasoline engine w/belt drive transmission

1шт.

2

153186C1

HOUSING, main drive pulley, hydrostatic ground drive

1шт.

2

165784C1

HOUSING, main drive pulley, diesel engine w/belt drive transmission

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 C-Z hex-hd cap

2шт.

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

SCREW, 7/16 x 2-1/4 C-Z hex-hd cap

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 C-Z hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

3

152383C1

SHAFT, main drive, belt drive transmission

1шт.

4

153189C1

SHAFT, hydrostatic pump drive, hydrostatic ground drive, Serial no. 2297 and below

1шт.

4

161967C1

SHAFT, hydrostatic pump drive, hydrostatic ground drive, Serial no. 2298 and above

1шт.

5

153188C1

RETAINER, hydrostatic pump drive shaft bearing, hydrostatic ground drive

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8 x 2-1/4 C-Z hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

936998R91

BEARING

PTO SHAFT BALL

1шт.

7

455112R11

COLLAR

W/SET SCREW LOCKING

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd set

1шт.

8

663562R1

FLANGE

PTO shaft bearing

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg, belt drive transmission

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, , Belt drive transmission Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z sq-nk crg, hydrostatic ground drive

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

9

153498C2

PULLEY, unloader jackshaft drive, 8-5/32 OD, 3-1/4 bore, gasoline engine, hydrostatic ground drive

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

1769Y

DOWELL, power take off housing

2шт.

11

389441R1

COUPLING

hydrostatic pump drive shaft, hydrostatic ground drive

1шт.

12

155920C1

RETAINER, main drive pulley housing, belt drive transmission

1шт.

13

169946C1

SHIM, power take off housing, hydrostatic ground drive

1шт.
