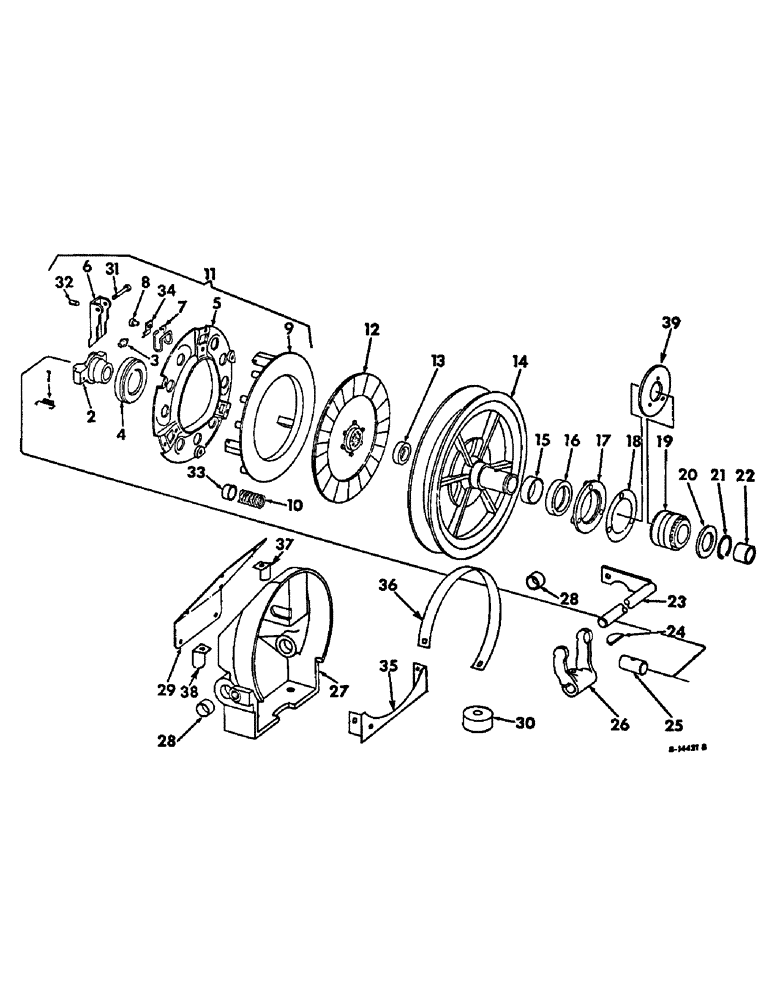

Запчасти Case IH 315 (B-10) - POWER TRAIN, MAIN AXLE CLUTCH AND PROPULSION DRIVE (03) - POWER TRAIN

1

384201R1

VALVE SPRING

SPRING, clutch release

2шт.

2

384200R11

CARRIER

ASSY, clutch release, Includes ref no. 25

1шт.

3

66584D

FITTING

3/16 drive type str lube

1шт.

4

363292R91

BEARING

ASSY, clutch release

1шт.

5

397360R91

PLATE ASSY, clutch back, Includes ref no. 8

1шт.

6

360822R91

LEVER

ASSY, clutch

3шт.

6

530518R91

PACKAGE, clutch lever

1шт.

114494

NUT,Jam, 3/8"-24, G5

3шт.

51460D

STUD

PIN

3шт.

119117

COTTER PIN,3/32" x 1/2"

PIN, COTTER, 3/32 x 1/2 C-Z

3шт.

352745R1

BOLT,3/8" - 24 x 3/4", Class 2

SCREW

3шт.

7

530519R1

SPRING, clutch release lever

3шт.

8

358561R1

SEAT, clutch lever adjusting screw

3шт.

9

397359R1

PLATE, clutch pressure

1шт.

10

68704H

SPRING, clutch pressure

9шт.

11

397358R92

COVER ASSY

PLATE ASSY, pressure, Includes ref nos. 5 thru 10 and 31 thru 34

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

6шт.

12

380638R91

KIT

PACKAGE, clutch facing

1шт.

12

379484R91

DISC

ASSY, clutch driven

1шт.

13

383860R91

OIL SEAL

OIL SEAL, propulsion driven sheave

1шт.

14

397355R1

PULLEY

propulsion driven, 13-5/8 OD, 1-3/8 bore

1шт.

15

383968R1

BUSHING

SLEEVE, propulsion driven sheave oil seal

1шт.

16

383748R91

SEAL

OIL SEAL, transmission case adapter bearing cap

1шт.

17

383746R1

CAP, transmission case adapter bearing

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8 x 1-3/8 C-Z hex-hd cap

3шт.

18

383747R1

GASKET

transmission case adapter bearing cap

1шт.

19

383884R91

BEARING ASSY,1.7812" ID x 3.0625" OD x 1.9925"

BEARING ASSY, propulsion driven sheave

1шт.

20

383738R1

RETAINER, propulsion driven sheave

1шт.

21

359894R1

RING, SNAP

SNAP RING, propulsion driven sheave

1шт.

22

383737R1

BUSHING

propulsion driven sheave

1шт.

23

606930R11

SHAFT ASSY, clutch

1шт.

24

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, 1/4 x 7/8 Woodruff

1шт.

25

606944R1

BUSHING, clutch release

1шт.

26

606947R1

FORK, clutch release

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 C-Z hex-hd cap

1шт.

27

606945R21

HOUSING ASSY, clutch, Includes ref no. 28

1шт.

28

383876R1

BUSHING,22.29mm ID x 25.4mm OD x 14.28mm L

clutch housing

2шт.

29

397357R1

COVER, propulsion clutch housing

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4 x 1/2 C-Z hex-hd cap

6шт.

30

606959R1

SPACER, clutch housing

2шт.

31

52846D

PIN

clutch release lever

3шт.

32

353319R1

SCREW, clutch lever adjusting

3шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1/16-20 hex jam

3шт.

33

353316R1

SPRING CUP

CUP, clutch pressure spring

6шт.

34

353313R1

CLIP

spring

3шт.

35

164527C11

COVER ASSY, clutch

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18

2шт.

36

164727C1

SEAL, clutch housing

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

2шт.

37

164728C1

COVER, clutch housing front

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

1шт.

38

164729C1

COVER, clutch housing rear

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

1шт.

39

164790C1

DISC, clutch dust shield

1шт.
