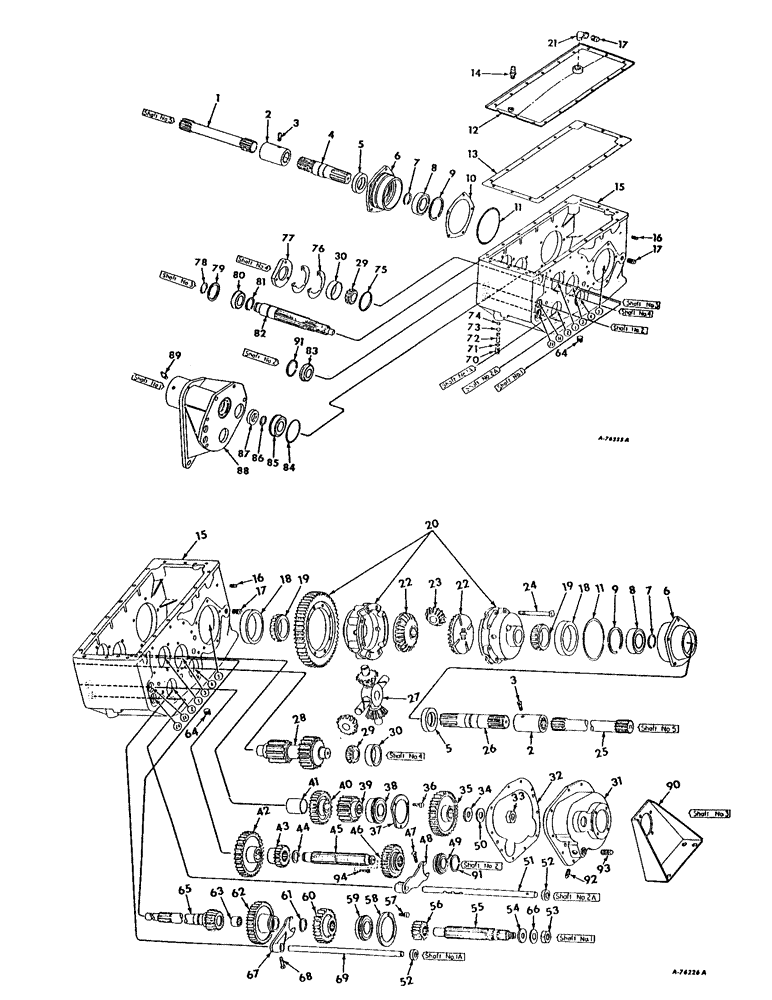

Запчасти Case IH 315 (B-04) - POWER TRAIN, AXLE, TRANSMISSION (03) - POWER TRAIN

1

606631R1

SHAFT

transmission ouput left

1шт.

2

573957R1

COUPLING

SLEEVE, axle drive shaft

2шт.

3

937589R1

SCREW,Set, 7/16" - 14 x 5/8", Steel

7/16 x 5/8 sq-hd dld cup-pt self-locking set

2шт.

WIRE, axle drive shaft sleeve set screw, Order from bulk stock

4шт.

4

379435R1

SHAFT

differential left

1шт.

5

380182R91

OIL SEAL,42.42mm ID x 62.05mm OD x 8.41mm Thk

OIL SEAL, differential bearing cage

2шт.

6

379445R1

BEARING ASSY,61.9 mm ID x 76.2 mm

differential bearing

2шт.

181421R1

BOLT,Hex, 3/8" - 16 x 1 1/8", w/ Nylon Pellet

SCREW, 3/8 x 1-1/8 C-Z hex-hd cap

10шт.

7

379511R1

SNAP RING,#177, 1.657", Ext

differential shaft

2шт.

8

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

BEARING, differential cage

2шт.

9

379485R1

RING

SNAP RING, differential cage bearing

2шт.

10

573976R1

DISC

SHIM, differential bearing cage, light

1шт.

10

573977R1

SHIM

differential bearing cage, medium

1шт.

10

573978R1

SHIM

differential bearing cage, heavy

1шт.

11

279060R1

O-RING, 5-5/8 x 4-7/8 x 1/8

2шт.

12

383742R11

COVER ASSY, transmission case

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

18шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 external tooth lock

18шт.

13

573998R2

GASKET

transmission case cover

1шт.

14

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

transmission case oil

1шт.

15

384487R1

CASE, transmisison, grain and corn

1шт.

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4 auto-sq-hd pipe

1шт.

15

379452R3

CASE

transmission, rice and hydrostatic ground drive

1шт.

16

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8 auto-sq-hd pipe, rice and hydrostatic ground drive

1шт.

17

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4 auto-sq-hd pipe

1шт.

18

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

differential roller cup

2шт.

19

ST2026D

BEARING ASSY, differential roller cone

2шт.

20

382906R92

CASE

PACKAGE, differential case and gear service

1шт.

21

1740798

ELBOW, 3/7 45 degree street

1шт.

22

360962R2

GEAR

differential bevel, 28T

2шт.

23

360961R1

GEAR

PINION, differential bevel, 15T

4шт.

24

382911R2

BOLT,1/2" - 20 x 3 3/4"

differential case

8шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

1/2 hex. thick

8шт.

25

606632R1

SHAFT, transmission output right

1шт.

26

380026R1

SHAFT

differential right

1шт.

27

388093R1

U-JOINT SPIDER

SPIDER, differential

1шт.

28

405102R1

SHAFT

differential pinion, 15 and 23 T, grain and corn

1шт.

28

379453R2

SHAFT

differential pinion, 15 and 23 T, rice and hydrostatic ground drive

1шт.

29

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, differential pinion shaft cone, grain and corn

2шт.

29

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING ASSY, differential pinion shaft cone, rice and hydrostatic ground drive

2шт.

30

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Differential pinion shaft, grain and corn

2шт.

30

50213V

BEARING CUP

BEARING, differential pinion shaft cup, rice and hydrostatic ground drive

2шт.

31

397159R11

COVER ASSY, change gear

1шт.

181421R1

BOLT,Hex, 3/8" - 16 x 1 1/8", w/ Nylon Pellet

SCREW, 3/8 x 1-1/8 C-Z hex-hd cap

10шт.

141262

PIN,7/16" x 7/8"

7/16 x 7/8 dowel

2шт.

32

573997R2

GASKET

change gear cover

1шт.

33

382879R1

NUT

transmission intermediate shaft

1шт.

34

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

transmission intermediate shaft

1шт.

35

574919R1

GEAR, change driven 28-7 27/28 gear ratio, grain and corn

1шт.

35

574000R1

GEAR, change driven 34-T 21/34 gear ratio, slow speed grain and corn

1шт.

35

379468R1

GEAR, change driven 34-T 21/34 gear ratio, rice and hydrostatic

1шт.

35

379469R1

GEAR, change driven, 40T, 15/40 gear ratio, rice

1шт.

35

379467R1

GEAR

change driven, 28T, 27/28 gear ratio, hydrostatic ground drive

1шт.

36

214168R1

CAPSCREW,5/16" x 7/8", Gr 5

SCREW, 5/16 x 7/8 nylok cap

3шт.

37

379439R1

RETAINER

RETAINER, intermediate shaft bearing right, grain and corn

1шт.

37

379466R1

CAGE

intermediate shaft bearing right, rice and hydrostatic ground drive

1шт.

38

179514R91

BEARING ASSY, intermediate shaft right, grain and corn

1шт.

38

379464R91

BEARING ASSY

intermediate shaft, rice and hydrostatic ground drive

1шт.

39

574925R2

GEAR

PINION, transmission intermediate drive, 17T

1шт.

40

574928R1

GEAR, intermediate and reverse driven, 28T, grain and corn

1шт.

40

379462R1

GEAR

intermediate and reverse driven, 30T, rice

1шт.

41

626903R1

SPACER, transmission intermediate shaft left, grain and corn

1шт.

41

379461R1

SPACER

intermediate shaft left, rice

1шт.

41

389434R1

BUSHING, intermediate shaft left, For hydrostatic ground drive

1шт.

42

574929R2

GEAR

transmission input 46T, grain and corn

1шт.

42

379495R1

GEAR

transmission input 44T, rice and hydrostatic ground drive

1шт.

43

574930R1

SHAFT

PINION, first speed drive 20T, grain and corn

1шт.

43

379472R1

GEAR

PINION, first speed drive, 18T, rice and hydrostatic ground drive

1шт.

44

359141R1

RING, SNAP

SNAP RING, transmisison main shaft bearing

1шт.

45

395908R11

SHAFT

ASSY, transmission main, grain and corn

1шт.

45

395648R11

SHAFT

ASSY, transmission main, rice and hydrostatic ground drive

1шт.

46

574931R1

GEAR

second and reverse drive 28-T, grain and corn

1шт.

46

379473R1

GEAR

second and reverse drive 26-T, rice and hydrostatic ground drive

1шт.

47

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW, shifter fork set

2шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

48

574905R1

FORK

first and third gear shifter

1шт.

49

ST212

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING ASSY, transmission main shaft right, grain and corn

1шт.

49

379474R91

BEARING ASSY

transmission main shaft right, rice and hydrostatic ground drive

1шт.

50

382900R1

LOCK WASHER

intermediate shaft lock

1шт.

51

574903R1

RAIL

first and third gear shifter

1шт.

52

111710R91

SEAL

OIL SEAL, shifter rail

4шт.

53

382879R1

NUT

input drive shaft

1шт.

54

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

input drive shaft

1шт.

55

382945R1

SHAFT

input drive, grain and corn

1шт.

55

382946R1

SHAFT

input drive, rice and hydrostatic ground drive

1шт.

56

573999R1

GEAR, change drive pinion 21-T, 21/34 gear ratio slow speed, grain and corn

1шт.

56

530108R1

GEAR WHEEL

GEAR, change drive pinion 27-T, 27/28 gear ration grain and hydrostatic

1шт.

56

574004R1

GEAR, change drive pinion, 15-T, 15/40 gear ratio, rice

1шт.

57

214168R1

CAPSCREW,5/16" x 7/8", Gr 5

SCREW, 5/16 x 7/8 nylok cap

3шт.

58

379442R1

RETAINER

input shaft right bearing, grain and corn

1шт.

58

379481R1

RETAINER

input drive shaft right brg, rice and hydrostatic ground drive

1шт.

59

ST248A

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, input pinion shaft, grain and corn

1шт.

59

379437R91

BEARING ASSY

input drive shaft, rice and hydrostatic ground drive

1шт.

60

574927R2

GEAR

second speed driven 28-T, grain and corn

1шт.

60

379479R2

GEAR

second speed driven 30-T, rice and hydrostatic ground drive

1шт.

61

359141R1

RING, SNAP

SNAP RING, input drive shaft

1шт.

62

574932R1

GEAR

first and third sliding 44-T and 18-T, grain and corn

1шт.

62

379478R1

GEAR

first and third sliding, 46-T and 20-T rice and hydrostatic ground drive

1шт.

63

574940R91

NEEDLE BEARING,Needle, 25.39mm ID x 33.35mm OD x 25.4mm W

BEARING ASSY, input transmission shaft, grain and corn

1шт.

63

358034R91

NEEDLE BEARING

BEARING, input pinion shaft, rice and hydrostatic ground drive

1шт.

64

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4 auto-sq-hd pipe, rice and hydrostatic ground drive

1шт.

65

383749R1

SHAFT, input pinion, grain and corn

1шт.

65

397160R1

SHAFT, input pinion, rice

1шт.

65

389439R1

SHAFT, input pinion, hydrostatic ground drive

1шт.

66

382900R1

LOCK WASHER

input drive shaft lock

1шт.

67

574904R1

FORK

reverse and second gear shifter

1шт.

68

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW, shifter fork set

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

69

574902R1

RAIL

reverse and second gear shifter

1шт.

70

9410358

PLUG

shift lock ball spring

2шт.

71

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, shift lock ball spring plug

1шт.

72

522801R1

SPRING, gear shift lock ball

2шт.

73

16016R1

BALL

gear shift lock, 1/2 dia

2шт.

74

16014R1

BALL

gear shift lock, 7/16 dia

2шт.

75

381192R1

RING

differential pinion shaft cap left seal, grain and corn

1шт.

75

379458R1

RING

differential pinion shaft left bearing seal, rice and hydrostatic ground drive

1шт.

76

381222R1

SHIM

differential pinion left brg .007, Used as required

1шт.

76

405626R1

SHIM

differential pinion left brg .003, Used as required

1шт.

77

573971R2

CAP

differential pinion shaft

1шт.

181421R1

BOLT,Hex, 3/8" - 16 x 1 1/8", w/ Nylon Pellet

SCREW, 3/8 x 1-1/8 C-Z hex-hd cap

3шт.

78

370504R1

RING

SNAP RING, transmission intermediate shaft

1шт.

79

404207R1

RING,61.6mm ID x 68.4mm OD x 2.54mm Thk

transmission case square seal

2шт.

80

ST246

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, transmission intermediate shaft left

1шт.

81

573984R1

SNAP RING

transmission intermediate shaft, grain and corn

1шт.

82

382944R1

SHAFT

transmission intermediate, grain and corn

1шт.

82

395553R1

SHAFT

transmission intermediate, rice and hydrostatic ground drive

1шт.

83

ST212

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, transmission main shaft left, grain and corn

1шт.

83

ST246

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, transmission main shaft left, rice and hydrostatic ground drive

1шт.

84

383745R1

RING, transmission case adapter square sealing

1шт.

85

ST248A

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, input drive shaft, grain and corn

1шт.

85

379440R91

NO LONGER SERVICED

BEARING ASSY, input pinion shaft, rice and hydrostatic ground drive

1шт.

86

359141R1

RING, SNAP

SNAP RING, input shaft bearing left, grain and corn

1шт.

86

555601R1

RING, SNAP

SNAP RING, input drive shaft, rice and hydrostatic ground drive

1шт.

87

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

OIL SEAL, transmission case adapter

1шт.

88

383744R4

ADAPTER, transmission case

1шт.

873462R1

BOLT,Spcl, Hex, 7/16" - 14 x 1 1/4", w/ Nylon Pellet

SCREW, 7/16 x 1-1/4 hex-hd cap

7шт.

89

17049R91

LUBE NIPPLE,67.5 Degree, 1/8"-27 NPT x 1.03" lg, Leakproof

FITTING, 1/8-27 ptf 67-1/2 degree lub

1шт.

90

159544C1

BRACKET, transmission support RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z type 4 nut

4шт.

180172

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2 x 7/8 C-Z hex-hd cap

4шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2 x 1-1/4 znd type 4 hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.

91

370504R1

RING

SNAP RING, transmission main shaft brg

1шт.

92

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2 automotive sq-hd filler

1шт.

93

30443V

PLUG

13/16 hex-hd

1шт.

94

374639R1

COUPLING

transmission main shaft

1шт.
