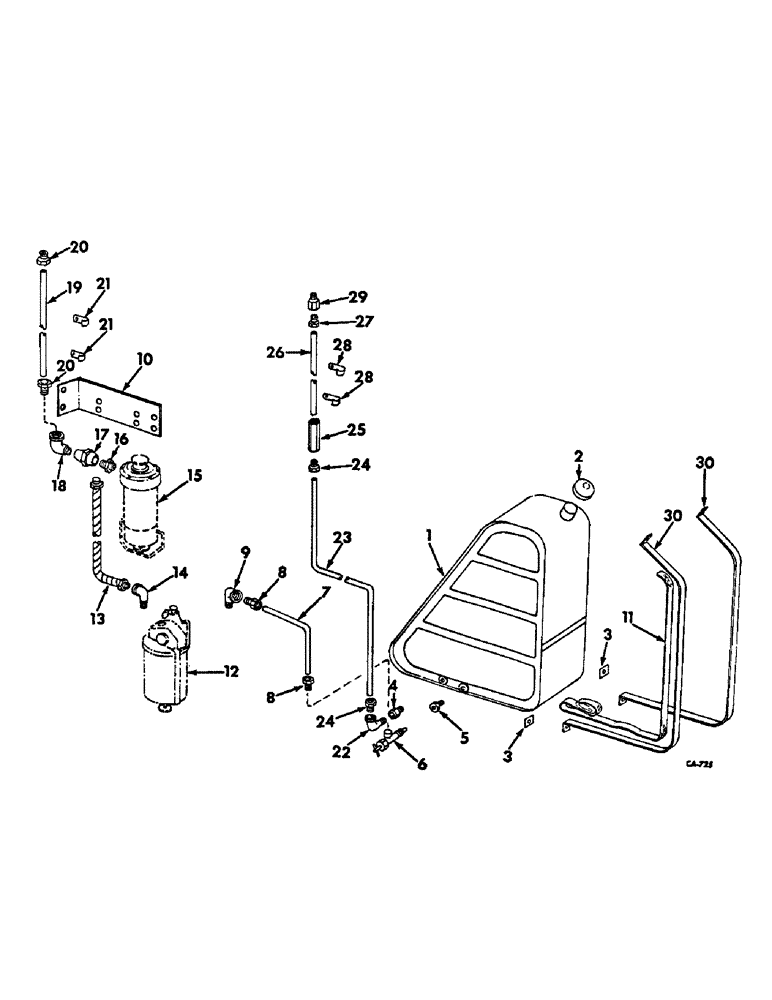

Запчасти Case IH 315 (E-04) - FUEL SYSTEM, FUEL LINES AND TANK, DIESEL ENGINE (02) - FUEL SYSTEM

1

165794C91

TANK ASSY, fuel, Includes ref no 2

1шт.

2

23995DC

FILLER CAP

CAP, fuel tank

1шт.

3

936152R1

WASHER

2шт.

4

144043

ADAPTER,3/8" NPT Male x 1/4" NPT Fem

1/4-18 reducing pipe

1шт.

5

444014

ADAPTER,3/8"-18 Fem NPTF x 1/4"-18 NPTF Male

3/8-18 x 1/4-18 automotive pipe reducer

1шт.

6

307881R91

COCK

VALVE ASSY, shut-off

1шт.

7

LINE, tank to water trap fuel, 6 inches, Order one ft incredement from 50 ft roll marked 995063R1

1шт.

8

222-504

TUBE NUT,9/16"-20

NUT, 9/16-20 hi duty tube fitting

2шт.

9

3732D

ELBOW, 9/16-20 1/4 hi duty tube fitting male pipe

1шт.

10

165791C1

BRACKET, water trap and fuel pump

1шт.

11

WEBBING, cotton, 1 inch wide x 105 inch length 3 ply, Order from bulk stock

1шт.

12

TRAP ASSY, water, Refer to water trap for unit listing

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

277041R91

PIPE CLAMP

HOSE ASSY, water trap to fuel pump

1шт.

14

118755

ELBOW

5/8 x 1/4 90 degree flared tube

1шт.

15

631259R91

PUMP

ASSY, 12 volt electric, Refer to eng-5 parts catalog for unit listing

1шт.

16

444096

COUPLING,1/4"-18, Brass

1/4-18 automotive pipe

1шт.

17

154814C91

VALVE ASSY, check

1шт.

18

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

9/16-20, 14 hi duty tube fitting male pipe

1шт.

19

LINE, pump to filter fuel, 110 inches, Order one ft incredements from 50 ft roll 995063R1

1шт.

20

222-504

TUBE NUT,9/16"-20

NUT, 9/1620 hi duty tube fitting

2шт.

21

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, pump to filter fuel line

2шт.

22

36391D

ELBOW,90 Degree x 1/4" NPT x 1/2"-20

1/2-20 1/4 hi duty tube fitting male pipe

1шт.

23

LINE, lower return fuel, 36 inches, Order one ft incredements from 50 ft roll marked 995062R1

1шт.

24

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi duty tube fitting

2шт.

25

50050D

UNION, 1/2-20 hi duty tube fitting

1шт.

26

LINE, upper return fuel, 74 inches, Order one ft incredements from 50 ft roll marked 995062R1

1шт.

27

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi duty tube fitting

2шт.

28

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, upper return fuel line

2шт.

29

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, 1/2-20 1/8 NPTF male hi duty

1шт.

30

152601C1

BRACE, fuel tank support

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
