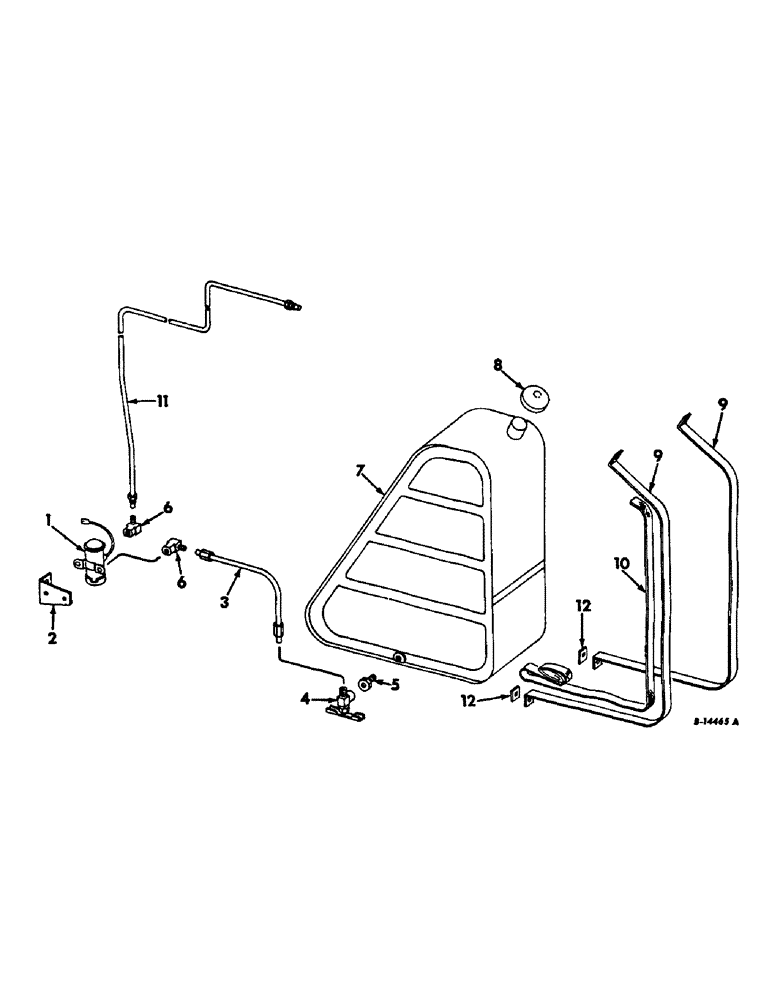

Запчасти Case IH 315 (E-03) - FUEL SYSTEM, FUEL TANK AND LINES, GASOLINE ENGINE (02) - FUEL SYSTEM

1

631259R91

PUMP

ASSY, 12 volt negative ground fuel, Refer to eng-2 parts catalog for unit listing

1шт.

2

937649R1

STRIP

fuel pump mounting

1шт.

3

TUBE ASSY, fuel tank to fuel pump, 20 inches, Order one ft incredements from 50 ft roll marked 995062R1 and two 142427 nuts

1шт.

4

152572C91

VALVE

ASSY, fuel shut off

1шт.

5

444026

REDUCER,3/8"-18 NPTF x 1/8"-27 Fem NPTF

BUSHING, 3/8-18 x 1/8-27 automotive reducing pipe

1шт.

6

137422

ELBOW

1/8-27 90 degree inverted

1шт.

7

152598C91

TANK ASSY, fuel, Includes ref. no. 8, Serial no. 2172 and below

1шт.

7

165938C91

TANK ASSY, fuel, Includes ref. no. 8, Serial no. 2173 and above

1шт.

8

126368R91

CAP

fuel tank, Serial no. 2172 and below

1шт.

8

23995D

CAP, fuel tank, Serial no. 2173 and above

1шт.

9

152601C1

BRACE, fuel tank support

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

WEBBING COTTON ONE INCH WIDE X 105 IN. LONG 3 PLY, Order from bulk stock

2шт.

135893

RIVET, 9/64 x 3/8 ni-brit truss-hd full tubular

2шт.

16543R1

WASHER, 5/32 x 7/16 x 18 ga C-Z

2шт.

11

TUBE ASSY, fuel pump to carburetor, 90 inches, Order one ft incredements from 50 ft roll marked 995062R1 and two 142427 nuts

1шт.

12

936152R1

WASHER

2шт.
