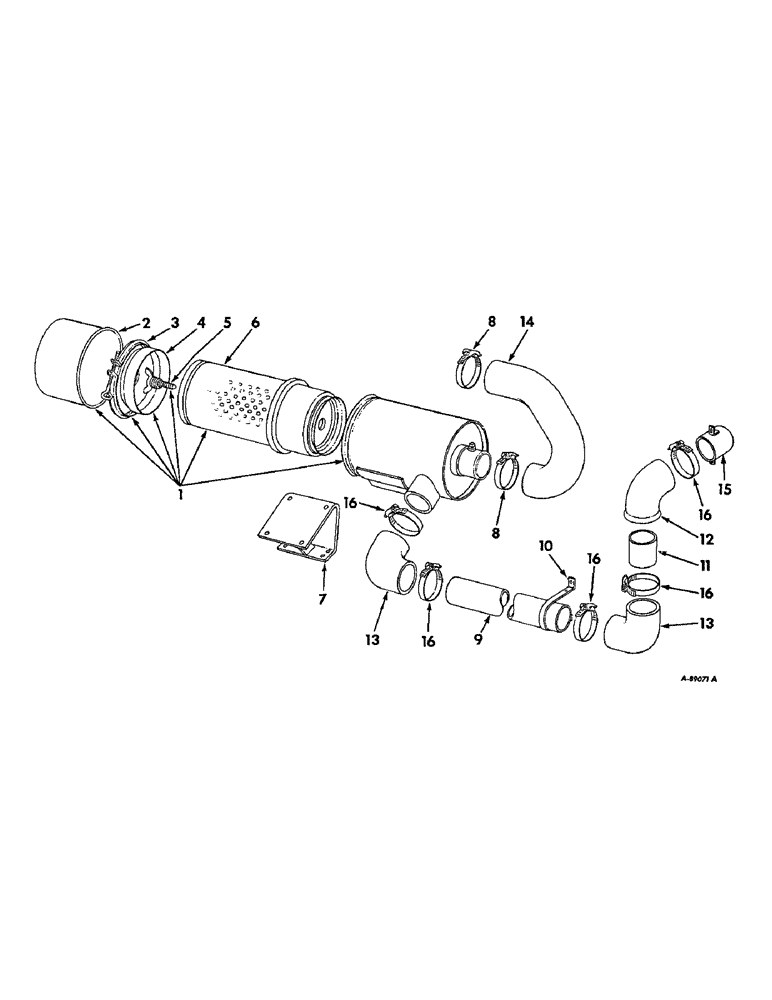

Запчасти Case IH 315 (E-02) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS (02) - FUEL SYSTEM

1

395540R91

CLEANER ASSY, dry type air

1шт.

2

389267R91

BOWL

CUP ASSY

1шт.

3

381339R91

CLAMP

ASSY

1шт.

4

381345R1

BAFFLE

1шт.

5

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSY

1шт.

6

384812R93

AIR CLEANER

ELEMENT ASSY

1шт.

7

396900R1

BRACKET ASSY, air cleaner

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

8

401345R1

HOSE CLAMP,#40, 2.06/3.00 Type F Worm, W/liner

CLAMP, air cleaner pipe elbow

2шт.

9

396904R1

TUBE, air cleaner intake

1шт.

10

396905R1

CLAMP, air cleaner pipe

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8-24 x 1 hex-hd cap

2шт.

187068

BOLT,Hex, 1/4" - 20 x 3 1/4", Gr 5

SCREW, 1/4-20 x 3-1/4 pltd hex-hd cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

396906R1

SPACER, connecting

1шт.

12

396907R1

HOSE, air cleaner inlet

1шт.

13

306190R1

HOSE ASSY.

PIPE, air cleaner inlet elbow

2шт.

14

396903R1

HOSE, air cleaner outlet

1шт.

15

396908R1

TUBE ASSY, air cleaner

1шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

38352010

WASHER, 1/4 light lock

2шт.

16

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, hose

5шт.
