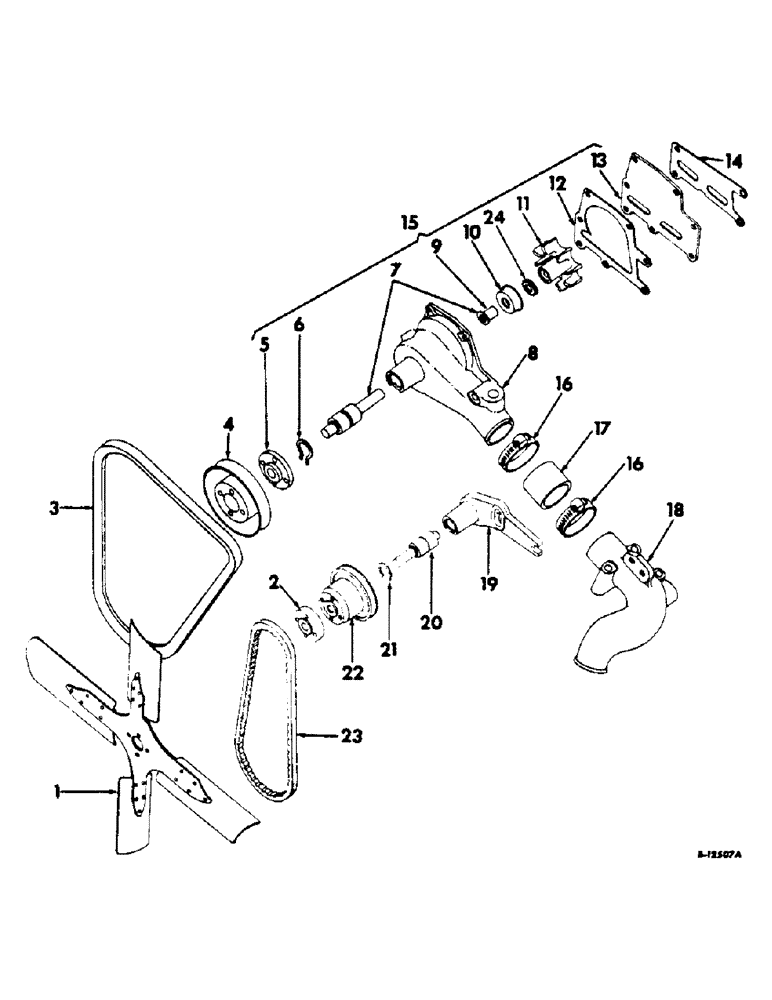

Запчасти Case IH 303 (393) - C-221 ENGINE, 3-9/16 X 3-11/16, FAN AND WATER PUMP (10) - ENGINE

1

380597R91

FAN

BLADE ASSY, fan

1шт.

REF#1 5 BLADE FAN 371633R91 11/8/96

1шт.

179809

BOLT,Hex, 1/4" - 20 x 3", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

296645C1

SPACER

fan blade, Will work for 316476C1

2шт.

3

403617R1

V-BELT,0.50" W

Water pump and generator 0.50" W

1шт.

4

368502R1

PULLEY

water pump, Serial no. & below

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

395814R1

PULLEY

water pump, Serial no. & above, Optional w/395815R1

1шт.

4

395815R1

PULLEY

water pump, Serial no. & above, Optional w/395814R1

1шт.

5

368501R2

HUB CAP

HUB, pulley

1шт.

6

102069H

RING

RETAINER, bearing

1шт.

7

ST680

SHAFT

& BEARING ASSY, water pump

1шт.

8

318118R21

BODY

W/PLUG, water pump

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 auto sq-hd pipe, Will work for 103868

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-hd pipe, LP gas, Will work for 103867

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 C1 auto sq-soc-hd

1шт.

9

71351R1

SLINGER

water pump

1шт.

10

73296R93

SEAL

ASSEMBLY, water pump

1шт.

11

387931R1

TORQ CONV IMPELLER

IMPELLER, water pump, Also order retainer and seal, 265164C91 for engines C221, Serial Range: 39342-40078

1шт.

12

69674R1

GASKET

water pump plate

1шт.

13

69675R1

PLATE

water pump

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 slt-rd-hd mach

3шт.

14

69676R1

GASKET

water pump

1шт.

15

601816C91

WATER PUMP

PUMP ASSY, water

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

259207R1

WASHER

flat

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

1шт.

16

NOT USED

1шт.

17

NOT USED

1шт.

18

NOT USED

1шт.

19

379654R3

BRACKET

ADJUSTER, fan pulley

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

446229

WASHER,1/2" x 1 1/4" x .109"

9/16 x 1-1/4 x .109

2шт.

20

ST634

BEARING ASSY

SHAFT & BEARING ASSY, fan adjuster

1шт.

21

102069H

RING

RETAINER, bearing

1шт.

22

372724R1

PULLEY

fan

1шт.

23

379629R1

V-BELT,0.50" W x 28.50" L

Fan drive 0.50" W x 28.50" L

1шт.

24

265164C91

PACKING RING

RETAINER AND SEAL ASSY, water pump C-221 40078 up

1шт.

395816R1

RING

bearing retainer snap, Serial no. & above

1шт.

374544R94

KIT

PACKAGE, water pump service, Consists of

1шт.

69674R1

GASKET

1шт.

69676R1

GASKET

1шт.

387931R1

TORQ CONV IMPELLER

IMPELLER

1шт.

102069H

RING

RETAINER

1шт.

265164C91

PACKING RING

RETAINER & SEAL

1шт.

73296R93

SEAL

1шт.

ST680

SHAFT

AND BEARING

1шт.

71351R1

SLINGER

1шт.
