(392) - C-221 ENGINE, 3-9/16 X 3-11/16, FUEL FILTER, LP GAS ENGINES

Запчасти Case IH 303 (392) - C-221 ENGINE, 3-9/16 X 3-11/16, FUEL FILTER, LP GAS ENGINES (10) - ENGINE

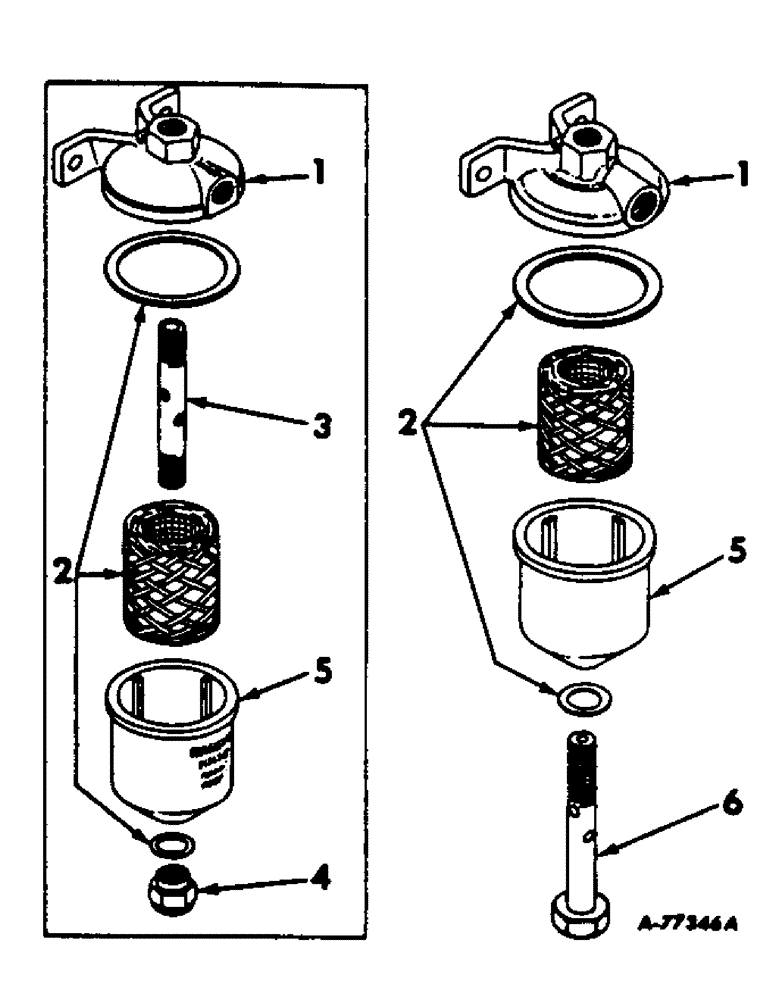

Схема запчастей Case IH 303 - (392) - C-221 ENGINE, 3-9/16 X 3-11/16, FUEL FILTER, LP GAS ENGINES (10) - ENGINE
3
1
2
2
5
5
1
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

346818R91

FILTER ASSY, fuel

1шт.

1

TOP, filler, Order filter assy

1шт.

2

64400DC

ELEMENT

ASSY, fuel filter

1шт.

3

64402D

STUD, filter

1шт.

4

64403D

NUT, filter stud

1шт.

5

BOTTOM, filter, Order filter assy

1шт.

6

BOLT, filter bottom, Used only with filter, 346818R91

1шт.
