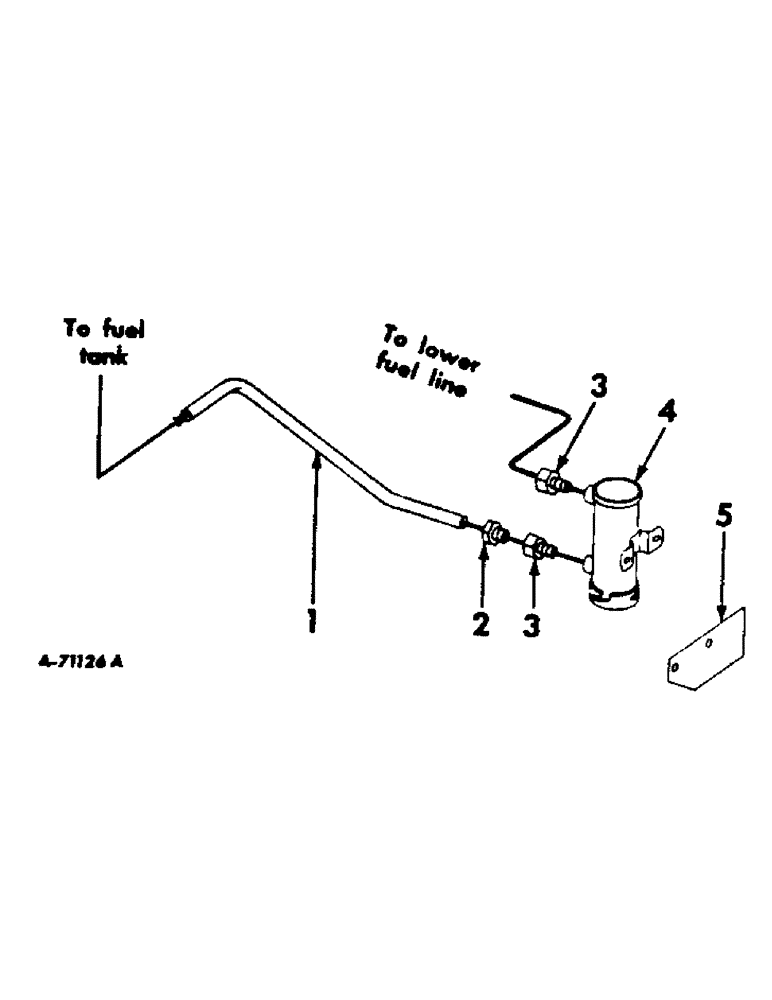

Запчасти Case IH 303 (389) - C-221 ENGINE, 3-9/16 X 3-11/16, FUEL PUMP, LINE AND SUPPORT, BENDIX (10) - ENGINE

1

LINE, fuel pump to fuel tank, 5/16 OD x 12-5/16 in., Order one foot increments of 995062R1 copper tubing

1шт.

2

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

2шт.

3

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, fuel pump

2шт.

4

631259R91

PUMP

ASSY, fuel, For components see list of parts under details of fuel pump

1шт.

5

629311R1

BRACKET, fuel pump

1шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 hex-hd mach

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
