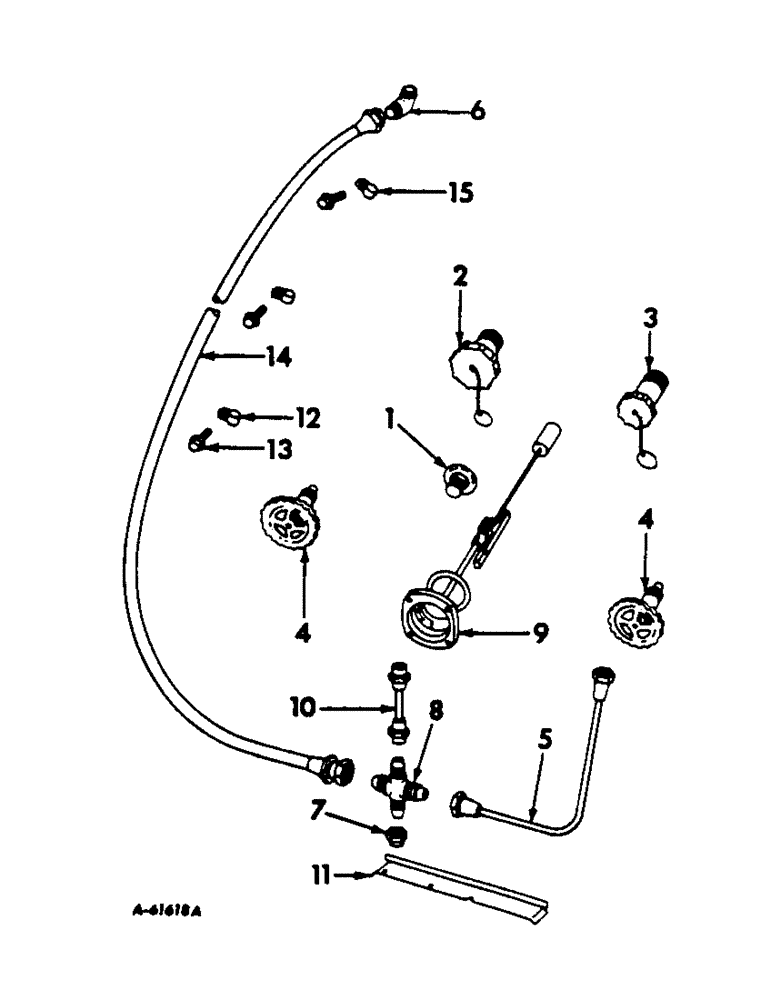

Запчасти Case IH 303 (387) - C-221 ENGINE, 3-9/16 X 3-11/16, LP GAS VALVES AND CONNECTIONS (10) - ENGINE

1

363693R91

VALVE W/DIAL ASSY, fixed, Bastian-Blessing, Optional w/376514R91, Consists of the following service parts

1шт.

369048R91

STEM, vent

1шт.

369049R1

PLATE, instruction

1шт.

369050R1

RING, retaining

1шт.

1

376514R91

VALVE W/DIAL ASSY, Fisher Governor Co., Optional w/363693R91, Consists of the following service parts

1шт.

376524R1

PLATE, instruction

1шт.

369048R91

STEM, vent

1шт.

369050R1

RING, retaining

1шт.

2

363688R91

VALVE ASSY, filler back check, Bastian-Blessing, Optional w/376516R91, Consists of the following service parts

1шт.

359825R1

WASHER, cap

1шт.

369045R91

CAP AND CHAIN

1шт.

2

376516R91

VALVE ASSY, filler back check, Fisher Governor Co., Optional w/363688R91, Consists of the following service parts

1шт.

369825R1

WASHER, cap

1шт.

376521R91

CAP AND CHAIN

1шт.

3

109567R91

VALVE ASSY, vapor and excess flow, Bastian-Blessing, Optional w/376517R91, Consists of the following service parts

1шт.

359815R1

WASHER

1шт.

369051R91

CAP AND CHAIN

1шт.

3

376517R91

VALVE ASSY, vapor and excess flow, Fisher Governor Co., Optional w/109567R91, Consists of the following service parts

1шт.

376519R91

CAP AND CHAIN

1шт.

359815R1

WASHER

1шт.

4

109850R91

VALVE W/HAND WHEEL AND EXCESS FLOW ASSY, service check, Bastian-Blessing, Consists of the following service parts

1шт.

369043R1

HAND WHEEL

1шт.

369044R1

SCREW AND WASHER

1шт.

5

574110R11

LINE W/NUTS ASSY, liquid valve to cross fuel

1шт.

6

109563R1

ELBOW

1/4 NPTF x 5/8-18, 90 deg flared tube, fuel tank to filter hose

1шт.

7

661778R1

CAP, cross fitting

1шт.

8

661777R1

CROSS, fuel line fitting

1шт.

9

662599R91

GUIDE ASSY, magnetic liquid level

1шт.

10

574111R11

LINE W/NUTS ASSY, vapor to cross fuel

1шт.

11

572953R1

SHIELD, fuel line

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1/2 hex-hd washer face cutting

1шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

1шт.

12

NLS

NO LONGER SERVICED

CLIP, fuel tank to filter hose

2шт.

13

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1/2 hex-hd washer face cutting

3шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

2шт.

14

570063R91

HOSE ASSY, fuel tank to fuel filter

1шт.

15

571716R1

CLIP, fuel tank to filter hose upper

1шт.
