(382) - C-221 ENGINE, 3-9/16 X 3-11/16, FUEL SHUT-OFF

Запчасти Case IH 303 (382) - C-221 ENGINE, 3-9/16 X 3-11/16, FUEL SHUT-OFF (10) - ENGINE

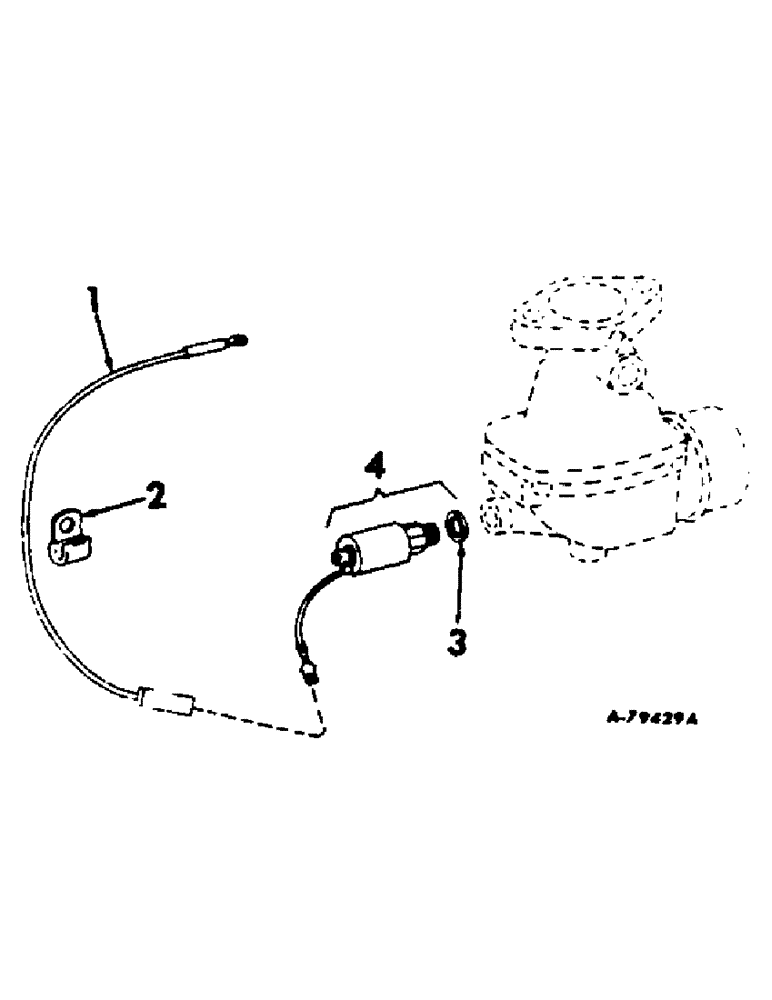

Схема запчастей Case IH 303 - (382) - C-221 ENGINE, 3-9/16 X 3-11/16, FUEL SHUT-OFF (10) - ENGINE
1
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

386017R91

CABLE ASSY, fuel shut-off solenoid junction

1шт.

2

366460R1

CABLE CLIP

CLIP, cable, On generator bracket and water pump housing

2шт.

3

381955R1

GASKET

shut-off valve

1шт.

4

384818R92

VALVE

ASSY, fuel shut-off solenoid

1шт.
