(378) - C-221 ENGINE, 3-9/16 X 3-11/16, VERTICAL EXHAUST MUFFLER ATTACHMENT

Запчасти Case IH 303 (378) - C-221 ENGINE, 3-9/16 X 3-11/16, VERTICAL EXHAUST MUFFLER ATTACHMENT (10) - ENGINE

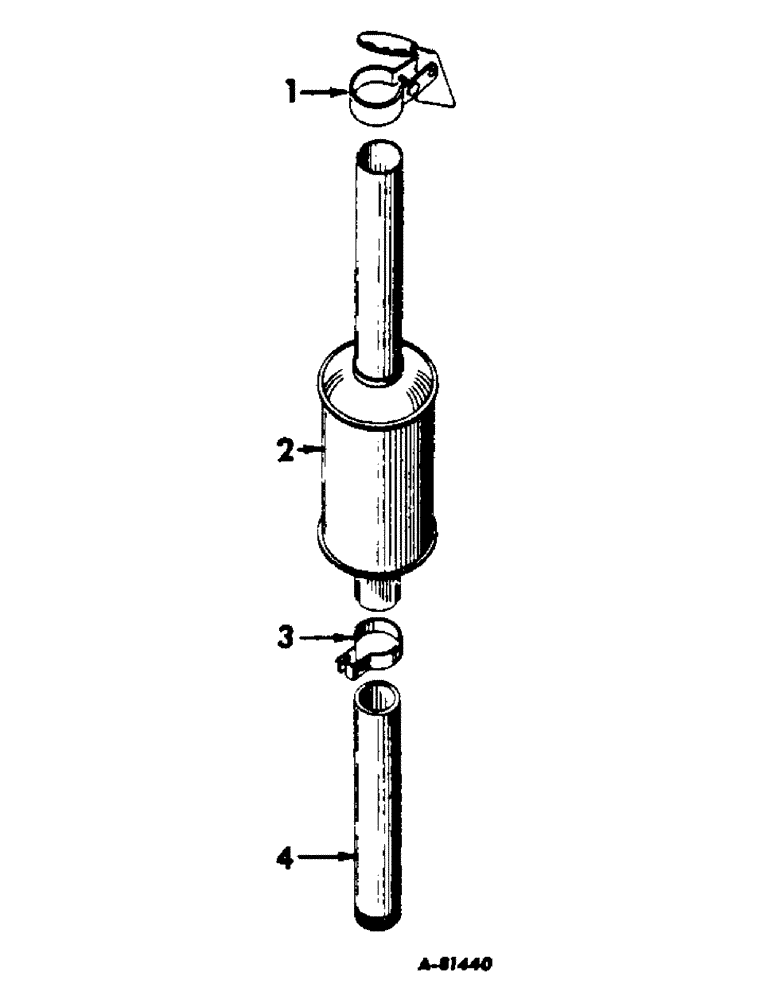

Схема запчастей Case IH 303 - (378) - C-221 ENGINE, 3-9/16 X 3-11/16, VERTICAL EXHAUST MUFFLER ATTACHMENT (10) - ENGINE
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

389403R91

PARTS ACCESSORY, vertical exhaust muffler

1шт.

1

321574R91

PLUG

CAP ASSY, exhaust

1шт.

2

370644R92

MUFFLER

exhaust

1шт.

3

350602R1

CLAMP

exhaust muffler

1шт.

102635

NUT,3/8"-16, G5

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

664386R1

PIPE

exhaust

1шт.
