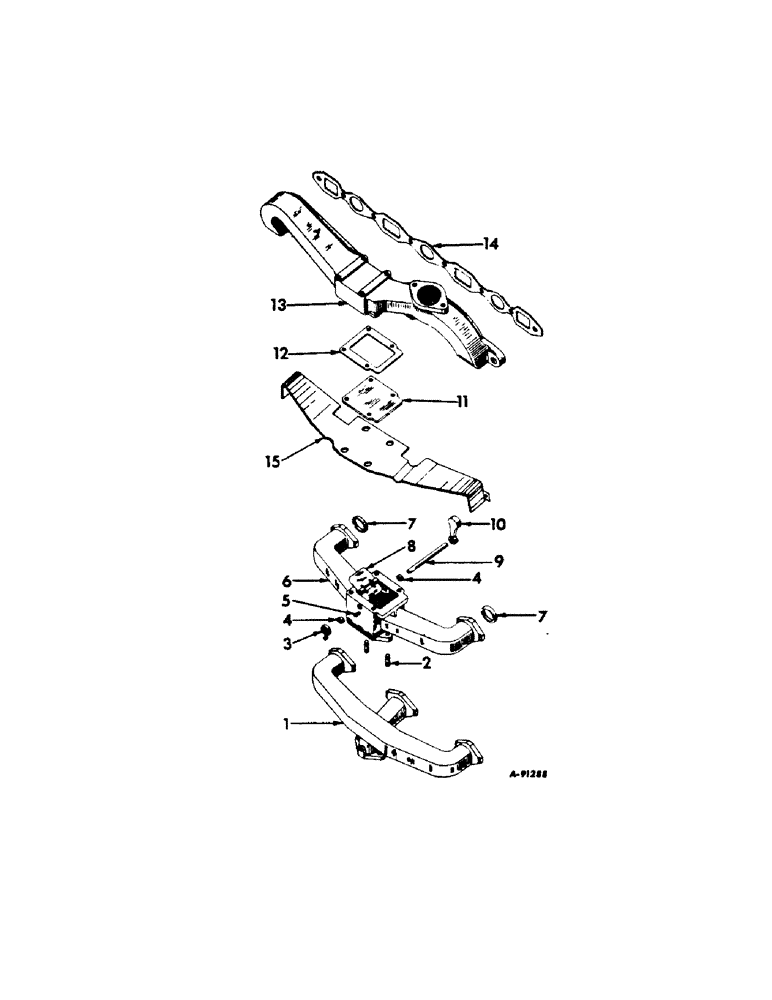

Запчасти Case IH 303 (377) - C-221 ENGINE, 3-9/16 X 3-11/16, INTAKE MANIFOLD AND EXHAUST SYSTEM (10) - ENGINE

1

371097R11

MANIFOLD W/PLUG ASSY, intake, LP gas

1шт.

444671

PLUG, 1/8-27 auto sq-hd pipe

1шт.

2

12215D

STUD

carburetor

2шт.

3

82958R2

VALVE SPRING

SPRING, thermostat heat control valve

1шт.

4

69443R1

BUSHING

manifold heat control

2шт.

5

141159

SPARE PART

PIN, 3/16 x 1 dowel

1шт.

6

367261R11

MANIFOLD

ASSEMBLY, intake, gasoline

1шт.

103865

PLUG, 1/8 sq-hd pipe

1шт.

7

98573HA

GUIDE

PILOT, intake manifold

2шт.

8

85700R1

VALVE

manifold heat control

1шт.

9

82959R1

SHAFT

manifold heat control valve

1шт.

10

85699R1

WEIGHT

manifold heat control

1шт.

11

371098R1

COVER, exhaust manifold

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

102635

NUT,3/8"-16, G5

4шт.

381784R1

BOLT,Hex, 3/8" - 16 x 3 3/8", Gr 8

SCREW, 3/8-16 x 3-3/8 hex-hd cap

4шт.

12

85868R1

GASKET

intake to exhaust manifold

1шт.

13

368550R11

MANIFOLD

ASSEMBLY, exhaust

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

399447R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

BOLT, exhaust manifold

2шт.

399446R1

BOLT,Hex, 3/8" - 16 x 1 1/4"

BOLT, exhaust manifold

6шт.

400877R1

WASHER

manifold bolt

8шт.

14

400878R1

GASKET

intake & exhaust manifold, Replaces 69752H

1шт.

15

384509R21

SHIELD ASSY, intake manifold heat

1шт.

355574R1

CLIP

choke control

1шт.
