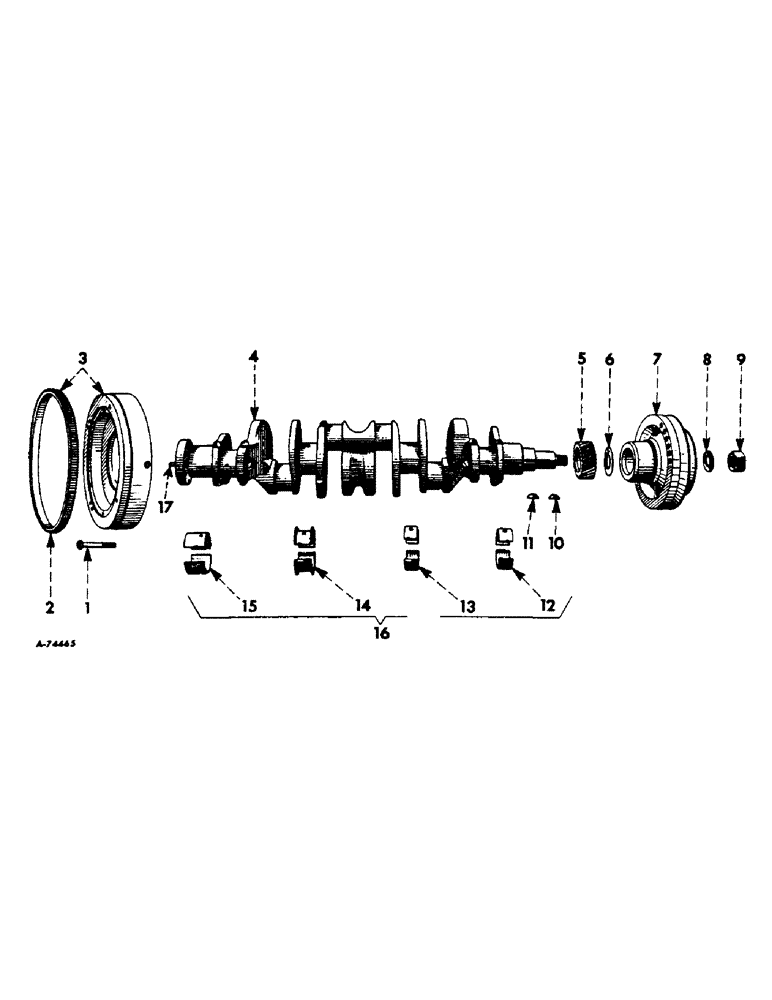

Запчасти Case IH 303 (376) - C-221 ENGINE, 3-9/16 X 3-11/16, CRANKSHAFT, FLYWHEEL AND BEARINGS (10) - ENGINE

1

70426R1

BOLT, Serial Range: flywheel-crankshaft

6шт.

2

95691H

GEAR

flywheel ring, 159 teeth

1шт.

3

276043R11

FLYWHEEL ASSEMBLY

1шт.

4

382355R91

CRANKSHAFT

ASSY, std, Composed of

1шт.

367630R91

BEARING SET

1шт.

382357R91

CRANKSHAFT BEARING

BEARING SET

1шт.

367266R1

CRANKSHAFT, NSS

1шт.

82970R1

STUD

PIN

1шт.

4

367270R92

CRANKSHAFT W/BEARINGS FIELD PACKAGE, U/S, Consists of six connecting rod bearings, four crankshaft bearings and crankshaft

1шт.

5

367272R1

PINION

GEAR, crankshaft

1шт.

6

71763R2

DEFLECTOR

SLINGER, crankshaft oil

1шт.

7

371574R2

PULLEY

fan drive

1шт.

8

70109R1

WASHER

starting crank nut

1шт.

9

V84199

NUT,1"-14, Thin

crankshaft

1шт.

10

117984

BUCKET TOOTH KEY

KEY, 5/16 x 1-3/8 Woodruff no. 23, fan drive pulley

1шт.

11

103462

KEY

3/16 x 1 Woodruff no. 13, crankshaft gear

1шт.

12

367276R91

BEARING LINER

BEARING ASSY, crankshaft front, 2 halves, std

1шт.

12

367300R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front, 2 halves, .002 U/S

1шт.

12

376670R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .010 U/S

1шт.

12

376683R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .020 U/S

1шт.

12

367288R91

BEARING ASSY

ASSY, crankshaft front, 2 halves, .030 U/S

1шт.

13

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

ASSY, crankshaft intermediate front, 2 halves, std

1шт.

13

367303R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .002 U/S

1шт.

13

376673R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .010 U/S

1шт.

13

376686R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .020 U/S

1шт.

13

367291R91

BEARING

ASSY, crankshaft intermediate front, 2 halves, .030 U/S

1шт.

14

332267R91

BEARING SET

BEARING ASSY, crankshaft intermediate rear, 2 halves, std

1шт.

14

332273R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .002 U/S

1шт.

14

332276R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .010 U/S

1шт.

14

332279R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .020 U/S

1шт.

14

332270R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .030 U/S

1шт.

15

367285R91

BEARING

ASSY, crankshaft rear, 2 halves, std

1шт.

15

367309R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .002 U/S

1шт.

15

376679R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .010 U/S

1шт.

15

376692R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .020 U/S

1шт.

15

367297R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .030 U/S

1шт.

16

382357R91

CRANKSHAFT BEARING

BEARING SET, crankshaft-std

1шт.

16

382359R91

BEARING

SET, crankshaft, .002 U/S

1шт.

16

382360R91

CRANKSHAFT BEARING

BEARING SET, crankshaft, .010 U/S

1шт.

16

382361R91

BEARING SET

crankshaft, .020 U/S

1шт.

16

382358R91

BEARING

SET, crankshaft, .030 U/S

1шт.

17

82970R1

STUD

PIN, flywheel to crankshaft dowel

1шт.
