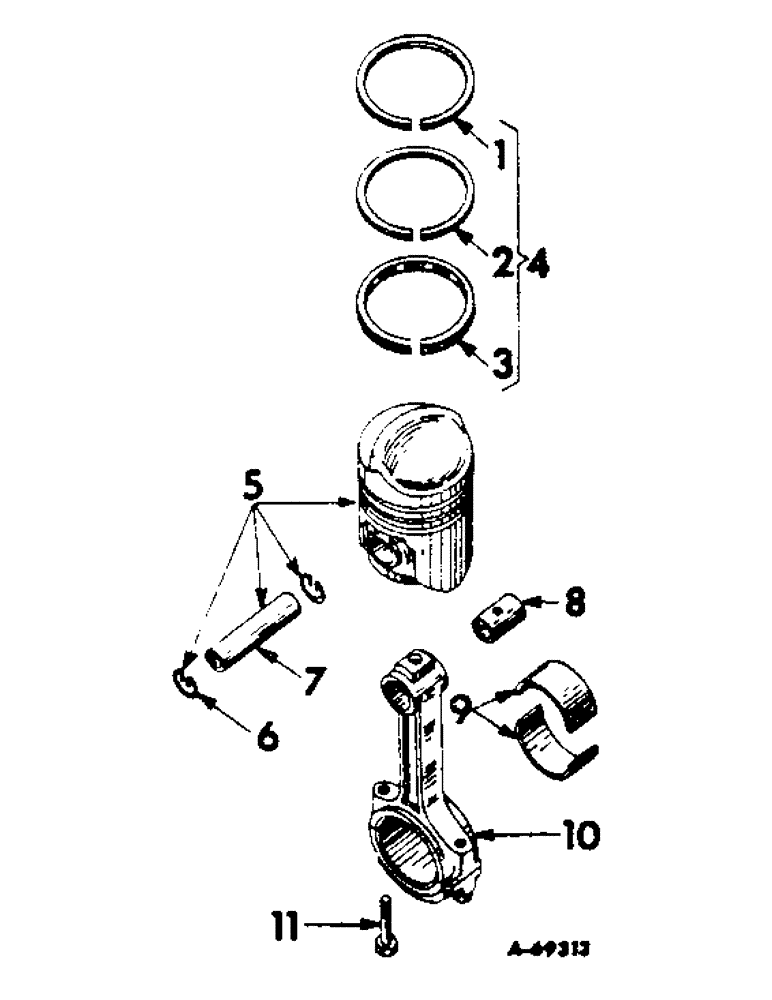

Запчасти Case IH 303 (375) - C-221 ENGINE, 3-9/16 X 3-11/16, CONNECTING RODS AND PISTONS (10) - ENGINE

1

389747R1

RING

compression piston, chrome, top or first groove, std and .010 O/S

6шт.

1

389748R1

RING

compression piston, chrome, tcp or first groove, .020 O/S

6шт.

1

389749R1

RING

compression piston, chrome, tcp or first groove, .030 O/S

6шт.

1

389750R1

RING, compression piston, chrome, top or first groove, .040 O/S

6шт.

2

389751R1

RING

compression piston, second groove, std and .010 O/S

6шт.

2

389752R1

RING, compression piston, second groove, .020 O/S

6шт.

2

389753R1

RING, compression piston, second groove, .030 O/S

6шт.

2

389754R1

RING, compression piston, second groove, .040 O/S

6шт.

3

388355R91

RING, Perflon 18 oil regulating piston, third or bottom groove, std and .010 O/S

6шт.

3

388359R91

RING

Perflon 18 oil regulating, third or bottom groove, .020 O/S

6шт.

3

388360R91

RING

Perflon 18 oil regulating piston, third or bottom groove, .030 O/S

6шт.

3

388361R91

RING

Perflon 18 oil regulating piston, third or bottom groove, .040 O/S

6шт.

3

399441R1

RING

1/4 chrome oil regulating piston .010 O/S

6шт.

3

400363R1

RING

1/4 chrome oil regulating piston .020 O/S

6шт.

3

400364R1

RING

1/4 chrome oil regulating piston .030 O/S

6шт.

3

400365R1

RING

1/4 chrome oil regulating piston .040 O/S

6шт.

4

367649R92

RING SET, piston, Consists of twelve compression & six oil regulating rings, std and .010 O/S

1шт.

4

379827R92

RING SET, piston, Consists of twelve compression & six oil regulating rings, .020 O/S

1шт.

4

379841R92

RING SET, piston, Consists of twelve compression & six oil regulating rings, .030 O/S

1шт.

4

379842R92

RING SET, piston, Consists of twelve compression & six oil regulating rings, .040 O/S

1шт.

5

388045R92

PISTON

ASSY, std

6шт.

5

388046R92

PISTON ASSY, .010 O/S

6шт.

5

388047R92

PISTON

ASSY, .020 O/S

6шт.

5

388048R92

PISTON

ASSY, .030 O/S

6шт.

5

388049R92

PISTON ASSY, .040 O/S

6шт.

5

388050R92

NO LONGER SERVICED

PISTON ASSY, std, high altitude

6шт.

5

388051R92

PISTON ASSY, .010 O/S, high altitude

6шт.

5

388052R92

PISTON ASSY, .020 O/S, high altitude

6шт.

5

388053R92

PISTON

ASSY, .030 O/S, high altitude

6шт.

5

388054R92

PISTON ASSY, .040 O/S, high altitude

6шт.

6

19517D

SPECIAL RING

RING, piston pin retainer

12шт.

7

278271R1

PISTON PIN

PIN, piston

6шт.

7

278326R1

PIN

piston, .005 oversize

6шт.

8

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

9

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, std

6шт.

9

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

6шт.

9

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 U/S

6шт.

9

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 U/S

6шт.

9

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 U/S

6шт.

9

367630R91

BEARING SET, connecting rod, std, Consists of six bearings, 367408R11

1шт.

9

377285R91

KIT

BEARING SET, connecting rod, .002 U/S, Consists of six bearings, 367632R11

1шт.

9

376665R91

BEARING

SET, connecting rod, .010 U/S, Consists of six bearings, 376666R11

1шт.

9

376667R91

KIT

BEARING SET, connecting rod, .020 U/S, Consists of six bearings, 376668R11

1шт.

9

372443R91

KIT

BEARING SET, connecting rod, .030 U/S, Consists of six bearings, 367631R11

1шт.

10

367406R21

ROD

W/TWO BOLTS, 316366R1 and bushing, 364913R1, connecting

6шт.

11

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

12шт.

400366R91

RING

KIT, piston ring replacement .010 O/S, Consists of ring 389747R1, ring 389751R1, ring 399441R1

6шт.

400367R91

RING

KIT, piston ring replacement .020 O/S, Consists of ring 389748R1, ring 389752R1, ring 400363R1

6шт.

400368R91

RING

KIT, piston ring replacement .030 O/S, Consists of ring 389749R1, ring 389753R1, ring 400364R1

6шт.

400369R91

RING

KIT, piston ring replacement .040 O/S, Consists of ring 389750R1, ring 389754R1, ring 400365R1

6шт.
