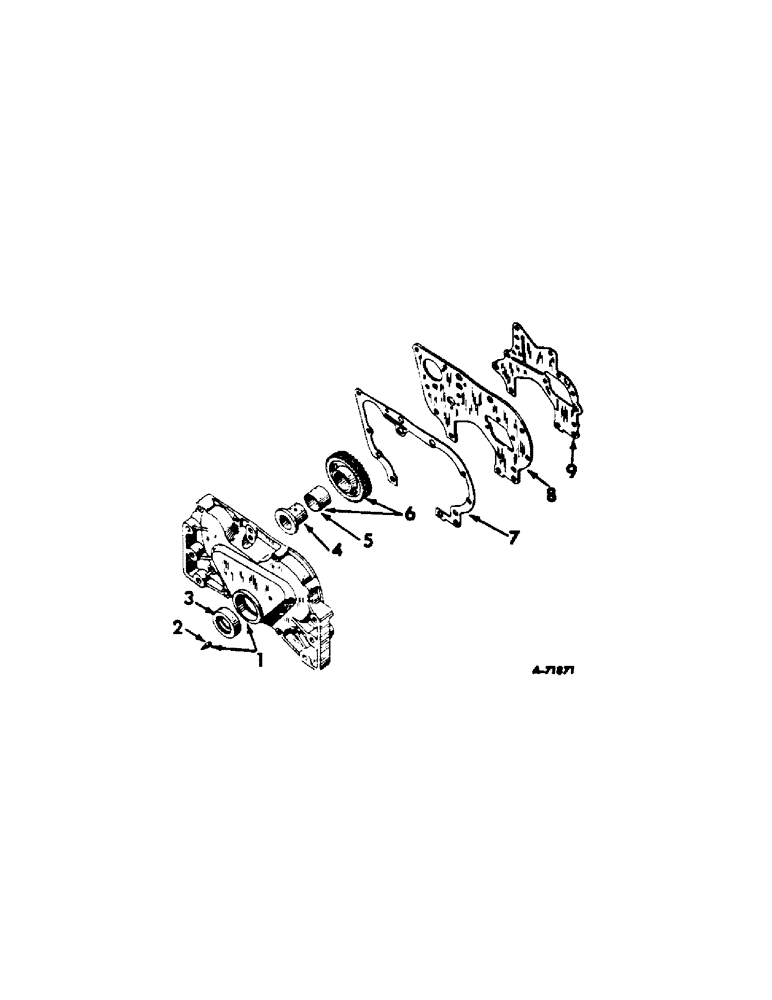

Запчасти Case IH 303 (374) - C-221 ENGINE, 3-9/16 X 3-11/16, CRANKCASE FRONT COVER AND IDLER GEAR (10) - ENGINE

1

378236R31

COVER ASSEMBLY, crankcase front, Will work for 378250R21 or 400316R11

1шт.

179887

CABLE

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

5шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

2

367572R1

INDICATOR

POINTER, timing

1шт.

3

317549R91

OIL SEAL,58.22mm ID x 85.27mm OD x 12.27mm Thk

crankshaft oil

1шт.

4

367580R11

HUB

SHAFT ASSEMBLY, idler gear, Serial no. 49990 & below

1шт.

NLS

NO LONGER SERVICED

3/16 x 7/16 dowel

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

398036R1

HUB

ASSY, idler gear, Serial no. 49991 & above

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

5

367578R1

BUSHING

idler gear, Serial no. 49990 & below

1шт.

5

398034R1

BUSHING

idler gear, Serial no. 49991 & above

1шт.

6

367577R11

PINION

GEAR ASSEMBLY, idler, Serial no. 49990 & below

1шт.

6

398032R1

PINION

GEAR ASSY, idler, Serial no. 49991 & above

1шт.

7

378237R1

GASKET

crankcase front cover

1шт.

8

378238R3

PLATE, crankcase front

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

9

367570R1

GASKET

crankcase front plate

1шт.
