Запчасти Case IH 303 (374[1]) - C-221 ENGINE, 3-9/16 X 3-11/16, CAMSHAFT AND RELATED PARTS (10) - ENGINE

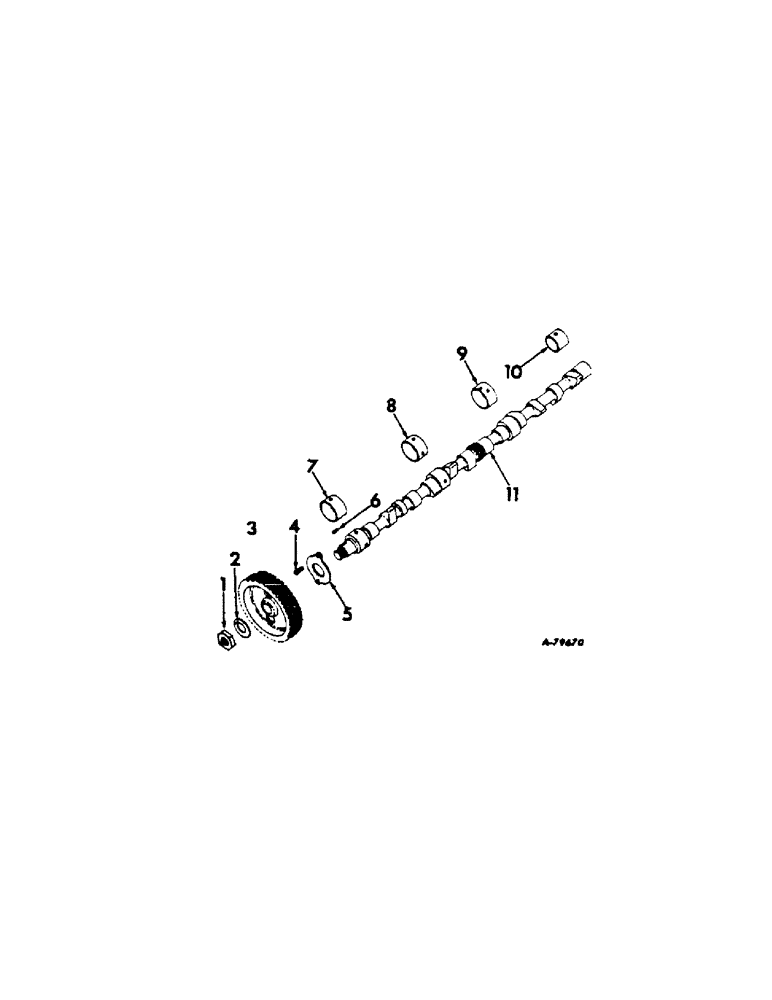

Схема запчастей Case IH 303 - (374[1]) - C-221 ENGINE, 3-9/16 X 3-11/16, CAMSHAFT AND RELATED PARTS (10) - ENGINE
4
1
9
7
5
6
11
2
8
3
10

Артикул

Название

Примечание

Количество

1

16026DB

NUT

camshaft gear

1шт.

2

16025D

SHIM

LOCK, camshaft gear nut

1шт.

3

367240R1

PINION

GEAR, camshaft

1шт.

4

70425R1

CAPSCREW,Hex, 3/8"- 16 x 3/4"

BOLT, camshaft thrust plate

2шт.

5

35650HA

FLANGE

PLATE, camshaft thrust

1шт.

6

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1/4 x 3/4 Woodruff no. 91, camshaft gear

1шт.

7

70259R2

BUSHING

camshaft front

1шт.

8

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

camshaft intermediate front

1шт.

9

70261R2

BUSHING,23.02mm ID x 55.92mm OD x 27.23mm L

camshaft intermediate rear

1шт.

10

70262R1

CAMSHAFT BEARING,37.69mm ID x 41.45mm OD x 33.58mm W

BUSHING, camshaft rear

1шт.

11

367229R1

SHAFT

CAMSHAFT

1шт.

Выбрано товаров: 11
