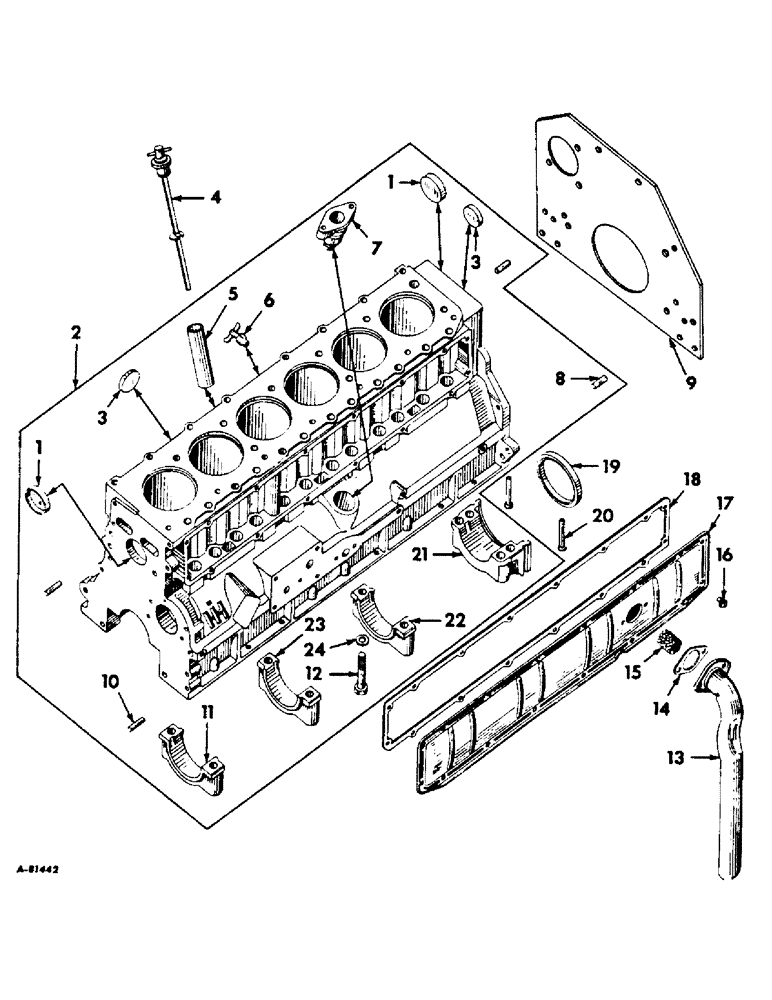

Запчасти Case IH 303 (373) - C-221 ENGINE, 3-9/16 X 3-11/16, CRANKCASE AND RELATED PARTS (10) - ENGINE

1

70129R1

PLUG,Cup, 2"

core hole

2шт.

2

402896R91

CRANKCASE W/SLEEVES, pistons & rings

1шт.

444852

TERMINAL CONNECTOR,16 - 20mm

PLUG, 1/8-27 automotive hex-soc-hd drain

3шт.

3066422R1

PLUG

3/8 sq-soc-hd pipe

2шт.

3

70128R1

PLUG,Cup, 1 5/8"

core hole

6шт.

4

368986R91

GAUGE ASSY.

GAGE ASSY, oil level

1шт.

5

368985R2

TUBE

oil filler

1шт.

6

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1/4-18 auto. hex-hd pipe, Replaces drain cock 103647

1шт.

7

367513R1

ADAPTER

distributor mounting

1шт.

8

371699R2

STUD

DOWEL, engine rear support

2шт.

8

376353R1

DOWEL, engine rear support .030 O/S

2шт.

9

388055R11

PLATE ASSY, engine rear support

1шт.

271500

SOCKET

7/16-14 hex.

4шт.

102637

NUT,1/2"-13, G5

4шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

4шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

NLS

NO LONGER SERVICED

PIN, 1/2 x 1-1/4 dowel

2шт.

11

CAP, crankshaft front bearing, Not serviced separately, Order crankcase assy

1шт.

12

70133R1

BOLT

BOLT, crankshaft bearing cap

10шт.

13

368429R31

VENTILATION PIPE

PIPE ASSEMBLY, breather

1шт.

374587R91

SCREW W/WASHER, 1/4-20 x 1/2 slt-rd-hd

2шт.

14

369981R1

GASKET

breather pipe

1шт.

15

369442R1

ELEMENT

breather pipe

1шт.

16

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW W/WASHER, 1/4-20 x 1/2 slt-truss-hd

16шт.

17

315970R91

PLATE ASSY.

COVER, w/two elements, 315849R1 valve push rod

1шт.

18

369982R1

GASKET

valve push rod cover

1шт.

19

393180R91

SEAL

crankshaft rear oil

1шт.

20

310665R1

PLUG

rear bearing cap filler

2шт.

21

CAP, crankshaft rear bearing, Not serviced separately, Order crankcase assy

1шт.

22

CAP, crankshaft rear intermediate bearing, Not serviced separately, Order crankcase assy

1шт.

23

CAP, crankshaft front intermediate bearing, Not serviced separately, Order crankcase assy

1шт.

24

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

bearing cap bolt

10шт.
