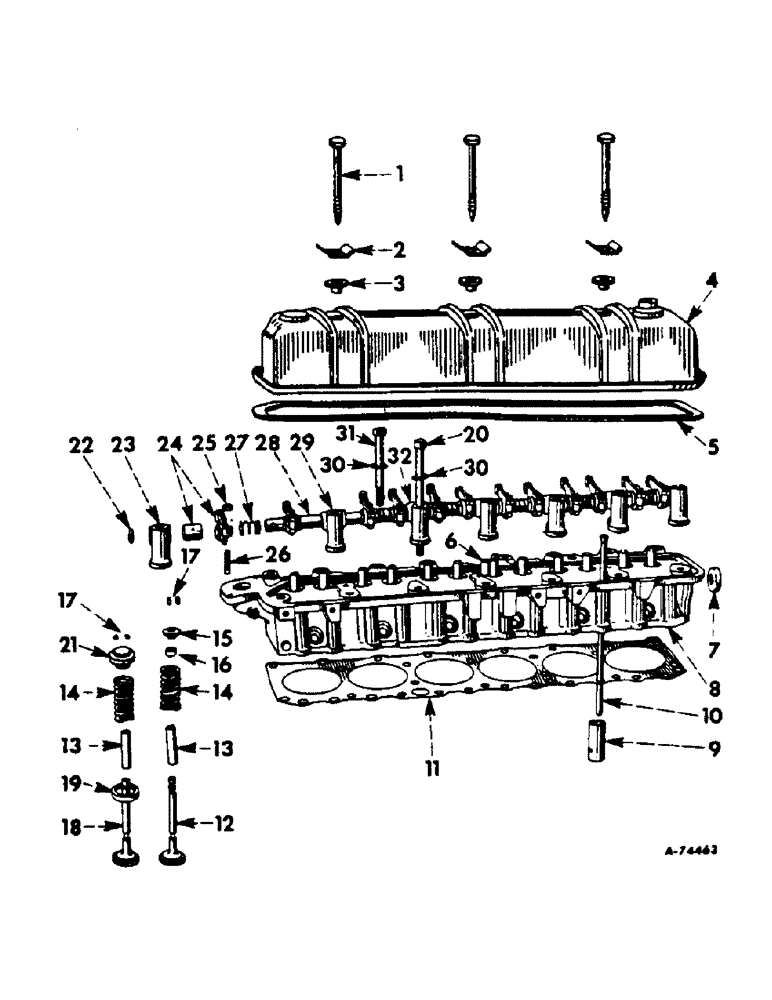

Запчасти Case IH 303 (371) - C-221 ENGINE, 3-9/16 X 3-11/16, CYLINDER HEAD AND RELATED PARTS (10) - ENGINE

1

168144R1

BOLT (SPREADER)

BOLT, valve cover

3шт.

2

370208R1

SUPPORT

STIFFENER, valve cover

3шт.

3

164420R1

GROMMET

valve cover

3шт.

4

164419R1

COVER, valve

1шт.

5

369983R1

GASKET

valve cover

1шт.

6

69500R1

SLEEVE

DOWEL, valve lever shaft intermediate no. 2, no. 4 and no. 6 bracket

3шт.

7

70128R1

PLUG,Cup, 1 5/8"

core hole

1шт.

8

378242R93

HEAD

W/VALVES ASSY, cylinder head, Composed of

1шт.

380812R92

HEAD

1шт.

41339D

KEY

24шт.

151167R3

SEAT

RETAINER

6шт.

375604R91

SEAT

ROTOCOIL

6шт.

866834R1

BAFFLE

SEAL

12шт.

367192R1

SPRING

12шт.

372699R2

STD EXHAUST VALVE

VALVE

6шт.

234275R1

VALVE

6шт.

8

380812R92

HEAD

ASSY, cylinder, Composed of

1шт.

237247R1

GUIDE

NSS

12шт.

380938R2

HEAD

1шт.

70128R1

PLUG,Cup, 1 5/8"

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW

2шт.

126373R1

SEAT

6шт.

103867

PLUG

3/8 sq-hd pipe, LP gas only

1шт.

9

75524R3

TAPPET

valve

12шт.

10

164436R91

PUSH ROD

ROD, valve push

12шт.

11

164418R2

CYLINDER HEAD GASKET

cylinder head

1шт.

12

234275R1

VALVE

intake

6шт.

13

237248R1

GUIDE

intake and exhaust valve stem

12шт.

14

367192R1

SPRING

valve

12шт.

15

151167R3

SEAT

RETAINER, valve spring

6шт.

16

866834R1

BAFFLE

SEAL, intake & exhaust valve stem

12шт.

17

41339D

KEY

valve spring retainer

24шт.

18

404179R1

LOCK VALVE

VALVE, exhaust, Gasoline, Will work for 367191R2

6шт.

18

372699R3

LOCK VALVE

VALVE, exhaust, LP gas

6шт.

19

126373R1

SEAT

exhaust valve

6шт.

19

126231R1

SEAT

.015 O/S exhaust valve

6шт.

19

83488R2

SEAT, .030 O/S exhaust valve

6шт.

20

367190R1

BOLT,Cyl Hd, 1/2" x 7 3/4", Gr 8

BOLT, cylinder head, long

7шт.

21

375604R91

SEAT

ROTO-COIL, exhaust valve

6шт.

22

109544R1

PLUG

3/4 dia expansion

2шт.

23

164422R1

BRACKET

valve lever shaft front and rear

2шт.

24

164432R91

ARM

LEVER ASSEMBLY, valve

12шт.

25

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

12шт.

26

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adjusting

12шт.

27

35619H

SPRING

valve lever

6шт.

28

76953R3

SHAFT

valve lever

2шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

2шт.

29

164423R11

BRACKET

W/DOWEL, 69500R1 assy, valve lever shaft intermediate no. 2, no. 4 and no. 6

3шт.

30

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cylinder head bolt

15шт.

31

69722R1

BOLT,Hex, 1/2" - 13 x 4.688", Gr 8

cylinder head, short

8шт.

32

164425R1

BRACKET

valve lever shaft intermediate no. 3 and no. 5

2шт.

76770R91

CAP

ASSY, oil filler

1шт.

87351R1

GASKET

oil filler cap

1шт.
