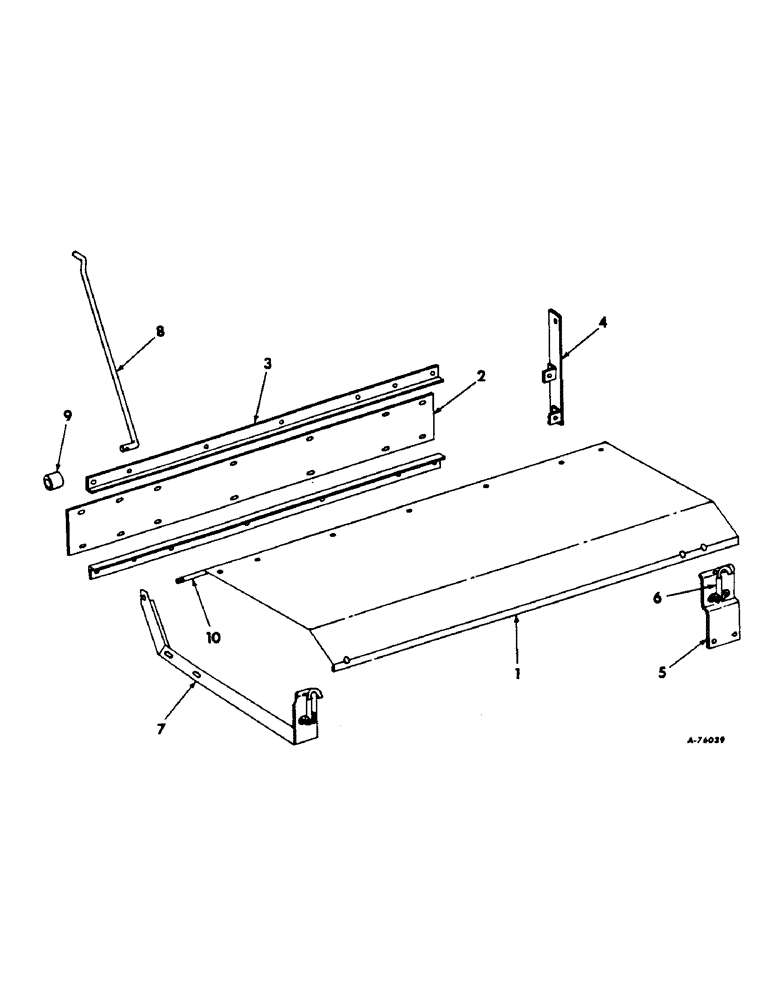

Запчасти Case IH 303 (367) - BD-220 ENGINE, 3-9/16 X 3-11/16, ENGINE COVER ATTACHMENT (10) - ENGINE

1

936496R1

COVER, engine

1шт.

2

937208R1

SEAL, engine cover

1шт.

3

937209R1

ANGLE, engine cover seal reinforcement

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

14шт.

120584

1/4 x 3/4 C-Z slt-rd-hd mach screw

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

136661H

WASHER

17/64 x 1 x 16 ga washer

14шт.

4

937210R91

SUPPORT ASSY, engine cover right front

1шт.

5

937213R11

LATCH ASSY, engine cover right

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z mach bolt

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

353443R91

LATCH ASSY.

LATCH ASSY, engine cover

2шт.

113356

RIVET,Tr Hd, 3/16" x 3/8"

3/16 x 3/8 oval-hd tubular

4шт.

7

937215R91

LATCH ASSY, engine cover left

1шт.

8

633270R1

ROD, engine cover hinge

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

557264R1

WASHER

11/32 x 3/4 x 11 ga washer

3шт.

9

565708R1

SPACER, engine cover hinge rod

1шт.

10

632874R1

ROD, engine cover

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q397

WASHER

11/32 x 3/4 x 16 ga washer

1шт.
