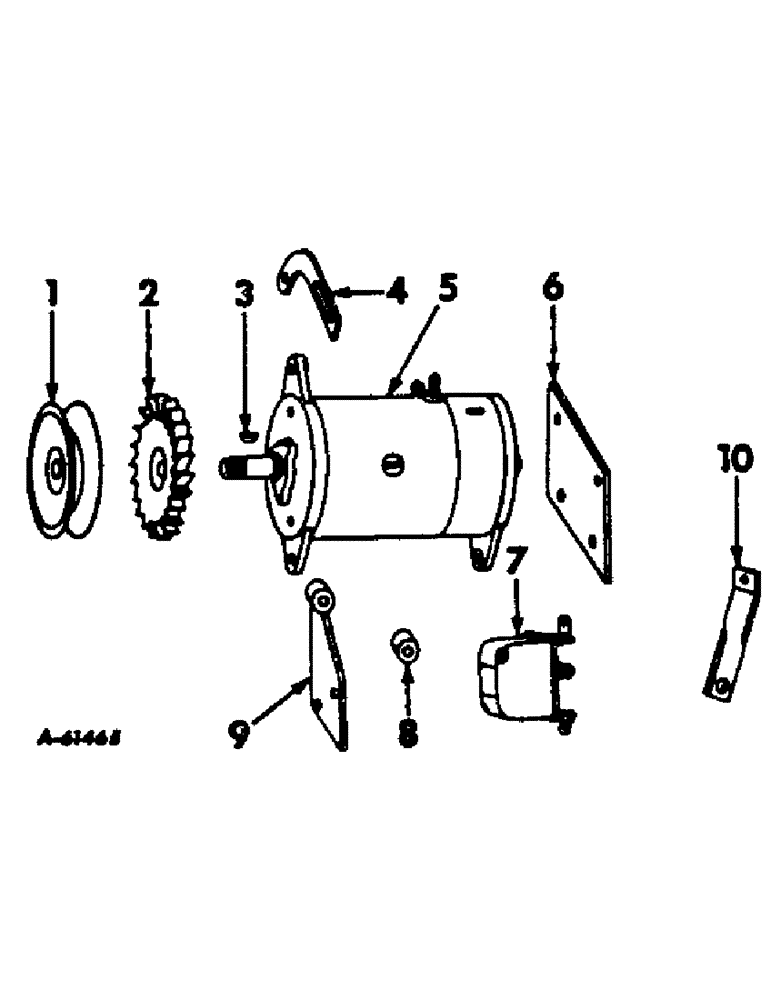

Запчасти Case IH 303 (361) - BD-220 ENGINE, 3-9/16 X 3-11/16, GENERATOR AND CONNECTIONS (10) - ENGINE

1

85091R91

SPARE PART PULLEY, generator

1шт.

2

90426H

SPARE PART FAN, generator

1шт.

3

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

4

278288R11

BRACE, generator

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, , Gasoline Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

LP gas Hex, 5/16"-18 x 2 1/4", G5

1шт.

103026

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

557264R1

WASHER

11/32 x 3/4 x 11 ga washer

1шт.

5

1100425

GENERATOR

GENERATOR ASSY, 12 volt, 379391R91, For components see list of parts under details of generator

1шт.

5

103815A1R

REMAN-GENERATOR

Generator; For N.A. only

1шт.

5

103815A1C

CORE-GENERATOR

Return number - For N.A. only

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 nut

1шт.

426444

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

5/16 x 3-1/4 cap screw

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

NOT USED

1шт.

7

1118999

REGULATOR

REGULATOR ASSY, voltage, 376122R91, For components see list of parts under details of voltage regulator

1шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4 cap screw

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

276108R1

SPARE PART SPACER, generator

1шт.

9

NOT USED

1шт.

10

308023R1

SPARE PART BRACKET, generator

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1 cap screw

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.
