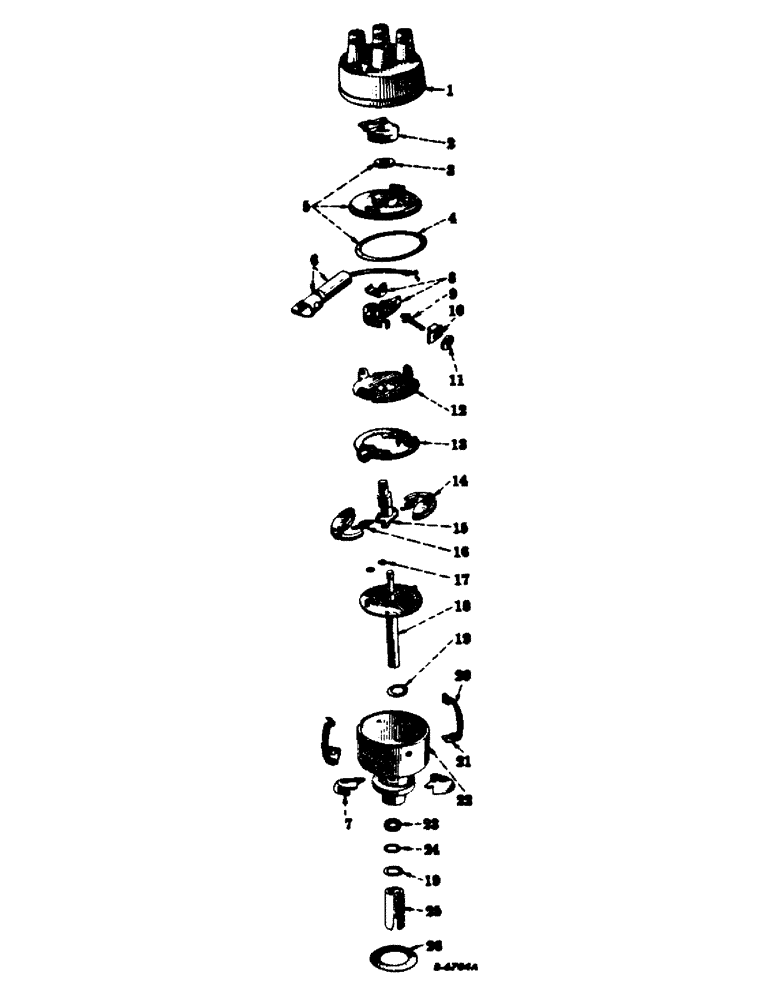

Запчасти Case IH 303 (360) - BD-220 ENGINE, 3-9/16 X 3-11/16, DISTRIBUTOR, CLAMPS AND GASKET (10) - ENGINE

.

361016R95

DISTRIBUTOR

ASSY, U symbol

1шт.

1

368062R91

CAP

distributor

1шт.

1

368062R91GV

CAP

Value, distributor cap

1шт.

2

353896R91

ROTOR ASSY.

ROTOR, distributor

1шт.

3

353901R2

FELT SEAL

breaker cover felt

1шт.

4

352284R2

GASKET

breaker cover

1шт.

5

384831R91

COVER

ASSY, breaker

1шт.

5

384831R91GV

COVER

Value, Breaker Cover

1шт.

6

353903R92

CONDENSER

ASSY

1шт.

.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

No. 8 x 3/16 C-Z slt-fil-hd mach screw

1шт.

.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

7

353937R1

CLIP

CLAMP, distributor

1шт.

.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

353172R91

BREAKER

POINT SET, distributor

1шт.

.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

No. 8 x 3/16 C-Z slt-pan-hd mach screw

1шт.

.

21394D

WASHER

STATIONERY POINT AND TERMINAL WASHER

3шт.

9

353907R1

STUD

SCREW, terminal

1шт.

.

120622

NUT,#8-32

3шт.

.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

10

353906R1

PLUG

INSULATOR, spring anchor terminal

1шт.

11

251538R1

WASHER

terminal insulating

1шт.

12

352277R11

PLATE

ASSY, breaker

1шт.

.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

No. 8 x 3/8 C-Z slt-rd-hd mach screw

1шт.

.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

353920R1

GUARD

governor weight

1шт.

.

131954

SCREW,Sl Fil Hd, #8 - 32 x 1/4"

No. 8 x 1/4 C-Z slt-fil-hd mach screw

2шт.

.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353917R91

ARM

weight

2шт.

15

356192R91

CAM

ASSY

1шт.

.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

16

373963R91

SPRING, governor, set of two

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

361020R93

SHAFT ASSY, distributor

1шт.

19

352298R1

THRUST WASHER

distributor thrust

2шт.

20

368096R1

SPRING

distributor cap

1шт.

21

353895R1

SUPPORT

distributor cap spring

2шт.

.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

No. 8 x 3/8 C-Z slt-rd-hd mach screw

2шт.

.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

22

366733R11

HOUSING ASSY, distributor, Composed of

1шт.

.

BUSHING (NSS)

1шт.

.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

.

HOUSING (NSS)

1шт.

.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

OIL SEAL

1шт.

.

353899R1

STOP

RETAINER

1шт.

23

353899R1

STOP

RETAINER, distributor shaft oil seal

1шт.

24

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

OIL SEAL, distributor shaft

1шт.

25

356191R1

COLLAR, distributor coupling

1шт.

.

354552R1

HARDWARE

PIN, distributor collar coupling

1шт.

26

353936R2

GASKET

distributor

1шт.

.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Distributor housing 1/8"-27 x .66 lg

1шт.

.

373577R91

KIT

PACKAGE, distributor shaft bushing, Used to replace bushing in housing, 366733R11

1шт.
