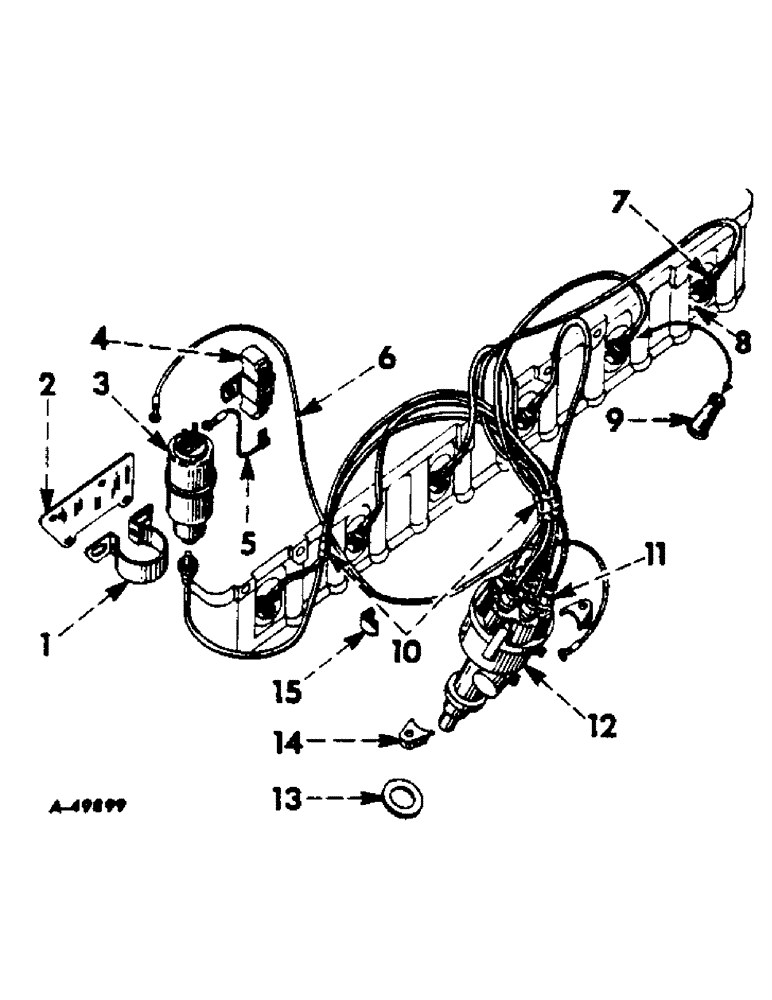

Запчасти Case IH 303 (359) - BD-220 ENGINE, 3-9/16 X 3-11/16, SPARK PLUGS, COIL, CABLES AND DISTRIBUTOR (10) - ENGINE

1

358619R1

CLAMP, coil, Used w/coil assy, 368839R91

1шт.

120611

NUT,#10 - 32

No. 10NF C-Z sq nut

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5/16 x 1/2 cap screw

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

No. 10NF x 1-1/4 C-Z slt-rd-hd mach screw

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga washer

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

1

1909321

KIT, ENGINE TOP GASK

CLAMP, coil, Used w/coil assy, 1115087 or 395330R91, Optional w/396328R1

1шт.

1

396328R1

CLAMP

coil, Used w/coil assy, 1115087 or 395330R91, Optional w/1909321

1шт.

177056

HUB

SCREW, 10-32 x 1-1/2 C-Z slt-rd-hd tap

2шт.

2

370534R11

BRACKET ASSY, ignition coil

1шт.

179852

BOLT

7/16 x 1/2 cap screw

2шт.

3

1115087

COIL ASSY, ignition, Replaces 368839R91, Optional w/395330R91

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

2шт.

3

395330R91

COIL

ASSY, ignition, Optional w/1115087

1шт.

4

368573R91

RESISTOR

ignition coil, Used w/coil assy, 368839R91

1шт.

5

370594R91

CABLE ASSY, Serial Range: coil-resistor

1шт.

6

368267R91

CABLE

coil to distributor primary

1шт.

7

108074HA

SPARK PLUG W/GASKET, 103225H, light or moderate service, Champion J-7, gasoline engines

6шт.

7

105710HA

SPARK PLUG

W/GASKET, 103225H, light or moderate service, Champion J-6, LP gas engines

6шт.

8

103225H

GASKET, spark plug

6шт.

9

371430R1

INSULATOR

spark plug terminal

6шт.

10

368270R91

CABLE

ASSY, spark plug, Consists of (6) spark plug cables, coil to distributor cable and (9) nipples, 251553R1

1шт.

11

251553R1

BOOT

NIPPLE, distributor cap terminal

1шт.

12

361016R95

DISTRIBUTOR

ASSY, For components see list of parts under details of distributor

1шт.

13

353936R2

GASKET

distributor

1шт.

14

353937R1

CLIP

CLAMP, distributor

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

370535R1

CLIP

coil to distributor cable

1шт.
