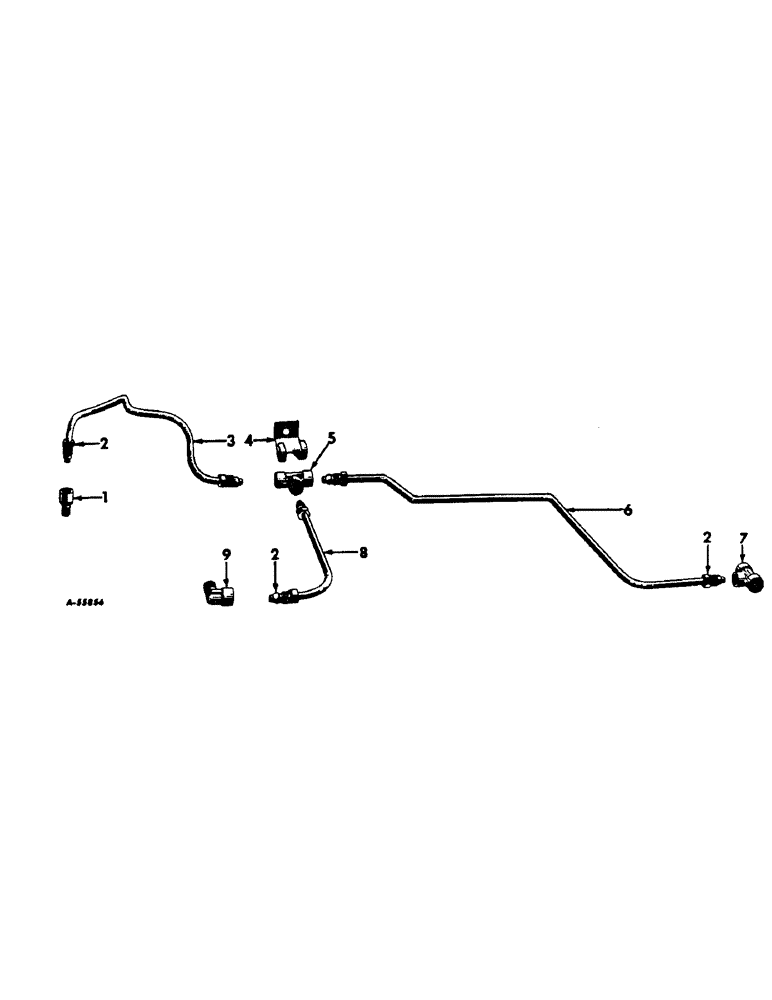

Запчасти Case IH 303 (358) - BD-220 ENGINE, 3-9/16 X 3-11/16, LUBRICATING OIL PIPES AND CONNECTIONS (10) - ENGINE

1

29901D

HYD CONNECTOR,1/8" NPT x 7/16"-24

CONNECTOR, 7/16-24 hi-duty tube fitting male

1шт.

2

19984R1

TUBE NUT,7/16"-24

NUT, 7/16-24 hi-duty tube fitting

6шт.

3

356259R1

PIPE, lubricating oil, tee to crankcase front cover

1шт.

4

356258R1

CLIP, lubricating oil pipe tee

1шт.

5

39246D

TEE, lubricating oil pipe 5/16"-24

1шт.

6

356267R4

PIPE, lubricating oil, less nuts, Serial Range: crankcase-tee

1шт.

7

16898R1

TEE,1/8" NPTF Fem Run x 7/16"-24 Male Br

oil pressure pipe

1шт.

8

356262R2

PIPE, lubricating oil, less nuts, tee to hydraulic pump adapter

1шт.

9

30402D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

7/16-24 hi-duty tube fitting male pipe, oil pressure pipe

1шт.
