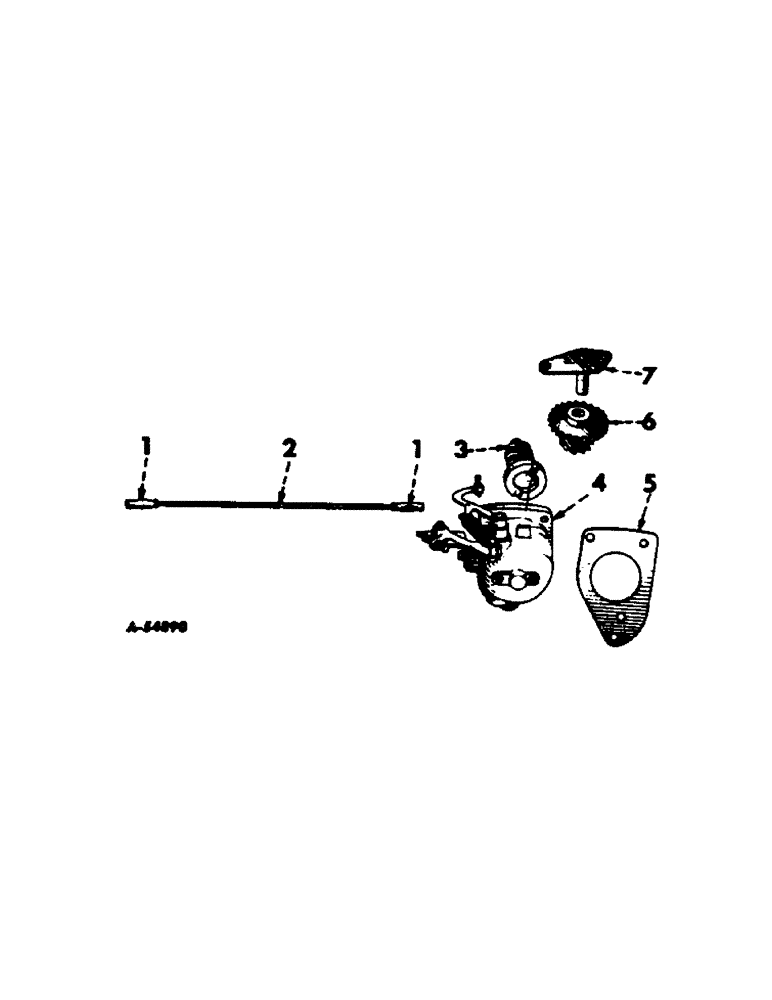

Запчасти Case IH 303 (354[1]) - BD-220 ENGINE, 3-9/16 X 3-11/16, GOVERNOR CONTROL (10) - ENGINE

1

109415

KNEE JOINT

JOINT, ball, type C, carburetor end

1шт.

1

304164R91

JOINT

ball, type S, governor end

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

2шт.

2

275078R1

ROD, governor controlling

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

2шт.

3

356270R1

SHAFT, governor drive

1шт.

4

313900R91

GOVERNOR ASSY, For service see governor unit

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4 cap screw

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

45685D

GASKET

governor housing

1шт.

6

356267R11

GEAR ASSY, governor idler

1шт.

7

356265R11

SHAFT, governor idler gear

1шт.

192279

3/8 x 7/8 type A hex lock screw

2шт.
