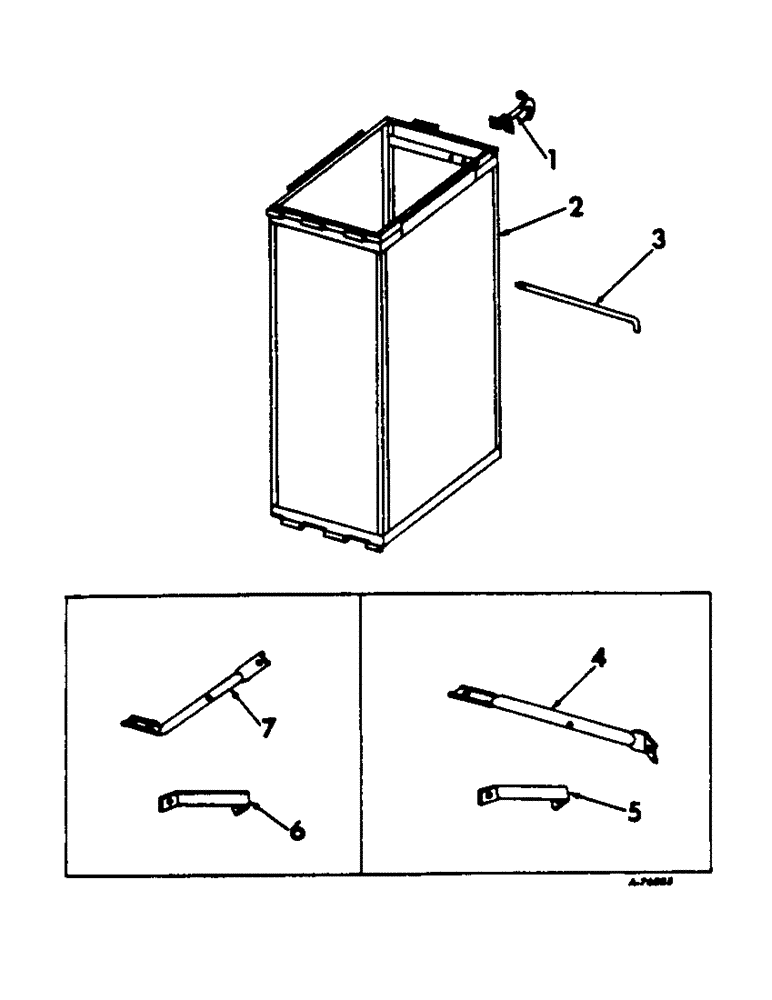

Запчасти Case IH 303 (353) - BD-220 ENGINE, 3-9/16 X 3-11/16, AIR SCREEN EXTENSION, WITH SOLID SIDES (10) - ENGINE

1

353443R91

LATCH ASSY.

LATCH ASSY, screen

1шт.

135753

3/16 x 7/16 ov-hd rivet

2шт.

2

EXTENSION ASSY, air screen, Serviced only as a mach att

1шт.

3

316458R1

PIN, screen

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

4

936815R1

PIPE, screen extension front brace, For machines not equipped with grain tank extension att.

1шт.

5

936814R1

BRACE, screen extension LH, For machines not equipped with grain tank extension att

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 x 3/4 C-Z mach bolt

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

936813R1

BRACE, screen extension LH, For machines equipped with grain tank extension att

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 x 3/4 C-Z mach bolt

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

936812R1

PIPE, screen extension front, For machines equipped with grain tank extension att.

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 x 3/4 C-Z mach bolt

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8 x 3/4 C-Z mach bolt

2шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
