(352) - BD-220 ENGINE, 3-9/16 X 3-11/16, AIR SCREEN EXTENSION, WITH PERFORATED SIDES

Запчасти Case IH 303 (352) - BD-220 ENGINE, 3-9/16 X 3-11/16, AIR SCREEN EXTENSION, WITH PERFORATED SIDES (10) - ENGINE

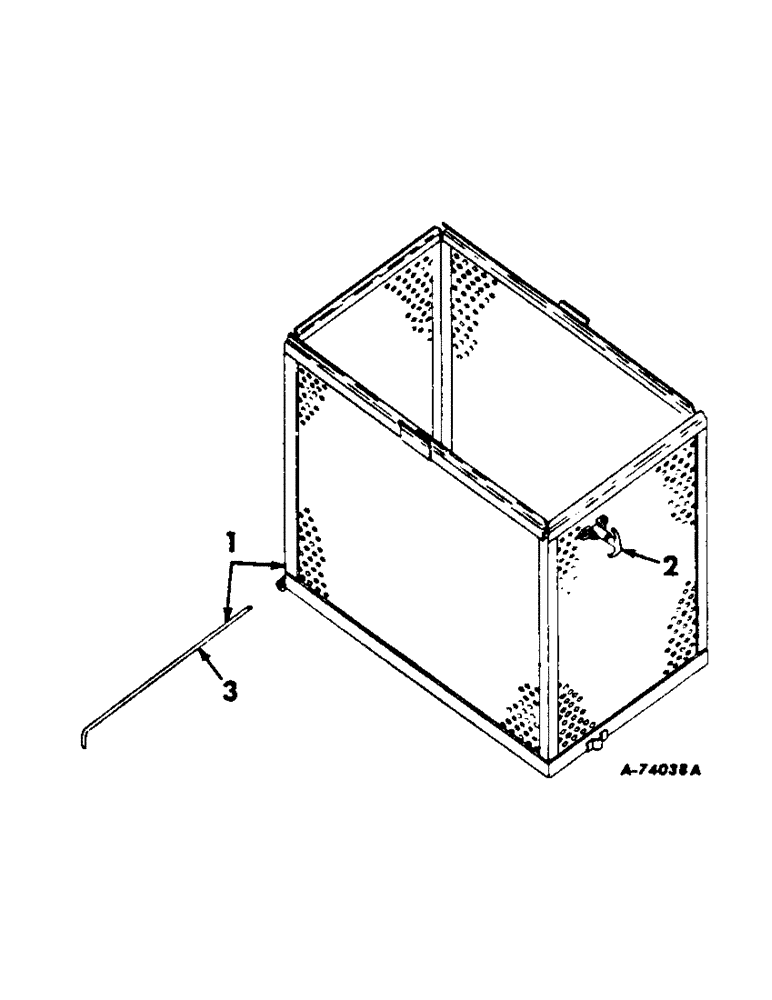

Схема запчастей Case IH 303 - (352) - BD-220 ENGINE, 3-9/16 X 3-11/16, AIR SCREEN EXTENSION, WITH PERFORATED SIDES (10) - ENGINE
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

EXTENSION ASSY, air screen, with perforated sides, 1962 & 1963, Serviced only as a machine att.

1шт.

2

353443R91

LATCH ASSY.

LATCH ASSY, air screen

1шт.

135753

3/16 x 7/16 ov-hd rivet

2шт.

3

316458R1

PIN, air screen extension hinge

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.
