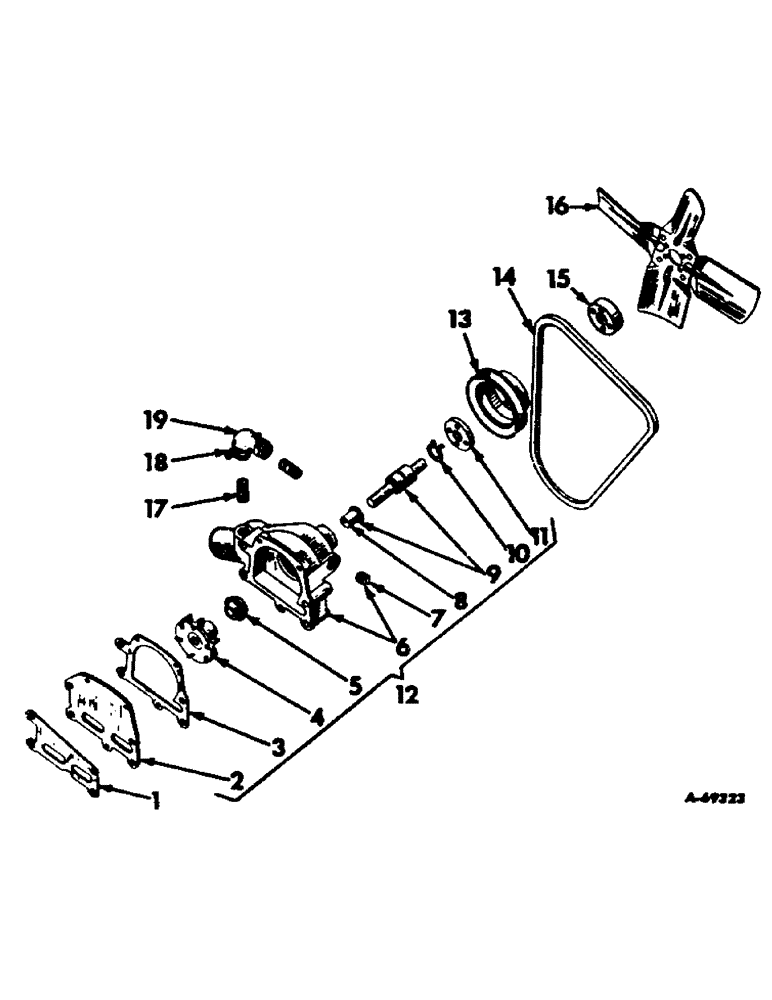

Запчасти Case IH 303 (350) - BD-220 ENGINE, 3-9/16 X 3-11/16, FAN AND WATER PUMP (10) - ENGINE

1

69676R1

GASKET

water pump spacer

1шт.

2

274637R1

SPACER, water pump

1шт.

179795

TILLAGE BLADE

1/4 x 3/4 cap screw

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

3

69674R1

GASKET

water pump

1шт.

4

69670R1

TORQ CONV IMPELLER

IMPELLER, water pump, Order impeller, 387931R1 and retainer w/seal, 265164C91

1шт.

4

387931R1

TORQ CONV IMPELLER

IMPELLER, water pump, Used only with pump, 278101R92

1шт.

5

73296R92

SEAL

water pump

1шт.

6

BODY, water pump, Order 278101R92

1шт.

7

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, Cast iron Sq Hd, 1/2"-14 NPTF

1шт.

8

71351R1

SLINGER

water pump

1шт.

9

ST641

BEARING AND SHAFT W/SLINGER, 71351R1 assy

1шт.

10

102069H

RING

RETAINER, bearing

1шт.

11

116276R1

HUB

fan

1шт.

12

278101R92

PUMP

ASSY, water

1шт.

13

318362R91

PULLEY

fan and water pump drive

1шт.

14

274705R1

BELT,0.81" W

V-BELT , Fan and water pump 0.81" W

1шт.

15

316169R1

SPACER, fan

1шт.

16

267450R91

BLADE ASSY, fan

1шт.

181320

BOLT

1/4NF x 1-5/8 cap screw

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

169193R1

PIPE

NIPPLE, water by-pass, gasoline only

2шт.

18

240369R91

CLAMP, hose, gasoline only

2шт.

19

278102R1

HOSE

ELBOW, water by-pass, gasoline only

1шт.

265164C91

PACKING RING

RETAINER W/SEAL ASSY, water pump, Used only with pump, 278101R92

1шт.
