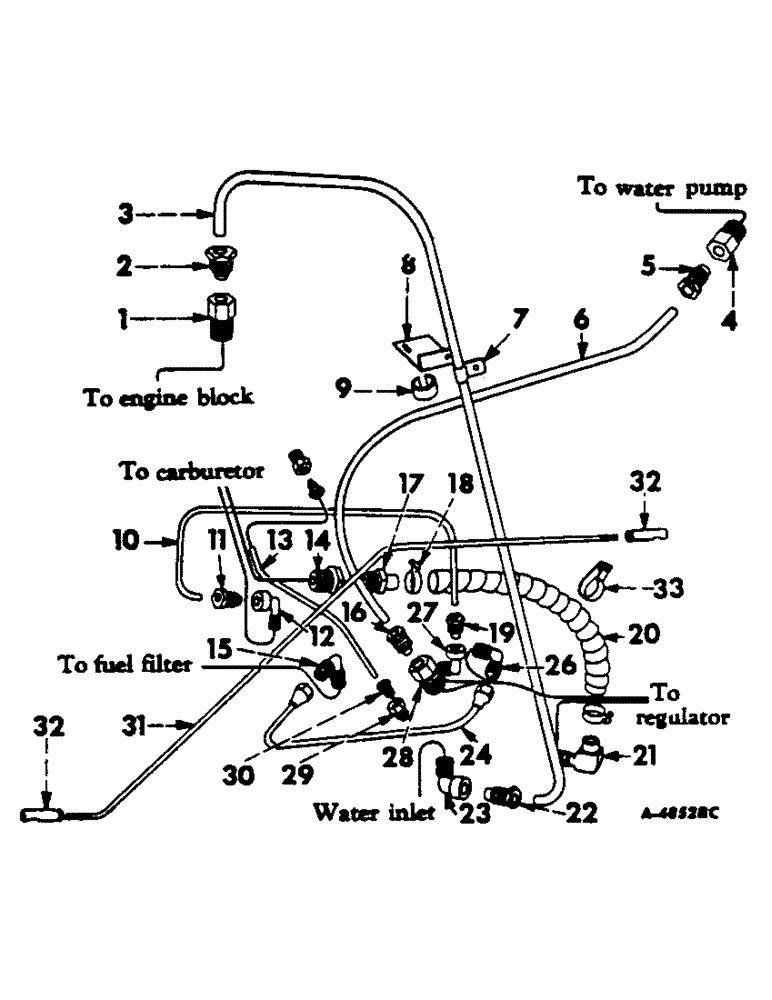

Запчасти Case IH 303 (347) - BD-220 ENGINE, 3-9/16 X 3-11/16, TUBES, CONNECTIONS AND GOVERNOR CONTROL ROD, LP GAS ENGINES (10) - ENGINE

1

18506R1

CONNECTOR, 1/2 straight, water inlet tube to engine block 1/2" NPT x 11/16"-16

1шт.

2

222-506

TUBE NUT,11/16"-16

FITTING, 1/2 water inlet tube

1шт.

3

273379R1

TUBE, water inlet

1шт.

4

18506R1

CONNECTOR, 1/2 straight, water outlet to water pump 1/2" NPT x 11/16"-16

1шт.

5

222-506

TUBE NUT,11/16"-16

FITTING, 1/2 water outlet tube

1шт.

6

273378R1

TUBE, water outlet 1" OD, 14.75, 7" Length

1шт.

7

277012R1

STRAP, water inlet tube

1шт.

144728

No. 14 x 1/2 slt-rd-hd tapping screw

1шт.

8

277011R1

BRACKET, water inlet tube

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

q

1597

BEARING CUP

13/32 x 3/4 x 16 ga washer

1шт.

9

661780R1

FELT, water inlet tube bracket

1шт.

10

277377R2

TUBE, balance

1шт.

11

19985R1

TUBE NUT,1/2"-20

FITTING, 1/2-20 hi-duty tube fitting, balance tube

1шт.

12

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

5/16 90 deg, balance tube to carburetor

1шт.

13

273376R1

TUBE, idle

1шт.

14

NLS

NO LONGER SERVICED

REDUCER, 1 x 3/4 pipe, in carburetor

1шт.

15

109563R1

ELBOW

3/8 90 deg flared, fuel inlet pipe filter

1шт.

16

222-506

TUBE NUT,11/16"-16

FITTING, 1/2 water outlet tube

1шт.

17

91882H

NIPPLE, vapor hose

1шт.

18

274086R91

HOSE CLAMP,0.94/1.63 Type F Worm

CLAMP, vapor hose

2шт.

19

19985R1

TUBE NUT,1/2"-20

FITTING, 1/2-20 hi-duty tube fitting, balance tube

1шт.

20

383082R1

HOSE, vapor

1шт.

21

160653R1

ELBOW, 3/4 x 1 vapor hose

1шт.

22

222-506

TUBE NUT,11/16"-16

FITTING, 1/2 water inlet tube

1шт.

23

68134D

ELBOW, 1/2, water inleter to regulator 90º x 1/2" NPT x 11/16"-16

1шт.

24

279103R11

PIPE W/NUTS ASSY, fuel inlet

1шт.

25

357078R1

NUT, fuel inlet pipe to fuel regulator

2шт.

26

109563R1

ELBOW

3/8 90 deg flared, fuel inlet pipe to fuel regulator

1шт.

27

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

5/16 90 deg, balance tube to regulator

1шт.

28

18506R1

CONNECTOR, 1/2 straight, water outlet to water pump 1/2" NPT x 11/16"-16

1шт.

29

36521D

CONNECTOR, 3/16 straight, Serial Range: regulator-carburetor

2шт.

30

25038HA

TUBE NUT,3/8"-24

FITTING, 3/16 idle tube

2шт.

31

275078R1

ROD, governor control

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

2шт.

32

304164R91

JOINT

BALL JOINT, governor control rod

2шт.

114492

JAM NUT,Jam, 1/4"-28, G5

2шт.

33

88223H

CLIP, vapor hose

1шт.

61387D

CLIP, choke

1шт.
