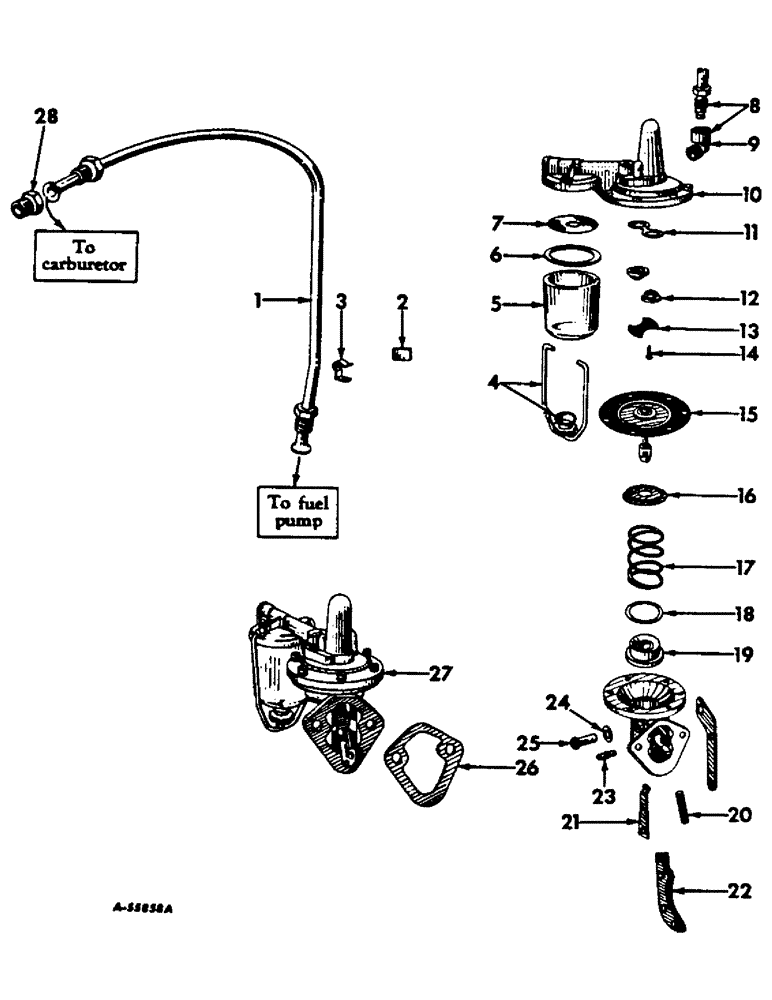

Запчасти Case IH 303 (342) - BD-220 ENGINE, 3-9/16 X 3-11/16, FUEL PUMP AND CONNECTIONS, GASOLINE ENGINES (10) - ENGINE

1

306042R11

LINE W/NUTS ASSY, fuel, Serial Range: pump-carburetor

1шт.

2

NOT USED

1шт.

3

NOT USED

1шт.

4

85864R92

BAIL AND SCREW ASSY, strainer

1шт.

5

85066R91

BOWL W/GASKET ASSY, strainer

1шт.

6

51346A

GASKET, strainer bowl

1шт.

7

23516D

SCREEN, gas strainer

1шт.

8

NOT USED

1шт.

9

189953

ELBOW

1/8-27 90 deg inverted flared tube

1шт.

10

361089R91

PLUG AND COVER ASSY, pump

1шт.

130894H

No. 10 x 5/8 slt-fil-hd mach screw

6шт.

131119

No. 10 HV lockwasher

6шт.

11

74650R1

GASKET, valve cage

1шт.

12

59084DA

CAGE ASSY, valve

1шт.

13

74649R1

PLATE, valve

1шт.

14

132696

SCREW, no. 6 x 3/8 C-Z slt-rd-hd mach

2шт.

15

74658R91

DIAPHRAGM W/PULL ROD ASSY

1шт.

16

74654R1

RETAINER, diaphragm spring

1шт.

17

74657R1

SPRING, diaphragm

1шт.

18

74655R1

SPACER, oil seal

1шт.

19

74656R1

OIL SEAL

1шт.

20

74651R1

SPRING, rocker arm

1шт.

21

74653R1

LINK

1шт.

22

74662R91

ARM ASSY, rocker

1шт.

23

PIN, priming lever (NSS)

1шт.

24

36351D

WASHER, rocker arm pin

1шт.

25

74652R1

PIN, rocker arm

1шт.

26

128868H

GASKET

mounting, fuel pump

1шт.

27

269543R92

PUMP

W/MOUNTING GASKET ASSY, fuel

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

28

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

CONNECTOR, 1/8-27 inverted flared tube

1шт.

276210R91

KIT, diaphragm repair

1шт.

276211R91

KIT, fuel pump repair

1шт.
