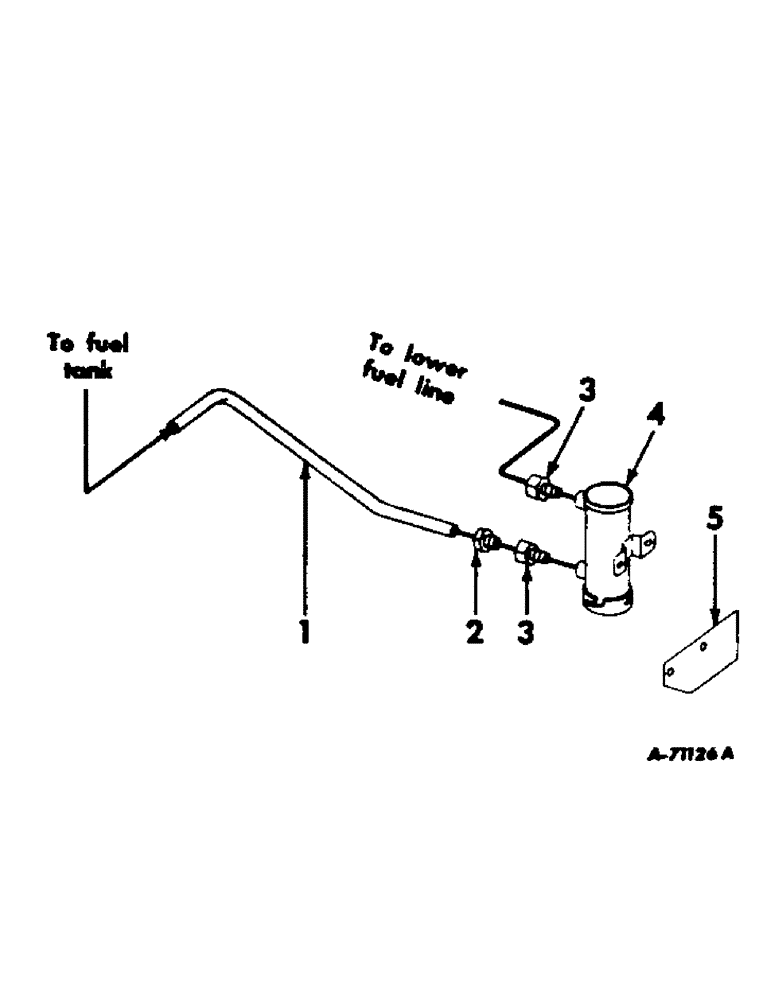

Запчасти Case IH 303 (338) - BD-220 ENGINE, 3-9/16 X 3-11/16, FUEL PUMP, LINE AND SUPPORT, BENDIX (10) - ENGINE

1

LINE, fuel pump to fuel tank, 5/16 x 14-5/8 in. long, Order one ft. increments of 995062R1 copper tubing

1шт.

2

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

1шт.

3

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, 1/2-20 hi-duty tube fitting male, fuel pump

2шт.

4

631259R91

PUMP

ASSY, fuel, For components see list of parts under details of fuel pump, Bendix

1шт.

5

629311R1

BRACKET, fuel pump

1шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 mach bolt

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
