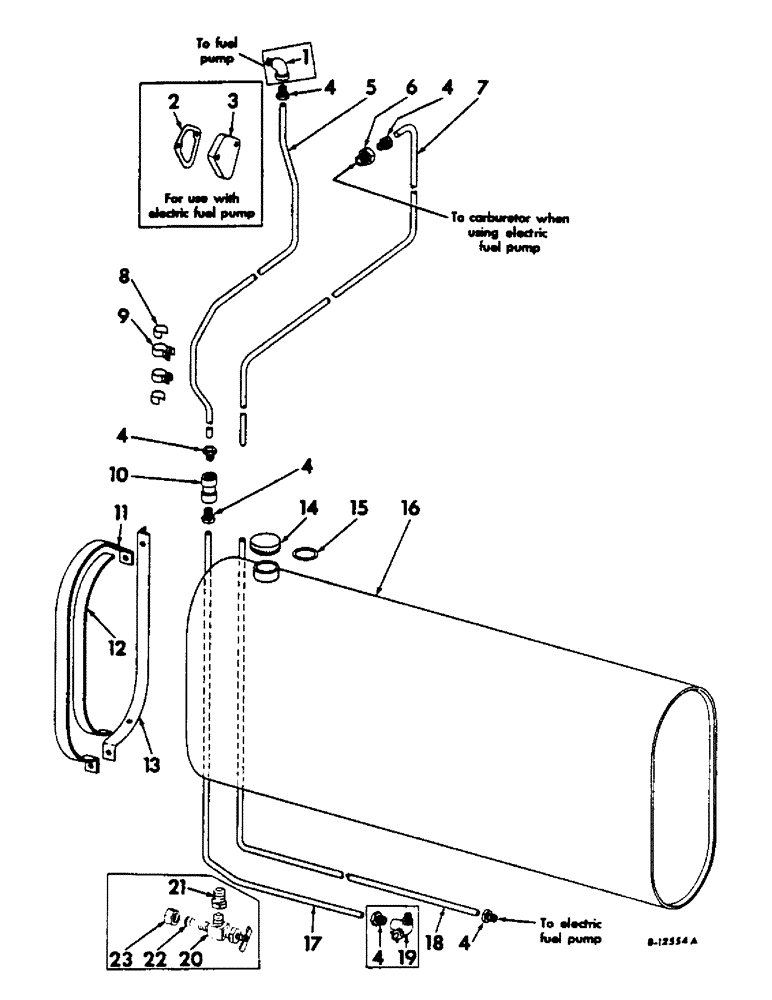

Запчасти Case IH 303 (337) - BD-220 ENGINE, 3-9/16 X 3-11/16, FUEL TANK AND LINES, GASOLINE ENGINES (10) - ENGINE

1

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

fuel line, Not for use with electric fuel pump

1шт.

2

128868H

GASKET

fuel pump mounting pad cover, For electric fuel pump

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

356243R1

COVER, fuel pump mounting pad, For electric fuel pump

1шт.

4

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting, fuel line

5шт.

5

LINE, fuel upper, Not for electric fuel pump, 5/16 x 44-7/8 in. long, Order one ft. increments of 995062R1 copper tubing

1шт.

6

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, fuel upper line, For electric fuel pump

1шт.

7

LINE, fuel upper, For electric fuel pump, 5/16 x 48 in. long, Order one ft. increments of 995062R1 copper tubing

1шт.

8

52728D

CUSHION, fuel line clip

2шт.

9

140582

CLAMP

CLIP, fuel line

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

1/4 x 1/2 washer faced screw

2шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga washer

2шт.

10

50050D

UNION, fuel line

1шт.

11

569462R2

STRAP, fuel tank support

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 mach bolt

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

569461R1

LINING, fuel tank

2шт.

13

564629R1

SUPPORT, fuel tank

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 mach bolt

4шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 mach bolt

2шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

14

23995DC

FILLER CAP

CAP W/GASKET, filler, Includes ref. no. 15

1шт.

15

23977DC

GASKET

fuel cap

1шт.

16

627277R92

TANK W/CAP ASSY, fuel, 31 gallon, Includes ref. nos. 14 and 15

1шт.

17

LINE, fuel lower, Not for electric fuel pump, 5/16 x 43-11/32 in long, Order one ft. increments of 995062R1 copper tubing

1шт.

18

LINE, fuel lower, For electric fuel pump, 5/16 x 50-3/4 in. long Order one ft. increments of 995062R1 copper tubing

1шт.

19

61650D

VALVE

fuel shut-off, 2750 & below

1шт.

20

120900

VALVE

fuel shut-off, 2751 & above

1шт.

21

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

BUSHING, reducing, 2751 & above

1шт.

22

114631

SLEEVE,Ball Type, 5/16" Tube

2751 & above

1шт.

23

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT, 5/16 ball sleeve tube, 2751 & above

1шт.
