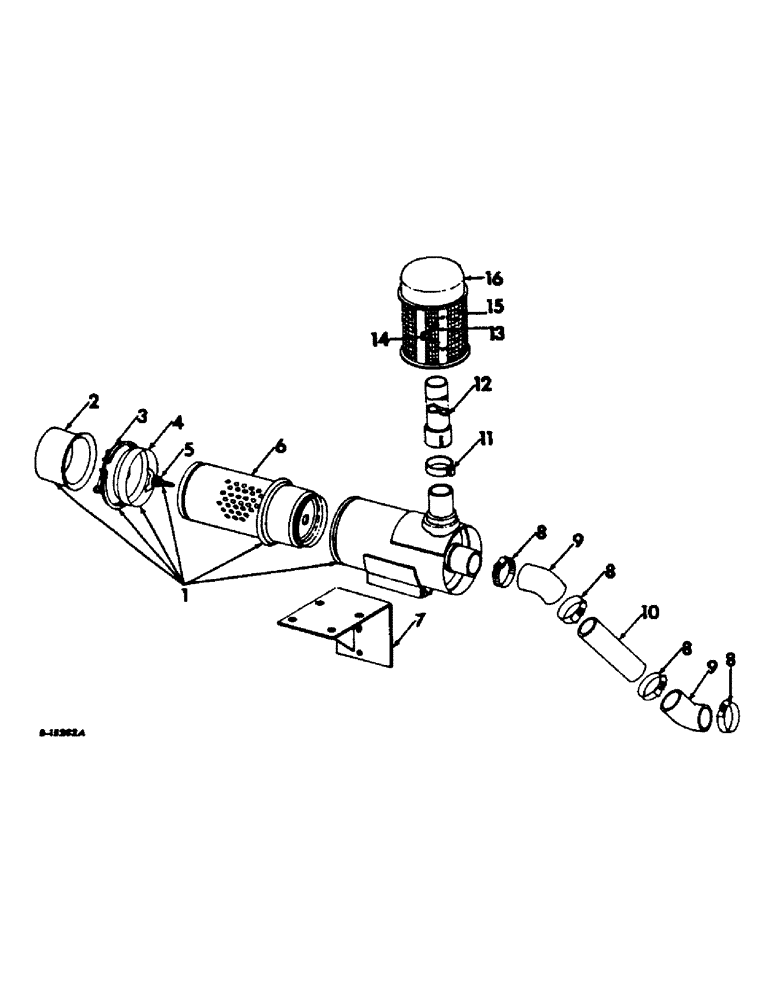

Запчасти Case IH 303 (336) - BD-220 ENGINE, 3-9/16 X 3-11/16, AIR CLEANER AND CONNECTIONS, GASOLINE ENGINES ONLY (10) - ENGINE

394908R91

PARTS ACCESSORY, dry type air cleaner

1шт.

1

387981R92

CLEANER ASSY, dry type air

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

389267R91

BOWL

CUP ASSY

1шт.

3

381339R91

CLAMP

ASSY

1шт.

4

381345R1

BAFFLE

1шт.

5

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSY

1шт.

6

384812R93

AIR CLEANER

ELEMENT ASSY

1шт.

7

387982R11

BRACKET ASSY, air cleaner

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

13/32 x /16 x .065

2шт.

8

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, air cleaner pipe elbow, 2-1/4 to 3-1/8 in.

3шт.

8

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, air cleane rpipe elbow, 2-1/16 to 3 in.

1шт.

9

377776R1

HOSE

air cleaner pipe elbow

2шт.

10

387984R1

PIPE, air cleaner

1шт.

11

379368R91

COLLAR CLAMP

CLAMP, pre-screener pipe

1шт.

12

383355R1

PIPE, pre-screener 2.5" OD, 24" Length

1шт.

13

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

14

353758R1

CLIP

screen lock spring

1шт.

15

355146R91

SCREEN

W/CLIP, 353758R1 and (2) springs, 353639R1, pre-screener

1шт.

16

354983R91

CLEANER

PRE-SCREENER W/QUICK REMOVABLE SCREEN

1шт.
