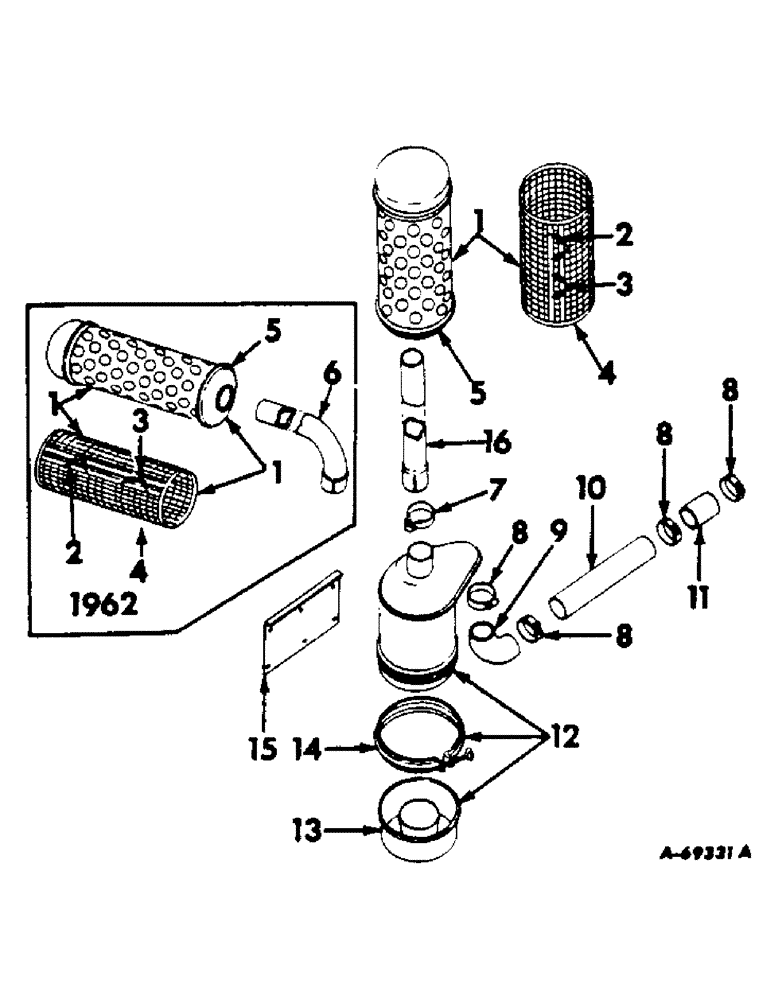

Запчасти Case IH 303 (335) - BD-220 ENGINE, 3-9/16 X 3-11/16, AIR CLEANER AND CONNECTIONS (10) - ENGINE

1

356405R91

PRE-SCREENER ASSY

1шт.

2

353639R1

VALVE SPRING

SPRING, screen lock tension

4шт.

3

353758R16

CLIP, screen lock spring

2шт.

4

355146R91

SCREEN

W/CLIPS AND SPRINGS ASSY, pre-screener

1шт.

5

356675R91

BODY ASSY, pre-screener

1шт.

6

316468R1

PIPE, pre-screener, 1962

1шт.

7

379367R91

CLAMP ASSY, pre-screener pipe

1шт.

8

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP ASSY, air cleaner pipe

4шт.

9

276161R1

HOSE

ELBOW, air cleaner pipe, gasoline

1шт.

9

380962R1

ELBOW, air cleaner pipe, LP gas

1шт.

10

276160R1

PIPE, air cleaner

1шт.

11

362759R1

HOSE, air cleaner pipe

1шт.

12

276826R91

CLEANER ASSY, air

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 nut

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

363005R91

CUP ASSY, oil

1шт.

14

277719R91

CLAMP

ASSY, oil cup retaining

1шт.

15

276159R1

SUPPORT, air cleaner

1шт.

102635

NUT,3/8"-16, G5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

383354R1

PIPE, pre-screener, 1963 & since

1шт.
