(334) - BD-220 ENGINE, 3-9/16 X 3-11/16, PRE-CLEANER, PRE-SCREENER

Запчасти Case IH 303 (334) - BD-220 ENGINE, 3-9/16 X 3-11/16, PRE-CLEANER, PRE-SCREENER (10) - ENGINE

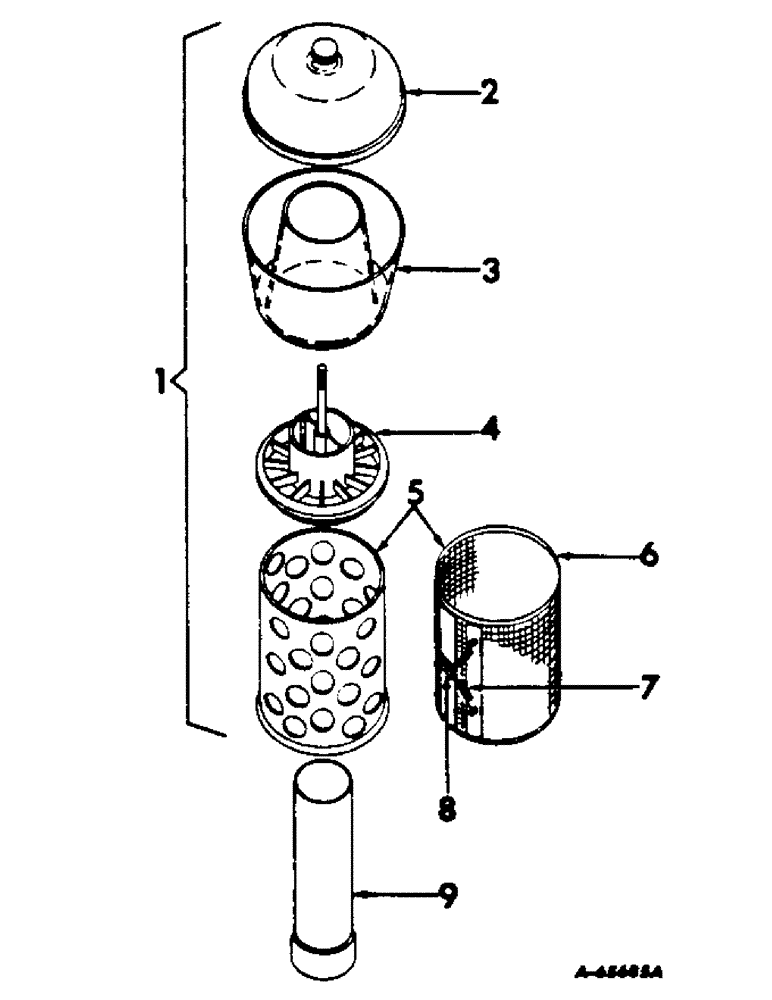

Схема запчастей Case IH 303 - (334) - BD-220 ENGINE, 3-9/16 X 3-11/16, PRE-CLEANER, PRE-SCREENER (10) - ENGINE
5
1
6
7
3
4
2
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

379670R91

CLEANER

PRE-CLEANER, pre-screener assy

1шт.

2

365412R91

COVER

ASSY, pre-cleaner

1шт.

3

365413R1

BOWL

BODY, pre-cleaner

1шт.

4

365414R91

SLEEVE

ASSY, pre-cleaner

1шт.

5

381600R91

SCREEN

PRE-SCREENER ASSY

1шт.

115988

No. 10 sq nut

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

No. 10 x 1-1/4 rd-hd mach screw

1шт.

6

378724R91

SCREEN

W/CLIP, 353758R1 and (2) springs, 353639R1 assy, pre-screener

1шт.

7

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

8

353758R1

CLIP

screen lock tension spring

1шт.

9

NOT USED

1шт.
