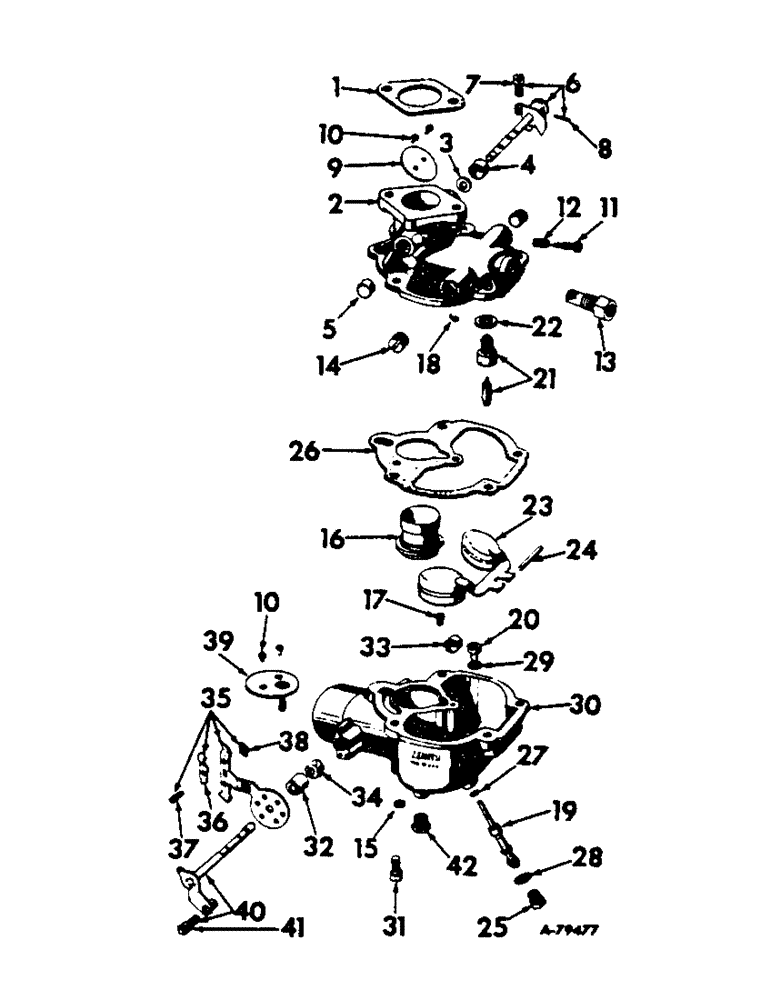

Запчасти Case IH 303 (331) - BD-220 ENGINE, 3-9/16 X 3-11/16, CARBURETOR, ZENITH MDL. 267J X 9 UPDRAFT, GAS. ENG., S/N 3653 UP (10) - ENGINE

383128R91

CARBURETOR ASSY

1шт.

1

66453H

GASKET

carburetor, Not included in carburetor assy

1шт.

2

384856R91

BODY ASSY, throttle, Consists of ref. nos. 3 thru 14

1шт.

3

368358R2

RUBBER SEAL

throttle shaft

1шт.

4

381019R1

RETAINER

throttle shaft seal

1шт.

5

99259H

PLUG

throttle shaft hole

1шт.

6

384857R91

SHAFT AND LEVER ASSY, throttle

1шт.

7

19509R1

SCREW, no. 8-36 x 5/8 C-Z slt-hex-hd mach

1шт.

8

135645H

PIN, throttle lever taper

1шт.

9

384858R1

PLATE, throttle

1шт.

10

454415

SCREW, choke & throttle plates

4шт.

11

80181R1

NEEDLE, idle adjusting

1шт.

12

30594D

SPRING, idle adjusting

1шт.

13

384859R1

SCREEN ASSY, filter

1шт.

14

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8 slt-hdls pipe

2шт.

15

384327R91

FILTER

ASSY, drip plug

1шт.

16

384861R1

VENTURI

1шт.

17

384862R1

JET, well vent

1шт.

18

384863R1

JET

idling

1шт.

19

384864R1

JET, discharge

1шт.

20

384866R1

JET

main

1шт.

21

390873R91

VALVE

ASSY, fuel

1шт.

22

12433D

WASHER

fuel valve seat

1шт.

23

381027R1

FLOAT

1шт.

24

381030R1

AXLE

float

1шт.

25

31860D

PLUG

main jet passage

1шт.

26

381032R1

GASKET

, Serial Range: body-bowl

1шт.

27

12430D

WASHER

discharge jet

1шт.

28

12433D

WASHER

passage plug

1шт.

29

12435D

SEALING WASHER

WASHER, main jet

1шт.

30

384860R91

BOWL ASSY, fuel, Consists of ref. nos. 31 thru 35, 40 and attaching parts

1шт.

31

19563R91

SCREW W/SPRING LOCKWASHER, no. 12-24 x 5/8 C-Z slt-fil-hd mach, Serial Range: body-bowl

4шт.

32

42191D

RETAINER

choke shaft packing

1шт.

33

377798R1

PLUG

choke shaft hole

1шт.

34

21210D

WASHER

choke shaft packing

1шт.

35

384868R91

BRACKET

ASSY, choke

1шт.

131958

ELBOW

SCREW, no. 8-32 x 5/16 C-Z mach

2шт.

36

369886R1

CLAMP

bracket tube

1шт.

37

19430R1

SCREW, no. 8-36 x 1/2 C-Z slt-hex-hd mach

1шт.

38

19404R1

NUT, no. 8-36 C-Z sq. mach

1шт.

39

384726R91

PLATE ASSY, choke

1шт.

40

384869R91

LEVER AND SHAFT ASSY, choke

1шт.

41

19402R1

SCREW, no. 8-36 x 7/16 C-Z slt-hex-hd mach

1шт.

42

54063D

PLUG

fuel bowl drain

1шт.

381031R91

KIT

gasket, Consists of ref. nos. 22 and 26 thru 29

1шт.

387417R91

PACKAGE, carburetor overhaul, Consists of ref. nos. 3 thru 6, 10, 11, 13, 17 thru 21, 23 and 33

1шт.
