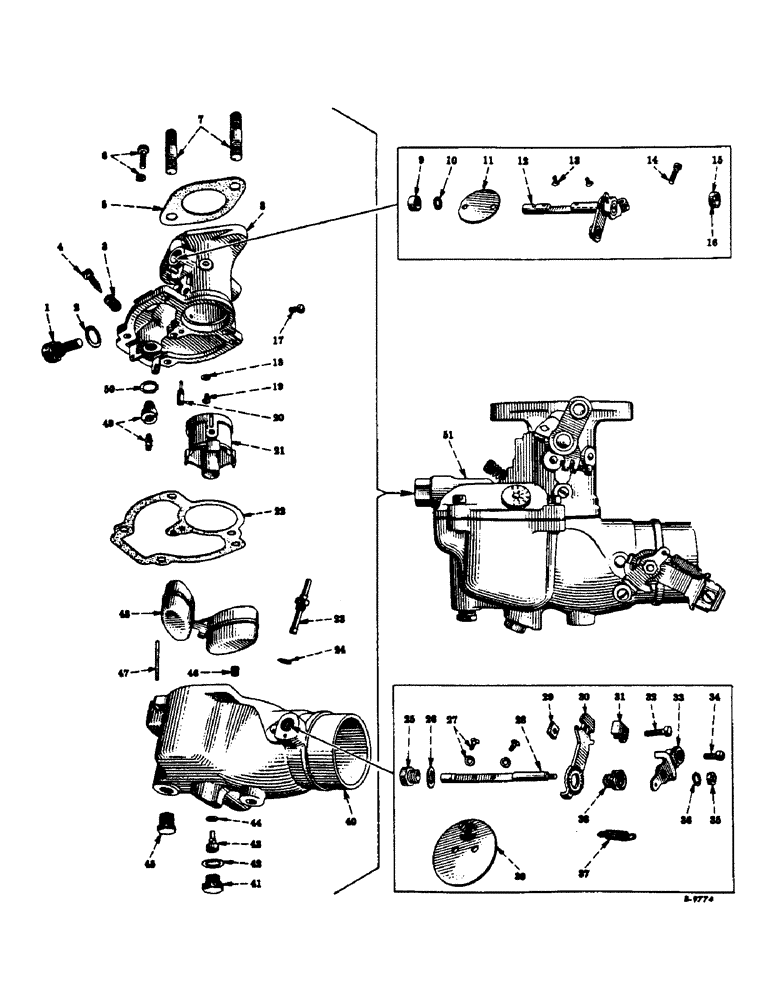

Запчасти Case IH 303 (329) - BD-220 ENGINE, 3-9/16 X 3-11/16, CARBURETOR, ZENITH MDL. 62AJ X 10 UPDRAFT, GAS. ENG., 501 TO 3652 (10) - ENGINE

1

FITTING W/SCREW ASSY, fuel inlet (NSS)

1шт.

2

WASHER, fuel filter plug fibre (NSS)

1шт.

3

SPRING, idle adjusting needle (NSS)

1шт.

4

NEEDLE, idle adjusting (NSS)

1шт.

5

66453H

GASKET

carburetor

1шт.

6

SCREW W/LOCKWASHER, bowl to body (NSS)

4шт.

7

273050R1

STUD

carburetor

2шт.

8

BODY ASSY, throttle (NSS)

1шт.

9

PLUG, throttle shaft hole (NSS)

1шт.

10

WASHER, throttle shaft thrust (NSS)

1шт.

11

PLATE, throttle (NSS)

1шт.

12

SHAFT W/LEVER AND SCREW, 255544 assy, throttle (NSS)

1шт.

13

SCREW, throttle plate (NSS)

2шт.

14

SCREW, throttle lever stop (NSS)

1шт.

15

WASHER, throttle shaft packing (NSS)

1шт.

16

RETAINER, throttle shaft packing (NSS)

1шт.

17

SCREW W/LOCKWASHER ASSY, Venturi (NSS)

1шт.

18

WASHER, fibre (NSS)

1шт.

19

ECONOMIZER, jet (NSS)

1шт.

20

JET, idle (NSS)

1шт.

21

VENTURI, Not serviced separately (NSS)

1шт.

22

GASKET, bowl (NSS)

1шт.

23

NOZZLE, discharge (NSS)

1шт.

24

WASHER, discharge jet fibre (NSS)

1шт.

25

PLUG, choke shaft hole (NSS)

1шт.

26

WASHER, choke shaft hole plug fibre (NSS)

1шт.

27

SCREW W/LOCKWASHER ASSY, choke (NSS)

2шт.

28

SHAFT, choke (NSS)

1шт.

29

NUT, choke bracket clamp screw (NSS)

1шт.

30

BRACKET, choke (NSS)

1шт.

31

CLAMP, choke bracket tube (NSS)

1шт.

32

SCREW, choke bracket tube clamping (NSS)

1шт.

33

LEVER, choke (NSS)

1шт.

34

SWIVEL, screw choke lever (NSS)

1шт.

35

NUT, choke shaft (NSS)

1шт.

36

WASHER, choke shaft nut, no. 8 internal tooth lock (NSS)

1шт.

37

SPRING, choke lever (NSS)

1шт.

38

SCREW ASSEMBLY, choke bracket (NSS)

1шт.

39

PLATE, choke (NSS)

1шт.

40

BOWL ASSY, fuel (NSS)

1шт.

41

WASHER, main jet fibre (NSS)

1шт.

42

JET, main (NSS)

1шт.

43

WASHER, main jet passage plug fibre (NSS)

1шт.

44

PLUG, main jet passage (NSS)

1шт.

45

PLUG, fuel bowl drain (NSS)

1шт.

46

JET, bleed well (NSS)

1шт.

47

AXLE, float (NSS)

1шт.

48

FLOAT (NSS)

1шт.

49

VALVE W/SEAT, fuel (NSS)

1шт.

50

WASHER, fuel valve seal fibre (NSS)

1шт.

51

276048R91

CARBURETOR ASSY, less/two studs, 277016R1

1шт.

118625

NUT

3/8-24 hex jam

2шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

353845R91

GASKET KIT

SET, carburetor, Includes ref. nos. 2, 18, 24, 26, 41, 43 and 50

1шт.

277179R91

KIT, carburetor overhaul, Includes ref. nos. 2, 4, 6, 13, 15, 16, 18, 19, 20, 23, 24, 26, 27, 41, 43, 46, 47, 49 and 50

1шт.
