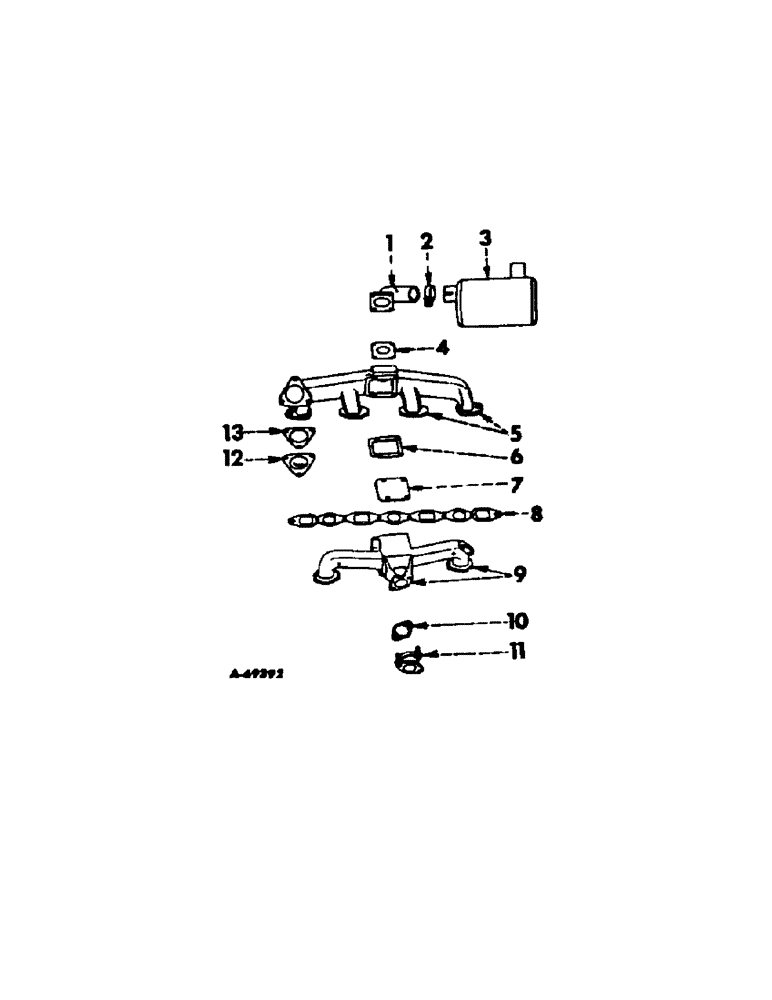

Запчасти Case IH 303 (328) - BD-220 ENGINE, 3-9/16 X 3-11/16, EXHAUST SYSTEM (10) - ENGINE

1

316383R1

ELBOW, exhaust pipe

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 cap screw

4шт.

2

357578R1

CLAMP, exhaust muffler

1шт.

102637

NUT,1/2"-13, G5

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

1/2 X 1-3/8 CPA screw

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

379369R91

MUFFLER, exhaust

1шт.

4

265555R1

GASKET

exhaust pipe elbow

1шт.

5

262507R1

MANIFOLD, exhaust

1шт.

181114

BOLT,3/8" x 1 1/4"

3/8 x 1-1/4 cap screw

6шт.

181116

SCREW,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 cap screw

2шт.

127507H

WASHER

MANIFOLD TO CYLINDER HEAD WASHER

7шт.

106446H

MANIFOLD TO CYLINDER HEAD WASHER

1шт.

6

85868R1

GASKET

intake to exhaust manifold

1шт.

7

276994R1

PLATE, exhaust manifold blanking, LP gas

1шт.

8

69752R1

GASKET

manifold and cylinder head

1шт.

9

262506R1

MANIFOLD, intake

1шт.

10

66453H

GASKET

carburetor

1шт.

11

266342R11

ADAPTER ASSY, carburetor

1шт.

118625

NUT

3/8NF jam nut

2шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

41634D

ADAPTER STUD

2шт.

12

262508R1

PLATE, exhaust manifold sealing

1шт.

118615

STUD

3/8 phosphate coated nut

3шт.

181116

SCREW,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 cap screw

3шт.

13

262509R1

GASKET

sealing plate

1шт.
