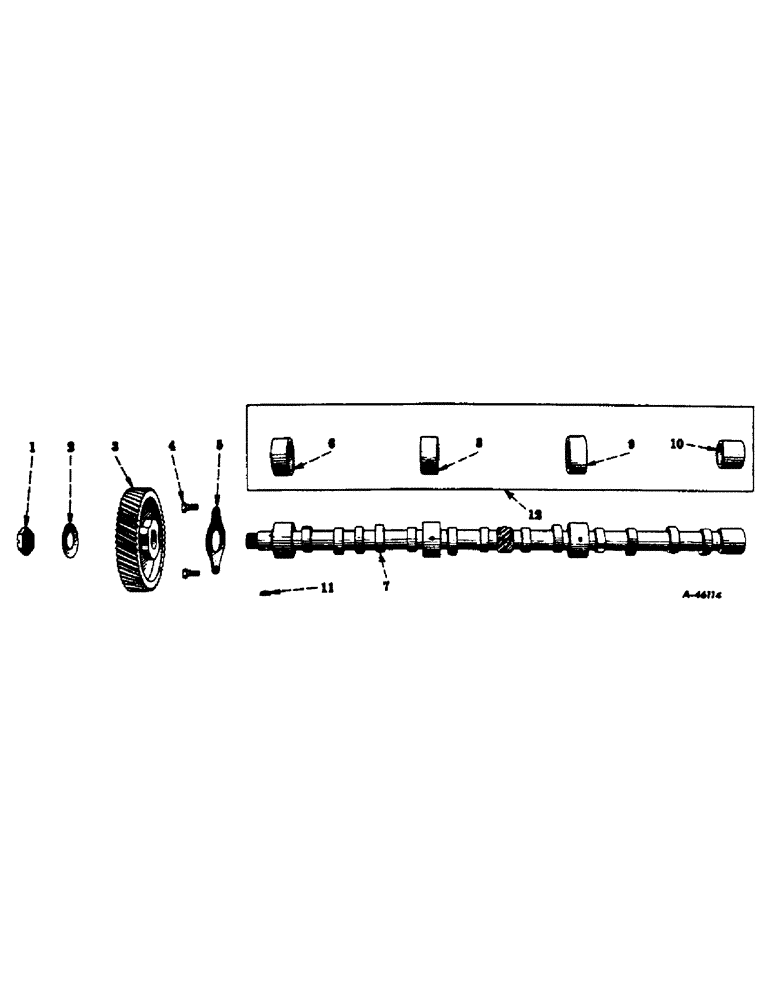

Запчасти Case IH 303 (327) - BD-220 ENGINE, 3-9/16 X 3-11/16, CAMSHAFT, BUSHINGS AND GEAR (10) - ENGINE

1

16026DB

NUT

camshaft gear

1шт.

2

16025D

SHIM

RETAINER, camshaft gear nut

1шт.

3

69490R1

GEAR, camshaft

1шт.

4

70425R1

CAPSCREW,Hex, 3/8"- 16 x 3/4"

BOLT, thrust flange

2шт.

5

35650HA

FLANGE

thrust

1шт.

6

70259R2

BUSHING

camshaft front

1шт.

7

211390R1

CAMSHAFT

1шт.

8

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

camshaft intermediate front

1шт.

9

70261R2

BUSHING,23.02mm ID x 55.92mm OD x 27.23mm L

camshaft intermediate rear

1шт.

10

70262R1

CAMSHAFT BEARING,37.69mm ID x 41.45mm OD x 33.58mm W

BUSHING, camshaft rear

1шт.

11

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

KEY, no. 91 Woodruff

1шт.

12

130476R93

BEARING SET

SET, camshaft bearing

1шт.

69682R91

GEAR SET, camshaft and crankshaft, Consists of (1) 69490R1 gear, and (1) 76978R1 gear

1шт.
