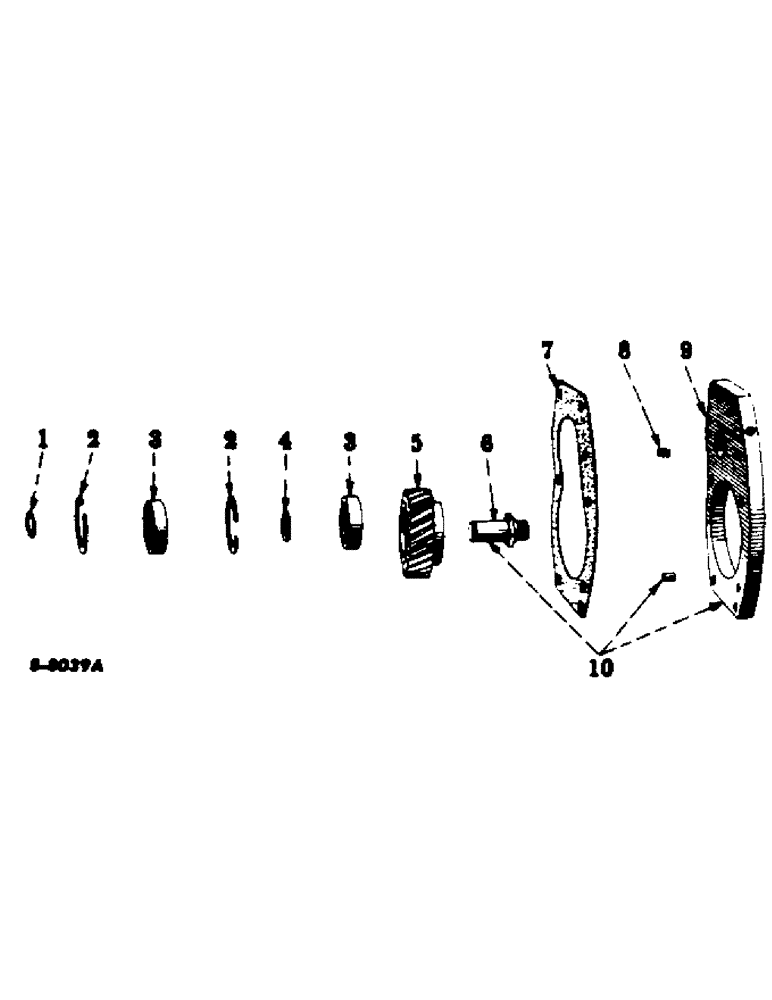

Запчасти Case IH 303 (326) - BD-220 ENGINE, 3-9/16 X 3-11/16, HYDRAULIC PUMP ADAPTER AND IDLER GEAR PARTS (10) - ENGINE

1

356729R1

RING, hyd pump idler gear hub snap

1шт.

2

356730R1

RING, hyd pump idler gear snap

2шт.

3

ST207

BEARING, BALL

2шт.

4

356728R1

SPACER, hydraulic pump idler gear

1шт.

5

356284R1

GEAR, hydraulic pump idler

1шт.

6

356286R1

SHAFT, hydraulic pump idler gear

1шт.

7

356287R1

GASKET

hydraulic pump adapter

1шт.

8

141214

HANDLE

PIN, 5/16 x 7/16 dowel

2шт.

9

356283R1

ADAPTER, hydraulic pump, Order 356283R11, ref. no. 10

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 cap screw

1шт.

NLS

NO LONGER SERVICED

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

3/8 external-tooth lockwasher

2шт.

10

356283R11

ADAPTER W/SHAFT AND PINS ASSY, hydraulic pump

1шт.
