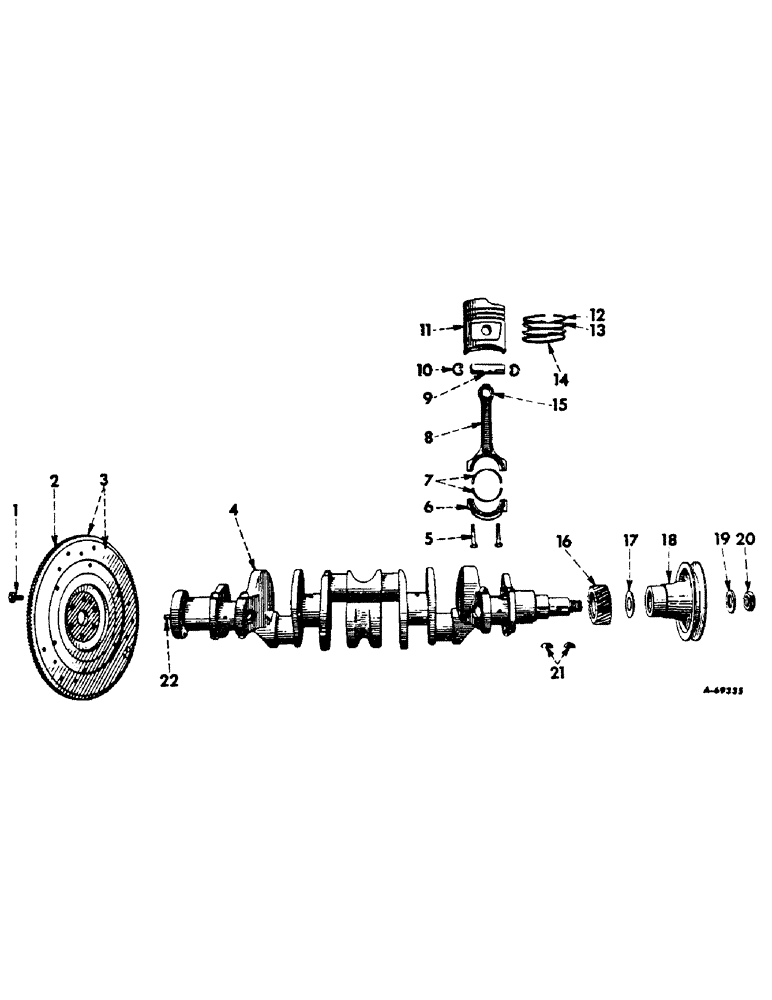

Запчасти Case IH 303 (325) - BD-220 ENGINE, 3-9/16 X 3-11/16, PISTONS, PINS, CONNECTING RODS, CRANKSHAFT AND FLYWHEEL (10) - ENGINE

1

70426R1

BOLT, flywheel

6шт.

2

95691H

GEAR

flywheel ring

1шт.

3

276043R11

FLYWHEEL ASSY

1шт.

4

382710R91

CRANKSHAFT

W/BEARING FIELD PACKAGE, standard, Consists of (6) connecting rod bearings, (4) crankshaft bearings, crankshaft and pin, 82970R1

1шт.

4

382714R91

CRANKSHAFT W/BEARINGS FIELD PACKAGE, undersize, Consists of (6) connecting rod bearings, (4) crankshaft bearings, crankshaft and pin, 82970R1

1шт.

5

70013R1

BOLT, connecting rod

12шт.

6

70101R1

CAP, connecting rod, Order 70009R21, ref. no. 8

6шт.

7

141799R41

BEARING ASSY

BEARING, connecting rod, 2 halves, standard

6шт.

7

141804R94

KIT

BEARING, connecting rod, standard, set of 6

1шт.

7

141800R41

BEARING

connecting rod, 2 halves, .002 undersize

6шт.

7

141805R94

KIT

BEARING, connecting rod, .002 undersize, set of 6

1шт.

7

155579R41

BEARING

connecting rod, 2 halves, .010 undersize

6шт.

7

155560R94

KIT

BEARING, connecting rod, .010 undersize, set of 6

1шт.

7

141801R41

BEARING, connecting rod, 2 halves, .020 undersize

6шт.

7

141806R94

BEARING, connecting rod, .020 undersize, set of 6

1шт.

7

141802R41

BEARING, connecting rod, 2 halves, .030 undersize

6шт.

7

141807R94

BEARING, connecting rod, .030 undersize, set of 6

1шт.

8

70009R21

ROD W/CAP AND BUSHING, 70012R1 assy, connecting

1шт.

9

70014R1

PIN

piston, standard

6шт.

9

70015R1

PIN, piston, .005 oversize

6шт.

9

70016R1

PIN, piston, .008 oversize

6шт.

10

19517D

SPECIAL RING

RETAINER, piston pin

12шт.

11

172421R11

PISTON W/PIN, 70014R1 and retainers, 19517D, assy, standard, LP

1шт.

11

172423R11

PISTON W/PIN, 70014R1 and retainers, 19517D, assy, .010 oversize, LP gas, gasoline, high altitude

6шт.

11

172424R11

PISTON W/PIN, 70014R1 and retainers, 19517D, assy, .020 oversize, LP gas, gasoline, high altitude

6шт.

11

172425R11

PISTON W/PIN, 70014R1 and retainers, 19517D, assy, .030 oversize, LP gas, gasoline, high altitude

6шт.

11

174426R11

PISTON W/PIN, 70014R1 and retainers, 19517D, assy, .040 oversize, LP gas, gasoline, high altitude

6шт.

11

172413R11

PISTON W/PIN, 70014R1 and retainers, 19517D, assy, standard, gasoline, standard altitude

6шт.

11

172415R11

PISTON W/PIN, 70014R1 and retainers, 19517D, assy, .010 oversize, gasoline, standard altitude

6шт.

11

172416R11

PISTON W/PIN, 70014R1 and retainers, 19517D, assy, .020 oversize, gasoline, standard altitude

6шт.

11

172417R11

PISTON W/PIN, 70014R1 and retainers, 19517D, assy, .030 oversize, gasoline, standard altitude

6шт.

11

172418R11

PISTON W/PIN, 70014R1 and retainers, 19517D, assy, .040 oversize, gasoline, standard altitude

6шт.

12

107246H

RING, compression piston, standard

6шт.

12

107248H

RING, compression piston, .020 oversize

6шт.

12

71416R1

RING, compression piston, .030 oversize

6шт.

12

71417R1

RING, compression piston, .040 oversize

6шт.

13

107249H

RING, compression piston, standard

6шт.

13

107251H

RING, compression piston, .020 oversize

6шт.

13

71419R1

RING, compression piston, .030 oversize

6шт.

13

71420R1

RING, compression piston, .040 oversize

6шт.

14

190849R91

RING, oil control piston, standard

6шт.

14

190850R91

RING, oil control piston, .020 oversize

6шт.

14

190851R91

RING, oil control piston, .030 oversize

6шт.

14

149569R91

RING, oil control piston, .040 oversize

6шт.

15

70012R1

BUSHING

connecting rod piston pin

6шт.

16

76978R1

GEAR, crankshaft

1шт.

17

308347R1

SLINGER, crankshaft oil

1шт.

18

274633R1

PULLEY, fan drive

1шт.

19

70109R1

WASHER

starting crank nut

1шт.

20

219760

BACK-UP RING

starting crank

1шт.

21

103462

KEY

no. 13 Woodruff

2шт.

22

82970R1

STUD

PIN, dowel, Serial Range: flywheel-crankshaft

1шт.

173155R91

PISTON RING SET

RING SET, piston, standard, Consists of

1шт.

107246H

RING

6шт.

107249H

RING

6шт.

190849R91

RING

6шт.

173156R91

RING SET, piston, .020 oversize, Consists of

1шт.

107248H

RING

6шт.

107249H

RING

6шт.

190850R91

RING

6шт.

173157R91

RING SET, piston, .030 oversize, Consists of

1шт.

71416R1

RING

6шт.

71419R1

RING

6шт.

155024R11

RING

6шт.

173158R91

RING SET, piston, .040 oversize, Consists of

1шт.

71417R1

RING

6шт.

71420R1

RING

6шт.

149569R91

RING

6шт.
