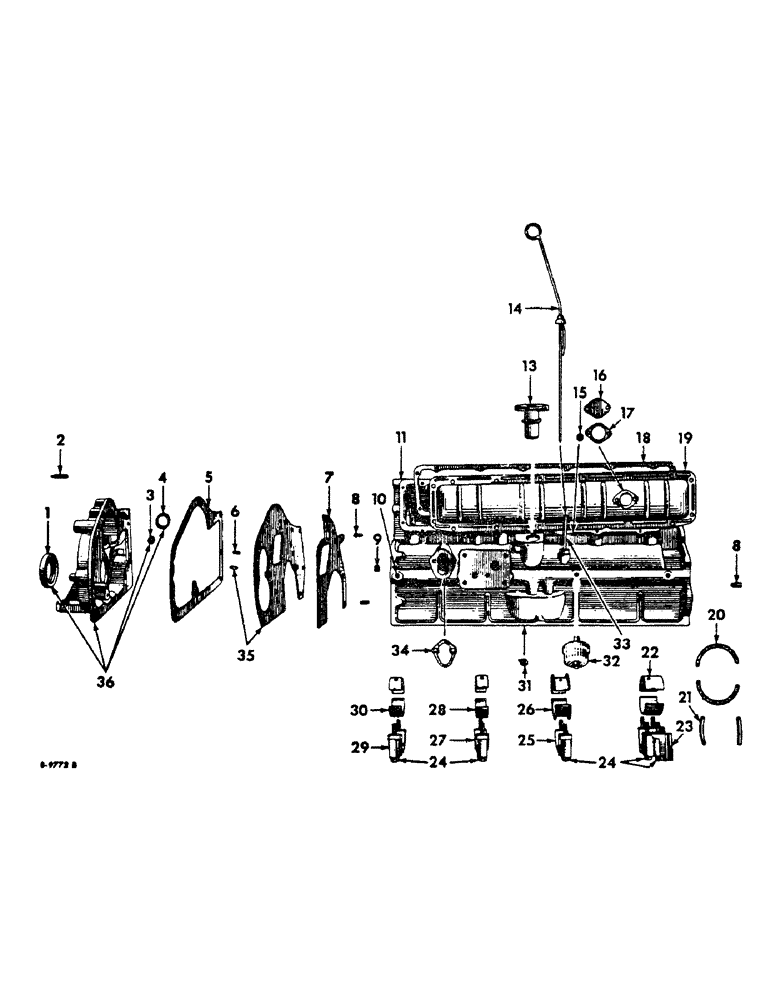

Запчасти Case IH 303 (323) - BD-220 ENGINE, 3-9/16 X 3-11/16, CRANKCASE AND RELATED PARTS (10) - ENGINE

1

317549R91

OIL SEAL,58.22mm ID x 85.27mm OD x 12.27mm Thk

crankshaft oil

1шт.

2

274634R1

INDICATOR, timing

1шт.

3

356239R1

BUSHING, governor drive shaft, small

1шт.

4

356238R1

BUSHING, governor drive shaft, large

1шт.

5

356240R2

GASKET

crankcase front cover

1шт.

6

141189

BRACKET

DOWEL, crankcase front cover

2шт.

7

356235R1

GASKET

crankcase front plate

1шт.

8

141221

DOWEL, crankcase front cover 5/16" x 7/8"

2шт.

9

3066422R1

PLUG

3/8 csk-hd pipe

2шт.

10

134676R1

PLUG, 1/8 slt-hdls pipe

1шт.

11

316281R11

CRANKCASE ASSY, Composed of

1шт.

356241R1

ADAPTER

1шт.

70133R1

BOLT

BOLT

2шт.

108118R1

BOLT

8шт.

130476R93

BEARING SET

BUSHING SET

1шт.

70103R2

CAP

1шт.

70104R2

CAP

1шт.

70105R2

CAP

1шт.

316276R1

CAP

1шт.

316281R1

CRANKCASE (NSS)

1шт.

141221

DOWEL 5/16" x 7/8"

2шт.

98375H

PLUG

1шт.

70128R1

PLUG,Cup, 1 5/8"

6шт.

70129R1

PLUG,Cup, 2"

2шт.

3066422R1

PLUG

2шт.

444852

TERMINAL CONNECTOR,16 - 20mm

PLUG

1шт.

134676R1

PLUG

1шт.

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

10шт.

70128R1

PLUG,Cup, 1 5/8"

core hole

6шт.

70129R1

PLUG,Cup, 2"

core hole

2шт.

12

NOT USED

1шт.

13

356241R1

ADAPTER, distributor mounting

1шт.

14

276985R91

GAGE ASSY, oil level

1шт.

15

NOT USED

1шт.

16

356242R1

COVER, breather hole

1шт.

375612R91

CAPSCREW,1/4" - 20 x 1/2"

1/4 x 1/2 slt-rd-hd mach screw

2шт.

17

369981R1

GASKET

breather hole cover

1шт.

18

369982R1

GASKET

push rod cover

1шт.

19

69734R11

COVER ASSY, push rod

1шт.

375612R91

CAPSCREW,1/4" - 20 x 1/2"

1/4 x 1/2 slt-rd-hd mach screw

16шт.

20

393180R91

SEAL

OIL SEAL, crankshaft rear bearing cap, one piece

1шт.

21

863756R1

SEAL

PACKING, crankshaft rear bearing cap

1шт.

22

233253R91

BEARING

ASSY, crankshaft rear, 2 halves, standard

1шт.

22

233257R91

BEARING ASSY, crankshaft rear, 2 halves, .002 undersize

1шт.

22

233261R91

BEARING ASSY, crankshaft rear, 2 halves, .010 undersize

1шт.

22

233265R91

BEARING ASSY, crankshaft rear, 2 halves, .020 undersize

1шт.

22

233269R91

BEARING ASSY, crankshaft rear, 2 halves, .030 undersize

1шт.

23

316276R1

CAP, crankshaft rear bearing

1шт.

24

70133R1

BOLT

BOLT, crankshaft bearing cap

10шт.

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

BEARING CAP BOLT WAHER

10шт.

25

70105R2

CAP, crankshaft rear intermediate bearing

1шт.

26

233252R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft rear, intermediate, 2 halves, standard

1шт.

26

233256R91

BEARING ASSY, crankshaft rear, intermediate, 2 halves, .002 undersize

1шт.

26

233260R91

BEARING ASSY, crankshaft rear, intermediate, 2 halves, .010 undersize

1шт.

26

233264R91

BEARING ASSY, crankshaft rear, intermediate, 2 halves, .020 undersize

1шт.

26

233268R91

BEARING ASSY, crankshaft rear, intermediate, 2 halves, .030 undersize

1шт.

27

70104R2

CAP, crankshaft front intermediate bearing

1шт.

28

233251R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front, intermediate, 2 halves, standard

1шт.

28

233255R91

BEARING ASSY, crankshaft front, intermediate, 2 halves, .002 undersize

1шт.

28

233259R91

BEARING ASSY, crankshaft front, intermediate, 2 halves, .010 undersize

1шт.

28

233263R91

BEARING ASSY, crankshaft front, intermediate, 2 halves, .020 undersize

1шт.

28

233267R91

BEARING ASSY, crankshaft front, intermediate, 2 halves, .030 undersize

1шт.

29

70103R2

CAP, crankshaft front bearing

1шт.

30

233250R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front, 2 halves, standard

1шт.

30

233254R91

BEARING ASSY, crankshaft front, 2 halves, .002 undersize

1шт.

30

233258R91

BEARING ASSY, crankshaft front, 2 halves, .010 undersize

1шт.

30

233262R91

BEARING ASSY, crankshaft front, 2 halves, .020 undersize

1шт.

30

233266R91

BEARING ASSY, crankshaft front, 2 halves, .030 undersize

1шт.

31

144569

COCK, DRAIN

VALVE, water drain

1шт.

32

317551R91

SENDING UNIT, oil pressure

1шт.

33

NOT USED

1шт.

34

128868H

GASKET

fuel pump opening cover, LP gas engine

1шт.

35

356234R21

PLATE ASSY crankcase front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

356236R21

COVER ASSY, crankcase front

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 cap screw

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

233274R91

BEARING SET, crankshaft, standard, Consists of

1шт.

233250R91

CRANKSHAFT BEARING

BEARING

1шт.

233251R91

CRANKSHAFT BEARING

BEARING

1шт.

233252R91

CRANKSHAFT BEARING

BEARING

1шт.

233253R91

BEARING

1шт.

233275R91

BEARING SET, cranking, .002 undersize, Consists of

1шт.

233254R91

BEARING

1шт.

233255R91

BEARING

1шт.

233256R91

BEARING

1шт.

233257R91

BEARING

1шт.

233276R91

BEARING SET, crankshaft, .010 undersize, Consists of

1шт.

233258R91

BEARING

1шт.

233259R91

BEARING

1шт.

233260R91

BEARING

1шт.

233261R91

BEARING

1шт.

233277R91

BEARING SET, crankshaft, .020 undersize, Consists of

1шт.

233262R91

BEARING

1шт.

233263R91

BEARING

1шт.

233264R91

BEARING

1шт.

233265R91

BEARING

1шт.

233278R91

BEARING SET, crankshaft, .030 undersize, Consists of

1шт.

233266R91

BEARING

1шт.

233267R91

BEARING

1шт.

233268R91

BEARING

1шт.

233269R91

BEARING

1шт.

356243R1

COVER, fuel pump pad, LP gas engine

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
